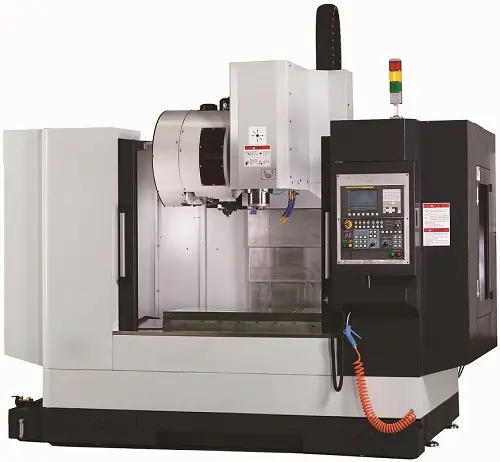

Technical parameters of VMC1300 CNC Vertical Machining Center
Equipments
Optionals
Features
■ Cast iron body made of quality "MEEHANITE" cast iron.
■ Linear guideway on X and Y axes, box way on Z axis.
■ Precision ground pre-tensed ball screws.
■ Standard with bamboo hat type tool magazine.
■ Automatic central lubrication.
■ All axes equipped with ball screws.
The term “machining center” describes almost any CNC milling and drilling machine that includes an automatic toolchanger and a table that clamps the workpiece in place. On a machining center, the tool rotates, but the work does not. The orientation of the spindle is the most fundamental defining characteristic of a machining center. Vertical machining centers generally favor precision while horizontal machining centers generally favor production—but these are loose generalizations, and plenty of machining centers break out of them. Another common machining center type is the five-axis machining center, which is able to pivot the tool and/or the part in order to mill and drill at various orientations.
Vertical Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a workpiece.
While FORTUNE PACIFIC vertical machining centers range in size and capacity, FORTUNE PACIFIC design each one with quality, reliability, ease of operation and safety in mind. Furthermore, thanks to our Production-On-Demand manufacturing philosophy, all of our vertical machining centers incorporate the latest, most advanced milling technology for boosting productivity and growing your business.
With the latest verson in CNC milling machines, we offer customers high precision, complex parts with exceptional throughput and short leadtimes. Our equipment ranges from simple 3-axis vertical machining centers to sophisticated 5-axis machining centres. We can handle parts envelope in a wide range of materials from aluminum to high nickel alloys.
| Items | VMC1300 |
| Worktable | |
| Worktable (Length× Width) | 1500x700mm |
| Max. load capacity | 1000kg |
| T slot (No. x width x distance) | 5x22mmx135mm |
| Travel (X/Y/Z) | 1300/700/700mm |
| Spindle nose to table | 160-860mm |
| Spindle middle to column surface | 760mm |
| Spindle | |
| Spindle speed | 40~8000rpm |
| Spindle motor | 11kW |
| Spindle output torque (Max.) | 52.5/95.5Nm |
| Spindle taper | BT40 |
| Feed | |
| Rapid feed speed(X axis) | 24m/min |
| Rapid feed speed(Y axis) | 24m/min |
| Rapid feed speed(Z axis) | 18m/min |
| Cutting feed speed (X/Y/Z) | 1~10000mm/min |
| Feed motor (X/Y/Z) | 3/3/3kW |
| Tool | |
| Tool magazine type | Arm type |
| Tool magazine capacity | 24T |
| Max. Tool dia. (full/empty) | 80/150 |
| Max. Tool length/weight | 300mm/7kg |
| Tool changing time (tool to tool/cut to cut) | 1.55/3.8s |
| Accuracy | |
| Positioning accuracy (X/Y/Z axis) | ±0.005/300 JIS |
| Repeatability (X/Y/Z-axis) | ±0.003 JIS |
| Other | |
| Machine dimension(L x W x H) | 3700×2500×3000mm |
| Net weight | 9500kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i MF system | |
| 01.02 | Taiwan spindle BT40-10000RPM (highest speed 8000rpm) | |
| 01.03 | Taiwan or Germany ball screws | |
| 01.04 | X,Y axis Taiwan or Germany linear guide ways | |
| 01.05 | Z axis Box guide ways | |
| 01.06 | Taiwan arm type tool magazine with 24 tools | |
| 01.07 | Spindle blowing chip removal system | |
| 01.08 | Spindle air curtain protection | |
| 01.09 | Taiwan or Germany bearings | |
| 01.10 | Auto centralized lubrication system | |
| 01.11 | Rigid tapping | |
| 01.12 | Coolant system | |
| 01.13 | Electrical hand wheel | |
| 01.14 | Working lamp | |
| 01.15 | RS232 interface | |
| 01.16 | Alarm light | |
| 01.17 | DNC online processing | |
| 01.18 | Schneider electric | |
| 01.19 | Heat exchanger |
| Item 02 | Descriptions | |
| 02.01 | SIEMENS 828D basic control L | |
| 02.02 | The 4th axis rotary table 250mm with manual tail stock | |
| 02.03 | Chain type chip removal system with flushing | |
| 02.04 | Screw type chip removal system with flushing | |
| 02.05 | Renishaw tool setting probe TS27R | |
| 02.06 | Coolant through spindle | |
| 02.07 | BT40 direct connection spindle 10000rpm(highest speed 8000rpm) |
■ Cast iron body made of quality "MEEHANITE" cast iron.
■ Linear guideway on X and Y axes, box way on Z axis.
■ Precision ground pre-tensed ball screws.
■ Standard with bamboo hat type tool magazine.
■ Automatic central lubrication.
■ All axes equipped with ball screws.
The term “machining center” describes almost any CNC milling and drilling machine that includes an automatic toolchanger and a table that clamps the workpiece in place. On a machining center, the tool rotates, but the work does not. The orientation of the spindle is the most fundamental defining characteristic of a machining center. Vertical machining centers generally favor precision while horizontal machining centers generally favor production—but these are loose generalizations, and plenty of machining centers break out of them. Another common machining center type is the five-axis machining center, which is able to pivot the tool and/or the part in order to mill and drill at various orientations.
Vertical Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a workpiece.
While FORTUNE PACIFIC vertical machining centers range in size and capacity, FORTUNE PACIFIC design each one with quality, reliability, ease of operation and safety in mind. Furthermore, thanks to our Production-On-Demand manufacturing philosophy, all of our vertical machining centers incorporate the latest, most advanced milling technology for boosting productivity and growing your business.
With the latest verson in CNC milling machines, we offer customers high precision, complex parts with exceptional throughput and short leadtimes. Our equipment ranges from simple 3-axis vertical machining centers to sophisticated 5-axis machining centres. We can handle parts envelope in a wide range of materials from aluminum to high nickel alloys.
Equipments
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i MF system | |
| 01.02 | Taiwan spindle BT40-10000RPM (highest speed 8000rpm) | |
| 01.03 | Taiwan or Germany ball screws | |
| 01.04 | X,Y axis Taiwan or Germany linear guide ways | |
| 01.05 | Z axis Box guide ways | |
| 01.06 | Taiwan arm type tool magazine with 24 tools | |
| 01.07 | Spindle blowing chip removal system | |
| 01.08 | Spindle air curtain protection | |
| 01.09 | Taiwan or Germany bearings | |
| 01.10 | Auto centralized lubrication system | |
| 01.11 | Rigid tapping | |
| 01.12 | Coolant system | |
| 01.13 | Electrical hand wheel | |
| 01.14 | Working lamp | |
| 01.15 | RS232 interface | |
| 01.16 | Alarm light | |
| 01.17 | DNC online processing | |
| 01.18 | Schneider electric | |
| 01.19 | Heat exchanger |
Technical parameters of VMC1300 CNC Vertical Machining Center
| Items | VMC1300 |
| Worktable | |
| Worktable (Length× Width) | 1500x700mm |
| Max. load capacity | 1000kg |
| T slot (No. x width x distance) | 5x22mmx135mm |
| Travel (X/Y/Z) | 1300/700/700mm |
| Spindle nose to table | 160-860mm |
| Spindle middle to column surface | 760mm |
| Spindle | |
| Spindle speed | 40~8000rpm |
| Spindle motor | 11kW |
| Spindle output torque (Max.) | 52.5/95.5Nm |
| Spindle taper | BT40 |
| Feed | |
| Rapid feed speed(X axis) | 24m/min |
| Rapid feed speed(Y axis) | 24m/min |
| Rapid feed speed(Z axis) | 18m/min |
| Cutting feed speed (X/Y/Z) | 1~10000mm/min |
| Feed motor (X/Y/Z) | 3/3/3kW |
| Tool | |
| Tool magazine type | Arm type |
| Tool magazine capacity | 24T |
| Max. Tool dia. (full/empty) | 80/150 |
| Max. Tool length/weight | 300mm/7kg |
| Tool changing time (tool to tool/cut to cut) | 1.55/3.8s |
| Accuracy | |
| Positioning accuracy (X/Y/Z axis) | ±0.005/300 JIS |
| Repeatability (X/Y/Z-axis) | ±0.003 JIS |
| Other | |
| Machine dimension(L x W x H) | 3700×2500×3000mm |
| Net weight | 9500kg |
Optionals
| Item 02 | Descriptions | |
| 02.01 | SIEMENS 828D basic control L | |
| 02.02 | The 4th axis rotary table 250mm with manual tail stock | |
| 02.03 | Chain type chip removal system with flushing | |
| 02.04 | Screw type chip removal system with flushing | |
| 02.05 | Renishaw tool setting probe TS27R | |
| 02.06 | Coolant through spindle | |
| 02.07 | BT40 direct connection spindle 10000rpm(highest speed 8000rpm) |
