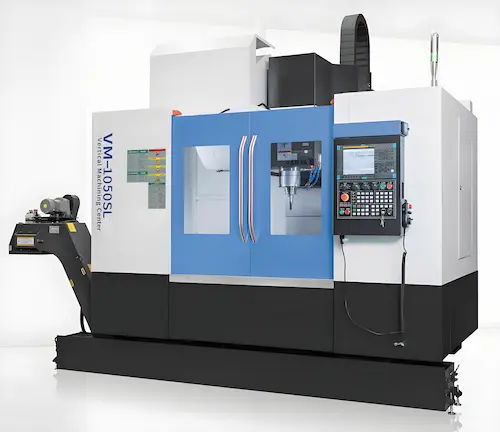

| Item | VM1050SL |
| Capacity | |
| X axis travel | 850mm |
| Y axis travel | 520mm |
| Z axis travel | 560mm |
| Table size | 1000x520mm |
| Table surface to floor | 960mm |
| Table Max loading weight | 650kg |
| T slot (No. / Width / Distance) | 5/18mm/100mm |
| Spindle | |
| Spindle nose to table | 120-680mm |
| Spindle center to Z axis | 580mm |
| Spindle type | BT40 |
| Spindle speed | 12000rpm |
| Spindle motor | 7.5/11kW |
| Motion | |
| X axis rapid travel | 48m/min |
| Y axis rapid travel | 48m/min |
| Z axis rapid travel | 48m/min |
| Cutting speed | 15000mm/min |
| Positioning accuracy (Full stroke) XYZ | 0.008mm |
| Repeatability XYZ | 0.005mm |
| Tool magazine | |
| Number of tools | 24PC |
| Tool shank type | BT40 |
| Maximum tool diameter/length/weight | 80mm/300mm/8kg |
| Others | |
| Power | 25kVA |
| Water tank | 300L |
| Machine size | 2530x2900x2700mm |
| Weight | 5500kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC 0i MF 3B Plus CNC system, 2MB system memory, 7.5/11KW spindle motor | |
| 01.02 | 12000rpm direct drive spindle, BT40 | |
| 01.03 | 24T tools magazine | |
| 01.04 | Automatic chip removal machine + car | |
| 01.05 | Air conditioner of electric cabinet | |
| 01.06 | Machine body washing system | |
| 01.07 | Auto oil lubrication system | |
| 01.08 | Tri-color light | |
| 01.09 | Air gun + water gun | |
| 01.10 | Lighting lamp | |
| 01.11 | Full enclosure splash guard | |
| 01.12 | Telescopic covers (3 axis) | |
| 01.13 | Standard accessories (refer to packing list) | |
| 01.14 | Technical documents (refer to packing list) | |
| 01.15 | Basal installation kit (refer to packing list) | |
| 01.16 | Sea-worthy package |
| Item 02 | Descriptions | Note |
| 02.01 | SIEMENS 828D 240 CONTROLLER | 10 INCH SCREEN |
| 02.02 | SIEMENS 828D 260 CONTROLLER | 10 INCH SCREEN |
| 02.03 | SIEMENS 828D 280 CONTROLLER | 10 INCH SCREEN |
| 02.04 | SIEMENS WITH 15INCH TOUCH CREEEN | Additional |
| 02.05 | SHOP MILL | |
| 02.06 | FANUC OI MF 1 WITH BETA MOTOR 7.5/11KW | |
| 02.07 | FANUC OI MF1 WITH ALPHA MOTOR | |
| 02.08 | AICC2 + NANO SMOOTHING | Only available on MF1 |
| 02.09 | AICC2 400 BLOCK | Only available on MF1 |
| 02.10 | PART PROGRAM STORAGE 2MB | Only available on MF1 |
| 02.11 | G68.2 | Only available on MF1 |
| 02.12 | MANUAL GUIDE 0I | For MF5 |
| 02.13 | MANUAL GUIDE I | Only available on MF1 |
| 02.14 | DATA SERVE 2GB | Only available on MF1 |
| 02.15 | FANUC 15 inch Non-touch screen | Only available on MF1 |
| 02.16 | FANUC 15 inch Touch screen | Only available on MF1 |
| 02.17 | AUTO WORKPIECE MEASUREMENT, OMP60 | |
| 02.18 | AUTO TOOL MEASUREMENT RENISHAW, TS27R | |
| 02.19 | M30 AUTO POWER OFF | |
| 02.20 | BBT40 | |
| 02.21 | SK 40 (LONG DELIVERY TIME) | |
| 02.22 | CAT 40 (LONG DELIVERY TIME) | |
| 02.23 | CTS 20 bar | |
| 02.24 | CTS 30 /50 bar | |
| 02.25 | 3 AXIS LINEAR SCALE | |
| 02.26 | Column height increase 200mm | Machine cover will be changed too |
| 02.27 | 4TH AXIS INTERFACE | |
| 02.28 | SCRAPING CHIP CONVEYOR FOR ALUMINUMS CUTTING | |
| 02.29 | OIL MIST COLLECTOR | |
| 02.30 | 30 TOOLS MAGAZINE VM740 | |
| 02.31 | AUTO-DOOR (PNEUMATIC CONTROL) | |
| 02.32 | 2 YEAR FANUC WARRANTY | |
| 02.33 | 2 YEAR SIEMENS WARRANTY | |
| 02.34 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.35 | AUTO CHIP CONVEYOR | |
| 02.36 | PULLING STUD | |
| 02.37 | AC of Cabinet, coolant gun, door lock | |
| 02.38 | Increase spindle motor to 15/11kw |
| 1. FANUC CNC system | |||||
| ● Standard ○ Optional X N/A | |||||
| No. | Item | Spec. | 0I-MF Plus | ||
| Type 1 | Type 5 | ||||
| 1 | Controlled axis | Controlled axes | 5 | 5 | |
| 2 | Additional controlled axes | 7 | 6 | ||
| 3 | Least command increment | 0.001 mm / 0.0001" | ● | ● | |
| 4 | Least input increment | 0.001 mm / 0.0001" | ● | ● | |
| 5 | Interpolation type pitch error compensation | ● | ● | ||
| 6 | Interpolation & Feed Function | 2nd reference point return | G30 | ● | ● |
| 7 | 3rd / 4th reference return | ● | ● | ||
| 8 | Inverse time feed | ● | X | ||
| 9 | Cylinderical interpolation | G07.1 | ● | ○ | |
| 10 | Bell-type acceleration/deceleration before look ahead interpolation |
● | ● | ||
| 11 | Automatic corner override | G62 | ● | ● | |
| 12 | Automatic corner deceleration | ● | ● | ||
| 13 | Manual handle feed | Max. 3unit | ● | ● | |
| 14 | Handle interruption | ● | ● | ||
| 15 | Manual handle retrace | ● | ● | ||
| 16 | Nano smoothing | AI contour control II is required. | ○ | X | |
| 17 | AICC I | 40 BLOCK | X | ● | |
| 18 | AICC II | 200 BLOCK | ● | X | |
| 19 | AICC II(Preview block number increase) | 400 BLOCK(Special hardware and AI contour control II) |
○ | X | |
| 20 | Spindle & M code Function |
M- code function | ● | ● | |
| 21 | Retraction for rigid tapping | ● | ● | ||
| 22 | Rigid tapping | G84, G74 | ● | ● | |
| 23 | Tool Function | Number of tool offsets | 400 | 400 ea | 400 ea |
| 24 | Tool nose radius compensation | G40, G41, G42 | ● | ● | |
| 25 | Tool length compensation | G43, G44, G49 | ● | ● | |
| 26 | Tool life management | ● | ● | ||
| 27 | Tool offset | G45 - G48 | ● | ● | |
| 28 | Programming & Editing Function | Custom macro | ● | ● | |
| 29 | Macro executor | ● | ● | ||
| 30 | Extended part program editing | ● | ● | ||
| 31 | Part program storage | 2MB(5120m) | ● | ● | |
| 32 | Inch/metric conversion | G20 / G21 | ● | ● | |
| 33 | Number of Registerable programs | 400 ea | 400 ea | 400 ea | |
| 34 | Number of Registerable programs | 1000 ea | ○ | ○ | |
| 35 | Optional block skip | 9 BLOCK | ● | ○ | |
| 36 | Optional stop | M01 | ● | ● | |
| 37 | Program file name | 32 characters | ● | ● | |
| 38 | Sequence number | N 8-digit | N8 digit | N8 digit | |
| 39 | Playback function | ● | ● | ||
| 40 | Addition of workpiece coordinate system | G54.1 P1 - 48 (48 pairs) | 48 pairs | 48 pairs | |
| 41 | Addition of workpiece coordinate system | G54.1 P1 - 300 (300 pairs) | ○ | ○ | |
| 42 | OTHER FUNCTIONS (Operation, setting & Display, etc) |
Embeded Ethernet | ● | ● | |
| 43 | Graphic display | Tool path drawing | ● | ● | |
| 44 | Loadmeter display | ● | ● | ||
| 45 | Memory card interface | ● | ● | ||
| 46 | USB memory interface | Only Data Read & Write | ● | ● | |
| 47 | Operation history display | ● | ● | ||
| 48 | DNC operation with memory card | ● | ● | ||
| 49 | Optional angle chamfering / corner R | ● | ● | ||
| 50 | Run hour and part number display | ● | ● | ||
| 51 | High speed skip function | ● | ● | ||
| 52 | Polar coordinate command | G15 / G16 | ● | ● | |
| 53 | Programmable mirror image | G50.1 / G51.1 | ● | ● | |
| 54 | Scaling | G50, G51 | ● | ● | |
| 55 | Single direction positioning | G60 | ● | ● | |
| 56 | Pattern data input | ● | ○ | ||
| 57 | Jerk control | AI contour control II is required. | ○ | X | |
| 58 | Fast Data server with1 GB PCMCIA card | ○ | ○ | ||
| 59 | Fast Ethernet | ○ | ○ | ||
| 60 | 3-dimensional coordinate conversion | ○ | X | ||
| 61 | Figure copying | G72.1, G72.2 | ○ | ○ | |
| 62 | Machining time stamp function | ○ | ○ | ||
| 63 | Manual Guide I with 10.4" Color TFT | ○ | ○ | ||
| 64 | Dynamic graphic display (with 10.4" screen) | ● | ● | ||
| ● Standard ○ Optional X N/A | ||||||
| No. | Item | Spec. | S828D | |||
| SW24x | SW26x | SW28x | ||||
| 1 | Controlled axis | Controlled axes | 3 axes | X, Y, Z | X, Y, Z | X, Y, Z |
| 2 | Additional controlled axes | 5 | 6+2 | 8+2 | ||
| 3 | Least command increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 4 | Least input increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 5 | Travel to fixed stop with Force Control | ○ | ○ | ○ | ||
| 6 | Interpolation & Feed Function | Reference point return | G75 FP=1 | ● | ● | ● |
| 7 | 2nd reference point return | G75 FP=2 | ● | ● | ● | |
| 8 | Inverse time feedrate | G93 | ● | ● | ● | |
| 9 | Helical interpolation | ● | ● | ● | ||
| 10 | Polynomial interpolation | X | X | X | ||
| 11 | Spline interpolation (A, B and C splines) | ○ | ○ | ○ | ||
| 12 | Separate path feed for corners and chamfers | ● | ● | ● | ||
| 13 | Acceleration with Jerk limitation | ● | ● | ● | ||
| 14 | Compressor for 3-axis machining | ● | ● | ● | ||
| 15 | Temperature compensation | ● | ● | ● | ||
| 16 | Look Ahead, recorded part program blocks: | Milling with MDynamics Advanced Surface | 150 | 300 | 450 | |
| 17 | Milling with MDynamics Top Surface | 600 | 600 | 600 | ||
| 18 | Look Ahead, IPO blocks, buffered: | Milling with MDynamics Advanced Surface | 50 | 100 | 150 | |
| 19 | Milling with MDynamics Top Surface | 200 | 200 | 200 | ||
| 20 | Cartesian point-to-point (PTP) travel | ● | ● | ● | ||
| 21 | TRANSMIT/cylinder surface transformation | ○ | ○ | ○ | ||
| 22 | Spindle Function | Tapping with compensating chuck/rigid tapping | ● | ● | ● | |
| 23 | Tool Function | Tool radius compensations in plane | ● | ● | ● | |
| 24 | Number of tools/cutting edges in tool list | 128/256 | 256/512 | 768/1536 | ||
| 25 | Tool length compensation | ● | ● | ● | ||
| 26 | Operation with tool management | ○ | ○ | ○ | ||
| 27 | Tool list | ● | ● | ● | ||
| 28 | Replacement tools for tool management | ○ | ○ | ○ | ||
| 29 | Monitoring of tool life and workpiece count | ● | ● | ● | ||
| 30 | Manual measurement of tool offset | ● | ● | ● | ||
| 31 | Magazine list | ● | ● | ● | ||
| 32 | Programming & Editing Function | Number of levels for skip blocks 2 | ● | ● | ● | |
| 33 | Number of levels for skip blocks 10 | ○ | ○ | ○ | ||
| 34 | Program/workpiece management | On additional plug-in CF card | ● | ● | ● | |
| 35 | On USB storage medium (e.g. disk drive, USB stick) | ● | ● | ● | ||
| 36 | On network drive | ○ | ○ | ○ | ||
| 37 | Program editor | Programming support for cycles program(Program Guide) | ● | ● | ● | |
| 38 | CNC editor with editing functions: select, copy, delete | ● | ● | ● | ||
| 39 | Programming graphics/free contour input (contour calculator) | ● | ● | ● | ||
| 40 | ShopMill Machining step programming | ○ | ○ | ○ | ||
| 41 | Technology cycles for drilling/milling | ● | ● | ● | ||
| 42 | Pocket milling free contour and islands stock removal cycle | ○ | ● | ● | ||
| 43 | Residual material detection | ○ | ○ | ○ | ||
| 44 | Access protection for cycles | ○ | ○ | ○ | ||
| 45 | Programming support can be extended, e.g. customer cycles | ● | ● | ● | ||
| 46 | 2D simulation | ● | ● | ● | ||
| 47 | 3D simulation, finished part | ○ | ○ | ○ | ||
| 48 | OTHERS FUNCTIONS (Operation, setting & Display, etc) |
Switchover: inch/metric | ● | ● | ● | |
| 49 | Manual measurement of zero/work offset | ● | ● | ● | ||
| 50 | Automatic tool/workpiece measurement | ● | ● | ● | ||
| 51 | Reference point approach, automatic/via CNC program | ● | ● | ● | ||
| 52 | Execution from USB or CF card interface on operator panel front | ● | ● | ● | ||
| 53 | Execution from network drive | ○ | ○ | ○ | ||
| 54 | 10.4" color display | ● | ● | ● | ||
| 55 | 15.0" color display | ○ | ○ | ○ | ||
| 56 | Alarms and messages | ● | ● | ● | ||
| 57 | Automatic measuring cycles | ○ | ○ | ○ | ||
| ● Standard ○ Optional X N/A | ||||
| NO. | Item | Spec. | TNC 620 | |
| 1 | Axes | Controlled axes | 3 axes | X, Y, Z |
| 2 | Additional Controlled axes | Max. 5 axes in total | ○ (Max. 5axes) | |
| 3 | Least command increment | 0.0001 mm (0.0001 inch), 0.0001° | ● | |
| 4 | Least input increment | 0.0001 mm (0.0001 inch), 0.0001° | ● | |
| 5 | MDI / DISPLAY unit | 19 "color flat-panel display, vertical, touch screen (for MC 8410) | ● | |
| 6 | Program memory for NC programs | 1.8GB | ||
| 7 | CFR CF memory card | 8GB | ||
| 8 | Commissioning and diagnostics | Data interfaces | Ethernet interface | ● |
| 9 | USB interface (USB 2.0) | ● | ||
| 10 | Machine functions | Look-ahead (Intelligent path control by calculating the path speed ahead of time) |
Max. 5000 blocks. | ● |
| 11 | User functions | Brief description | Basic version: 3 axes plus spindle | ● |
| 12 | One or two additional NC axes | ○ | ||
| 13 | Digital current and spindle speed control | ● | ||
| 14 | Program entry | HEIDENHAIN conversational and DIN/ ISO formats | ● | |
| 15 | Position data coordinates | Nominal positions for lines and arcs in Cartesian coordinates or polar coordinates | ● | |
| 16 | Incremental or absolute dimensions | ● | ||
| 17 | Display and input in mm or inches | ● | ||
| 18 | Tool compensation | Tool radius in the working plane and tool length | ● | |
| 19 | Radius-compensated contour look-ahead for up to 99 blocks (M120) | ○ | ||
| 20 | Three-dimensional tool-radius compensation for changing tool data without having to recalculate an existing program |
○ | ||
| 21 | Tool tables | Multiple tool tables with any number of tools | ● | |
| 22 | Constant contour speed | Relative to the path of the tool center | ● | |
| 23 | Relative to the tool’s cutting edge | ● | ||
| 24 | Parallel operation | Creating a program with graphical support while another program is being run | ● | |
| 25 | 3-D machining | Motion control with minimum jerk | ○ | |
| 26 | 3-D tool compensation through surface normal vectors | ○ | ||
| 27 | Keeping the tool normal to the contour | ○ | ||
| 28 | Tool radius compensation normal to the tool direction | ○ | ||
| 29 | Contour elements | Straight line | ● | |
| 30 | Chamfer | ● | ||
| 31 | Circular path | ● | ||
| 32 | Circle center point | ● | ||
| 33 | Circle radius | ● | ||
| 34 | Tangentially connecting circular arc | ● | ||
| 35 | Corner rounding | ● | ||
| 36 | Approaching and departing the contour | Via straight line: tangential or perpendicular | ● | |
| 37 | Via circular arc | ● | ||
| 38 | Program jumps | Subroutines | ● | |
| 39 | Program section repeats | ● | ||
| 40 | Calling any program as subroutine | ● | ||
| 41 | Coordinate transformation | Datum shift, rotation, mirror image, scaling factor (axis-specifi c) | ● | |
| 42 | Tilting the working plane, PLANE function | ○ | ||
| 43 | Actual position capture | Actual positions can be transferred directly into the NC program | ● | |
| 44 | Programming graphics | In the Programming and Editing mode, the contour of the NC blocks is drawn on screen while the blocks are being entered (2-D pencil-trace graphics), even while another program is running |
● | |
| 45 | Machining time | Calculation of machining time in the Test Run operating mode Display of the current machining time in the Program Run operating modes |
● | |
| 46 | Returning to the contour | Mid-program startup in any block in the program, returning the tool to the calculated nominal position to continue machining |
● | |
| 47 | Program interruption, leaving and returning to the contour | ● | ||
| 48 | Preset tables | One preset table for storing reference points | ● | |
| 49 | Datum tables | Several datum tables for storing workpiece-related datums | ● | |
| 50 | Parallel secondary axes | Compensating movement in the secondary axis U, V, W through the principal axis X, Y, Z | ● | |
| 51 | Including movements of parallel axes in the position display of the associated principal axis (sum display) | ● | ||
| 52 | Defi ning the principal and secondary axes in the NC program makes it possible to run programs on different machine confi gurations |
● | ||
| 53 | Conversational languages | English, Chinese (traditional, simplifi ed), Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Polish, Portuguese, Russian (Cyrillic), Spanish, Swedish |
● | |
| 54 | Fixed cycles | Drilling, conventional and rigid tapping, rectangular and circular pockets | ● | |
| 55 | Peck drilling, reaming, boring, counterboring, (centering) | ○ | ||
| 56 | Milling internal and external threads | ○ | ||
| 57 | Clearing level and oblique surfaces | ○ | ||
| 58 | Multioperation machining of straight and circular slots | ○ | ||
| 59 | Multioperation machining of rectangular and circular pockets | ○ | ||
| 60 | Linear and circular point patterns | ○ | ||
| 61 | Contour train, contour pocket—also with contour-parallel machining | ○ | ||
| 62 | OEM cycles (special cycles developed by the machine tool builder) can be integrated | ○ | ||
| 63 | Touch probe cycles | Touch probe calibration | ○ | |
| 64 | Compensation of workpiece misalignment, manual or automatic | ○ | ||
| 65 | Datum setting, manual or automatic | ○ | ||
| 66 | Automatic tool and workpiece measurement | ○ | ||
Fortunepacific's VM1050SL High-Precision Vertical Machining Center delivers exceptional performance for demanding machining tasks. This robust VMC features a high-speed 12,000 RPM BT40 direct-drive spindle, ideal for precision milling, high-speed machining (HSM), and intricate contouring work common in mold making, aerospace components, and precision part manufacturing. Engineered for ultimate accuracy, it boasts impressive specs like ±0.003mm repeatability, rapid traverse rates of 48/48/48 m/min in X/Y/Z, and a powerful 22kW spindle motor. Key components include a rigid cast iron base, precision linear guides on all axes, a reliable ATC (Automatic Tool Changer) with 24 tools, a Taiwan-made FANUC 0i-MF Plus CNC system, and optional fourth-axis readiness. Operators benefit from its user-friendly interface, chip conveyor, coolant system, and rigid tapping capability. This machining center excels in productivity, offering high metal removal rates, superb surface finishes, and dependable operation for 24/7 production environments. It's a top-tier solution for job shops and high-volume manufacturers seeking speed, precision, and durability in vertical CNC mills or CNC machining centers.
Фрезерный обрабатывающий центр с ЧПУ VM1050SL от Fortunepacific — это высокоточный вертикальный станок для интенсивной обработки. Оснащенный высокооборотным шпинделем 12 000 об/мин (BT40, прямой привод), этот ВОЦ идеально подходит для прецизионного фрезерования, высокоскоростной обработки (HSO) и сложного контурирования в производстве пресс-форм, аэрокосмических компонентов и точных деталей. Станок гарантирует исключительную точность: повторяемость ±0.003 мм, быстрые перемещения 48/48/48 м/мин по осям X/Y/Z и мощный шпиндель 22 кВт. Конструкция включает жесткую чугунную станину, прецизионные линейные направляющие по всем осям, надежный магазин АСИ (автоматической смены инструмента) на 24 инструмента, систему ЧПУ FANUC 0i-MF Plus (Тайвань) и опциональную готовность под 4-ю ось. Операторы оценят удобный интерфейс, конвейер стружки, систему СОЖ и функцию жесткого нарезания резьбы. Этот обрабатывающий центр обеспечивает высокую производительность, отличное качество поверхности и надежную круглосуточную работу в цехах и на серийном производстве, являясь премиальным решением для скоростной и точной обработки на вертикальных станках ЧПУ.
El centro de mecanizado vertical de alta precisión VM1050SL de Fortunepacific es una máquina herramienta CNC robusta para trabajos exigentes. Equipado con un husillo de alto rendimiento BT40 de accionamiento directo a 12,000 RPM, este centro de mecanizado es ideal para fresado de precisión, mecanizado de alta velocidad (HSM) y contorneado complejo en la fabricación de moldes, componentes aeroespaciales y piezas de precisión. Diseñado para máxima exactitud, ofrece repetibilidad de ±0.003mm, avances rápidos de 48/48/48 m/min en X/Y/Z y un potente husillo de 22kW. Componentes clave incluyen una bancada de fundición rígida, guías lineales de precisión en todos los ejes, un cambiador automático de herramientas (ATC) fiable para 24 herramientas, control numérico FANUC 0i-MF Plus (Taiwán) y opción para cuarto eje. Los operarios se benefician de su interfaz amigable, transportador de virutas, sistema de refrigerante y capacidad de roscado rígido. Este centro de maquinado destaca por su productividad, altas tasas de arranque de viruta, excelentes acabados superficiales y fiabilidad para producción 24/7, siendo una solución premium para talleres y series grandes que buscan velocidad, precisión y durabilidad en fresadoras CNC verticales.
O centro de usinagem vertical de alta precisão VM1050SL da Fortunepacific é uma máquina-ferramenta CNC robusta para trabalhos exigentes. Equipado com um fuso de alta rotação BT40 de acionamento direto a 12.000 RPM, este centro de usinagem é ideal para fresagem de precisão, usinagem de alta velocidade (HSM) e contornamento complexo na fabricação de moldes, componentes aeroespaciais e peças de precisão. Projetado para máxima exatidão, oferece repetibilidade de ±0,003mm, deslocamentos rápidos de 48/48/48 m/min nos eixos X/Y/Z e um fuso potente de 22kW. Componentes essenciais incluem base rígida em ferro fundido, guias lineares de precisão em todos os eixos, trocador automático de ferramentas (ATC) confiável para 24 ferramentas, controle numérico FANUC 0i-MF Plus (Taiwan) e opção para quarto eixo. Operadores se beneficiam da interface intuitiva, transportador de cavacos, sistema de refrigeração e capacidade de rosca rígida. Este centro de maquinagem oferece alta produtividade, excelente acabamento superficial e confiabilidade para produção 24 horas, sendo uma solução premium para oficinas e produção em série que buscam velocidade, precisão e durabilidade em fresadoras CNC verticais atau mesin milling CNC vertikal.
Mesin bubut vertikal presisi tinggi VM1050SL dari Fortunepacific adalah pusat permesinan CNC tangguh untuk pekerjaan berat. Dilengkapi dengan spindle BT40 direct drive berkecepatan tinggi 12.000 RPM, pusat permesinan ini ideal untuk milling presisi, high-speed machining (HSM), dan pengerjaan kontur kompleks dalam pembuatan mold, komponen aerospace, dan part presisi. Dirancang untuk akurasi tertinggi, menawarkan repetabilitas ±0.003mm, kecepatan pemakanan cepat 48/48/48 m/min pada sumbu X/Y/Z, dan motor spindle bertenaga 22kW. Komponen kunci mencakup base besi cor kaku, linear guide presisi di semua sumbu, ATC (Automatic Tool Changer) andal kapasitas 24 alat, sistem CNC FANUC 0i-MF Plus (buatan Taiwan), dan kesiapan opsional untuk sumbu keempat. Operator mendapat manfaat dari antarmuka user-friendly, konveyor chip, sistem coolant, dan kemampuan rigid tapping. Pusat permesinan ini unggul dalam produktivitas, memberikan rate penghilangan logam tinggi, hasil permukaan halus, dan operasi andal untuk lingkungan produksi 24/7. Solusi premium untuk bengkel kerja dan manufaktur volume tinggi yang membutuhkan kecepatan, ketepatan, dan daya tahan pada mesin milling vertikal CNC atau pusat permesinan CNC.
مرکز ماشینکاری عمودی با دقت بالا VM1050SL از فورچون پسیفیک یک دستگاه فرز CNC قدرتمند برای کارهای سنگین است. این مرکز ماشینکاری مجهز به اسپیندل مستقیم BT40 با سرعت بالا 12000 دور در دقیقه، ایدهآل برای فرزکاری دقیق، ماشینکاری سریع (HSM) و کانتورینگ پیچیده در ساخت قالب، قطعات هوافضا و قطعات دقیق میباشد. طراحی شده برای حداکثر دقت، دارای قابلیت تکرارپذیری ±0.003mm، حرکت سریع 48/48/48 متر بر دقیقه در محورهای X/Y/Z و موتور اسپیندل قدرتمند 22kW است. اجزای کلیدی شامل پایه چدنی صلب، ریل خطی دقیق در تمام محورها، سیستم تعویض ابزار اتوماتیک (ATC) قابل اعتماد با گنجایش 24 ابزار، سیستم CNC FANUC 0i-MF Plus (تایوان) و آمادگی اختیاری برای محور چهارم میباشد. اپراتورها از رابط کاربری آسان، نوار نقاله براده، سیستم خنککننده و قابلیت رزوهزنی سفت بهره میبرند. این مرکز فرز بهرهوری بالا، نرخ بالای برادهبرداری، پرداخت سطح عالی و عملکرد قابل اطمینان برای محیطهای تولید 24 ساعته ارائه میدهد و راهحلی ممتاز برای کارگاهها و تولیدکنندگان انبوه است که به دنبال سرعت، دقت و دوام در دستگاههای فرز عمودی CNC یا مراکز ماشینکاری CNC هستند.
Máy phay đứng chính xác cao VM1050SL của Fortunepacific là trung tâm gia công CNC mạnh mẽ cho công việc khó. Trang bị trục chính BT40 truyền động trực tiếp tốc độ cao 12.000 vòng/phút, máy phay CNC này lý tưởng để phay chính xác, gia công tốc độ cao (HSM) và tạo hình phức tạp trong sản xuất khuôn mẫu, linh kiện hàng không vũ trụ và chi tiết chính xác. Được thiết kế cho độ chính xác tối đa, đạt độ lặp lại ±0.003mm, tốc độ chạy dao nhanh 48/48/48 m/phút trên các trục X/Y/Z và động cơ trục chính công suất 22kW. Thành phần chính gồm bệ máy bằng gang cứng vững, ray trượt tuyến tính chính xác trên mọi trục, bộ thay dao tự động (ATC) đáng tin cậy 24 dao, hệ thống điều khiển CNC FANUC 0i-MF Plus (Đài Loan) và tùy chọn trục thứ tư. Người vận hành hưởng lợi từ giao diện thân thiện, băng tải phoi, hệ thống làm mát và khả năng taro cứng. Trung tâm gia công này vượt trội về năng suất, tốc độ cắt gọt kim loại cao, bề mặt hoàn thiện mịn và vận hành ổn định cho sản xuất 24/7, là giải pháp hàng đầu cho phân xưởng và sản xuất hàng loạt cần tốc độ, độ chính xác và độ bền trong máy phay đứng CNC.
เครื่องกัดแนวตั้งความแม่นยำสูง VM1050SL จาก Fortunepacific เป็นเครื่องจักรซีเอ็นซีที่ทรงพลังสำหรับงานตัดเฉือนที่ท้าทาย ด้วยสปินเดิลแบบขับเคลื่อนตรง BT40 ความเร็วสูง 12,000 RPM เครื่องกัดซีเอ็นซีนี้เหมาะอย่างยิ่งสำหรับงานกัดละเอียด การตัดเฉือนความเร็วสูง (HSM) และงานขึ้นรูปรูปร่างซับซ้อนในการผลิตแม่พิมพ์ ชิ้นส่วนอากาศยาน และชิ้นส่วนความเที่ยงตรง ออกแบบเพื่อความแม่นยำสูงสุด ด้วยค่าความแม่นยำซ้ำ ±0.003mm ความเร็วเดินเครื่องฉับไว 48/48/48 ม./นาที ในแกน X/Y/Z และมอเตอร์สปินเดิลกำลัง 22kW ส่วนประกอบหลักประกอบด้วยฐานเหล็กหล่อแข็งเกร็ง ก้านนำแนวตรงความเที่ยงตรงทุกแกน ระบบเปลี่ยนมีดอัตโนมัติ (ATC) ที่เชื่อถือได้สำหรับ 24 มีด ระบบควบคุมซีเอ็นซี FANUC 0i-MF Plus (ไต้หวัน) และพร้อมใช้งานสำหรับแกนที่สี่ ผู้ใช้งานได้ประโยชน์จากอินเทอร์เฟซที่ใช้งานง่าย สายพานลำเลียงเศษตัด ระบบหล่อเย็น และความสามารถในการต๊าปแบบแข็ง เครื่องกัดแนวตั้งซีเอ็นซีนี้โดดเด่นด้านผลิตภาพ อัตราการตัดโลหะสูง พื้นผิวงานเรียบเนียน และการทำงานที่เชื่อถือได้สำหรับไลน์ผลิต 24 ชม. เป็นโซลูชันระดับพรีเมียมสำหรับโรงงานผลิตและอุตสาหกรรมขนาดใหญ่ที่ต้องการความเร็ว ความเที่ยงตรง และความทนทานในเครื่องกัดแนวตั้งซีเอ็นซี.
Mesin pengilangan menegak ketepatan tinggi VM1050SL dari Fortunepacific ialah pusat pemesinan CNC teguh untuk kerja berat. Dilengkapi dengan spindel pacuan langsung BT40 kelajuan tinggi 12,000 RPM, mesin pengilang CNC ini sesuai untuk pengilangan tepat, pemesinan kelajuan tinggi (HSM), dan kerja kontur kompleks dalam pembuatan acuan, komponen aeroangkasa dan bahagian tepat. Direka untuk ketepatan maksimum, menawarkan kebolehulangan ±0.003mm, kadar hantaran laju 48/48/48 m/min pada paksi X/Y/Z dan motor spindel berkuasa 22kW. Komponen utama termasuk asas besi tuang tegar, panduan linear tepat pada semua paksi, ATC (Penukar Alat Automatik) dipercayai untuk 24 alat, sistem CNC FANUC 0i-MF Plus (Taiwan) dan kesediaan pilihan untuk paksi keempat. Operator mendapat manfaat daripada antara muka mesra pengguna, penghantar cip, sistem penyejuk dan keupayaan mengetap tegar. Pusat pemesinan ini cemerlang dalam produktiviti, kadar penyingkiran logam tinggi, penyudahan permukaan unggul dan operasi dipercayai untuk persekitaran pengeluaran 24/7, menjadi penyelesaian premium untuk bengkel kerja dan pengilang volum tinggi yang memerlukan kelajuan, ketepatan dan ketahanan dalam mesin pengilang menegak CNC atau pusat pemesinan CNC.
O centro de usinagem vertical VM1050SL de alta precisão com 12000 rpm é uma máquina robusta para operações de fresagem, furação e usinagem de alta velocidade, ideal para moldes, componentes aeroespaciais e peças automotivas. Com eixos rápidos, precisão micrométrica e estrutura rígida de ferro fundido, este centro de maquinação vertical oferece confiabilidade superior e vida longa. Parâmetros incluem mesa de trabalho de 1000x500mm, curso XYZ de 800x500x500mm, e sistema avançado de controle CNC para máxima produtividade. Configurado com trocador automático de ferramentas, fuso de alta rotação e guias lineares, sua aplicação abrange indústrias que exigem acabamento fino e tolerâncias apertadas. Vantagens como baixo custo operacional, manutenção simplificada e alta eficiência energética fazem desta VMC uma escolha inteligente para quem busca redução de tempo de ciclo e aumento de rendimento. Principais componentes: base robusta, cabeçote de alta velocidade, e controlador intuitivo para usinagem precisa sem falhas.
Ang vertical machining center na VM1050SL na may 12000 rpm ay isang mataas na presisyon na makina para sa paggiling, pagbutas, at mabilis na operasyon, perpekto sa paggawa ng mga hulma, aerospace parts, at automotive components. Sa mataas na bilis ng spindle, micrometer-level na katumpakan, at matibay na istraktura, ang sentro ng machining na ito ay nag-aalok ng maaasahang pagganap at mahabang buhay. Mga parameter: work table na 1000x500mm, XYZ travel na 800x500x500mm, at advanced CNC control para sa pinakamataas na produktibidad. Configuration kasama ang automatic tool changer, high-speed spindle, at linear guides, na ginagamit sa mga industriyang nangangailangan ng fine finish at mahigpit na tolerance. Mga benepisyo gaya ng mababang operating cost, madaling maintenance, at energy efficiency ay nagpapalakas sa kahusayan nitong high-speed VMC para sa mabilis na production cycle at mataas na output. Pangunahing bahagi: matibay na base, high-speed spindle unit, at user-friendly control system para sa tumpak na machining na walang error.
Il centro di lavorazione verticale VM1050SL ad alta precisione con 12000 giri/min è una macchina robusta per fresatura, foratura e lavorazioni ad alta velocità, perfetta per stampi, componenti aerospaziali e parti automobilistiche. Con assi rapidi, precisione micrometrica e struttura rigida in ghisa, questo centro di lavoro verticale garantisce affidabilità superiore e lunga durata. Parametri includono tavola lavoro 1000x500mm, corsa XYZ 800x500x500mm, e sistema di controllo CNC avanzato per massima produttività. Configurato con cambiautensile automatico, mandrino ad alta velocità e guide lineari, la sua applicazione copre industrie che richiedono finitura fine e tolleranze strette. Vantaggi come basso costo operativo, manutenzione semplificata ed alta efficienza energetica rendono questa VMC una scelta intelligente per ridurre i tempi di ciclo e aumentare la resa. Componenti principali: base robusta, unità mandrino ad alta velocità e controllo intuitivo per lavorazioni precise senza errori.
VM1050SL 12000 dev/dak yüksek hassasiyetli dikey işleme merkezi, frezeleme, delme ve yüksek hızlı işlemler için sağlam bir makinedir, kalıp, havacılık parçaları ve otomotiv bileşenleri için idealdir. Yüksek mil hızı, mikrometre hassasiyeti ve dökme demir yapısıyla bu dikey işleme merkezi üstün güvenilirlik ve uzun ömür sunar. Parametreler: 1000x500mm çalışma tablası, 800x500x500mm XYZ hareketi ve maksimum verimlilik için gelişmiş CNC kontrol sistemi. Otomatik takım değiştirici, yüksek hızlı mil ve lineer kızaklarla donatılmış, ince yüzey işleme ve sıkı tolerans gerektiren endüstrilerde kullanılır. Düşük işletme maliyeti, basit bakım ve yüksek enerji verimliliği gibi avantajlarla bu yüksek hızlı VMC, döngü süresini azaltmak ve çıktıyı artırmak için akıllı bir seçimdir. Temel bileşenler: sağlam taban, yüksek hızlı mil ünitesi ve hatasız hassas işleme için kullanıcı dostu kontrol sistemi.
Le centre d'usinage vertical VM1050SL haute précision avec 12000 tr/min est une machine robuste pour le fraisage, le perçage et l'usinage à grande vitesse, idéale pour les moules, les pièces aérospatiales et les composants automobiles. Avec des axes rapides, une précision micrométrique et une structure rigide en fonte, ce centre d'usinage vertical offre une fiabilité supérieure et une longue durée de vie. Paramètres : table de travail 1000x500mm, course XYZ 800x500x500mm et système de contrôle CNC avancé pour une productivité maximale. Configuré avec changeur d'outils automatique, broche haute vitesse et guides linéaires, son application couvre les industries nécessitant une finition fine et des tolérances serrées. Avantages comme le faible coût d'exploitation, la maintenance simplifiée et la haute efficacité énergétique font de cette machine-outil de fraisage vertical un choix intelligent pour réduire les temps de cycle et augmenter le rendement. Composants principaux : base robuste, unité de broche haute vitesse et système de contrôle intuitif pour un usinage précis sans erreur.
مركز التشغيل الرأسي VM1050SL عالي الدقة بسرعة 12000 دورة في الدقيقة هو آلة قوية للطحن والحفر والتشغيل عالي السرعة، مثالي للقوالب وأجزاء الفضاء والمكونات السيارات. مع سرعة محورية عالية ودقة ميكرومترية وبنية صلبة من الحديد الزهر، يقدم مركز التشغيل هذا موثوقية فائقة وعمر طويل. المعلمات تشمل طاولة عمل 1000x500 مم، حركة XYZ 800x500x500 مم، ونظام تحكم CNC متقدم لأقصى إنتاجية. مزود بمبدل أدوات آلي، مغزل عالي السرعة ودلائل خطية، يغطي تطبيقه الصناعات التي تتطلب تشطيبًا ناعمًا وحدود تحمل ضيقة. مزايا مثل تكلفة تشغيل منخفضة وصيانة مبسطة وكفاءة طاقية عالية تجعل آلة الطحن الرأسية هذه خيارًا ذكيًا لتقليل وقت الدورة وزيادة الإنتاج. المكونات الرئيسية: قاعدة متينة، وحدة مغزل عالي السرعة، ونظام تحكم بديهي للتشغيل الدقيق بدون أخطاء.
Das vertikale Bearbeitungszentrum VM1050SL mit hoher Präzision und 12000 U/min ist eine robuste Maschine zum Fräsen, Bohren und Hochgeschwindigkeitsbearbeiten, ideal für Formen, Luftfahrtteile und Automobilkomponenten. Mit schnellen Achsen, mikrometergenauer Präzision und starrer Gusseisenstruktur bietet dieses Vertikal-Bearbeitungszentrum überlegene Zuverlässigkeit und lange Lebensdauer. Parameter beinhalten Arbeitstisch 1000x500mm, XYZ-Hub 800x500x500mm und fortschrittliche CNC-Steuerung für maximale Produktivität. Ausgestattet mit automatischem Werkzeugwechsler, Hochgeschwindigkeitsspindel und Lineargleitführungen deckt seine Anwendung Branchen ab, die Feinstbearbeitung und enge Toleranzen erfordern. Vorteile wie niedrige Betriebskosten, vereinfachte Wartung und hohe Energieeffizienz machen diese Hochgeschwindigkeits-Fräsmaschine zu einer intelligenten Wahl für reduzierte Zykluszeiten und erhöhte Ausbeute. Hauptkomponenten: stabile Basis, Hochgeschwindigkeitsspindeleinheit und benutzerfreundliches Steuerungssystem für präzise Bearbeitung ohne Fehler.
Het verticaal bewerkingscentrum VM1050SL met hoge precisie en 12000 toeren per minuut is een robuuste machine voor frezen, boren en hoogwaardige bewerkingen, ideaal voor mallen, luchtvaartonderdelen en auto-onderdelen. Met snelle assen, micrometerprecisie en een starre gietijzeren constructie biedt dit verticale bewerkingscentrum superieure betrouwbaarheid en lange levensduur. Parameters: werktafel 1000x500mm, XYZ-verplaatsing 800x500x500mm en geavanceerde CNC-besturing voor maximale productiviteit. Uitgerust met automatische gereedschapswisselaar, hoogtoerige spil en lineaire geleidingen, dekt de toepassing industrieën die fijne afwerking en nauwe toleranties vereisen. Voordelen zoals lage bedrijfskosten, eenvoudig onderhoud en hoge energie-efficiëntie maken deze high-speed freesmachine tot een slimme keuze voor kortere cyclustijden en hogere output. Belangrijkste componenten: stevige basis, hoogtoerige spileenheid en intuïtief bedieningssysteem voor nauwkeurige bewerking zonder fouten.
Centrum obróbcze pionowe VM1050SL o wysokiej precyzji z 12000 obr/min to solidna maszyna do frezowania, wiercenia i obróbki wysokiej prędkości, idealna do form, części lotniczych i komponentów samochodowych. Dzięki szybkim osiom, precyzji mikrometrycznej i sztywnej konstrukcji z żeliwa, to pionowe centrum obróbcze zapewnia niezawodność i długą żywotność. Parametry: stół roboczy 1000x500mm, skok XYZ 800x500x500mm i zaawansowany sterownik CNC dla maksymalnej wydajności. Wyposażone w automatyczny zmieniacz narzędzi, wrzeciono wysokiej prędkości i prowadnice liniowe, zastosowanie obejmuje branże wymagające wykończenia precyzyjnego i ciasnych tolerancji. Zalety jak niskie koszty eksploatacji, uproszczona konserwacja i wysoka efektywność energetyczna czynią tę frezarkę pionową dużej prędkości mądrą opcją dla skróconych cykli i zwiększonej produkcji. Główne komponenty: solidna podstawa, jednostka wrzeciona wysokiej prędkości i intuicyjny system sterowania do precyzyjnej obróbki bez błędów.
Centrul de prelucrare vertical VM1050SL de înaltă precizie cu 12000 rpm este o mașină robustă pentru frezare, găurire și prelucrare de înaltă viteză, ideală pentru matrițe, componente aerospațiale și piese auto. Cu axe rapide, precizie micrometrică și structură rigidă din fontă, acest centru vertical de prelucrare oferă fiabilitate superioară și durată viață. Parametrii includ: masă de lucru 1000x500mm, cursă XYZ 800x500x500mm și sistem de control CNC avansat pentru productivitate maximă. Configurat cu schimbător automat de scule, ax de înaltă viteză și ghidaje liniare, aplicația acoperă industrii care necesită finisare fină și toleranțe strânse. Avantaje precum costuri de operare reduse, întreținere simplificată și eficiență energetică ridicată fac această mașină de frezat verticală o alegere inteligentă pentru reducerea timpului de ciclu și creșterea producției. Componente principale: bază robustă, unitate ax de înaltă viteză și sistem de control intuitiv pentru prelucrare precisă fără erori.
