VBM50X VBM60X Bed Type Milling Machine specifications
VBM50X VBM60X Bed Type Milling Machine Standard accessories
VBM50X VBM60X Bed Type Milling Machine Optional

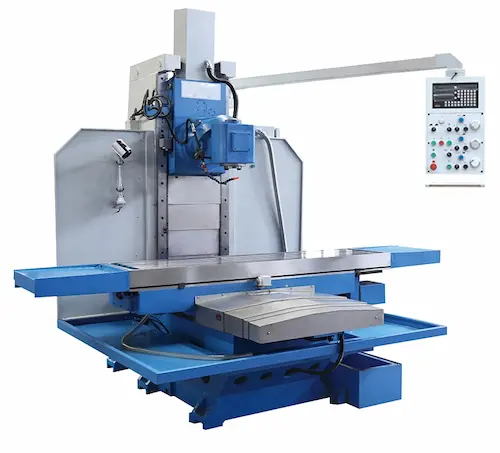

·Heavy duty, bed-type milling machine;
·360° swivel head, vertical & horizontal milling available;
·infinitely variable spindle speeds;
·3-axis ball screws;
·3-axis individual servo motors driven;
·equipped with E-handwheels for manual control of table movement;
·equipped with automatic electronic lubrication pump.
| Items | VBM50X | VBM60X |
| Working area | ||
| Table size | 2100x500mm | 2500x600mm |
| T-slot (width x No. x pitch) | 20mmx4x100mm | 20mmx5x100mm |
| Max. load of table | 2000kg | |
| Distance from spindle nose to table surface | 0-650mm | 0-700mm |
| Distance from spindle axis and table surface | 8-660mm | |
| Distance between spindle axis and column guideway | 610mm | 8-660mm |
| Travel | ||
| Longitudinal travel of X axis | 1500mm | 1800mm |
| Cross travel of Y axis | 650mm | 700mm |
| Spindle | ||
| Spindle taper | 7:24 ISO50 | |
| Spindle speed | (2steps) 6-300r/min, 30-1500r/min | |
| Main motor power | 11kW | |
| Feed | ||
| Table feed-X/Y | 2.5-3000mm/min | |
| Table feed-Z | 2.5-2500mm/min | |
| Table rapid feed X/Y/Z | 6000/6000/3000mm/min | |
| Others | ||
| Coolant motor | 90W | |
| Overall dimension | 3220x2420x2800mm | 4380x2520x2800mm |
| Net weight | 7300kg | 9000kg |
| Item 01 | Descriptions | |
| 01.01 | ISO 50 Milling chuck (4, 6, 8, 12, 16, 18, 22, 26) | |
| 01.02 | Milling holder ISO50-Φ40 | |
| 01.03 | Middle sleeve ISO50/MS4 | |
| 01.04 | Draw bar | |
| 01.05 | Oil gun | |
| 01.06 | Foundation bolts | |
| 01.07 | Tools & tool box | |
| 01.08 | Working lamp | |
| 01.09 | Coolant system | |
| 01.10 | Automatic lubrication pump | |
| 01.11 | Operation manual | |
| 01.12 | Coolant water tank | |
| 01.13 | Horizontal milling support bracket |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Universal dividing head 125mm | |
| Universal dividing head 160mm | ||
| Universal dividing head 200mm | ||
| 02.03 | Rotary table 250mm | |
| Rotary table 320mm | ||
| Rotary table 400mm | ||
| 02.04 | Machine vise 250mm | |
| 02.05 | Milling chuck 15pcs | |
| 02.06 | Worktable protection cover | |
| 02.07 | Spindle protection cover | |
| 02.08 | Clamping kit M16 | |
| 02.09 | Power tool clamping | |
| 02.10 | LED work lamp | |
| 02.11 | Schneider electric |
