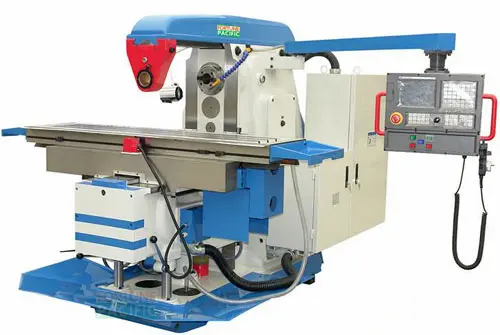

UHM40 NC Heavy-duty Horizontal Knee-type Mills

Technical Specifications of UHM40 NC Heavy-duty Horizontal Knee-type Milling Machine

Model	Unit	UHM40
CNC system		GSK 980
Table size	mm	1700x400 (67x16″)
T-slot (width x No. x pitch)	mm	18x3x90
Max load of table	kg	500
Longitudinal travel of X axis	mm	1100 (43″)
Cross travel of Y axis	mm	350 (14″)
Vertical travel of Z axis	mm	360 (14″)
Spindle taper		7:24; ISO 50
Spindle speed	rpm	18steps; 30-1500
Distance from horizontal spindle axis to table surface	mm	20-380 (0.8-15″)
Distance from horizontal spindle axis to arm bottom	mm	155 (6″)
Feed speed range and step of X/Y/Z axis	mm/min	Infinitely variable
Main motor power	kW	11
AC servo motor torque of X, Y, Z axis	Nm	15/15/23
Overall dimension	mm	2550x2150x1800
Net weight	kg	3650

Features
1. High in rigidity and accuracy for heavy and high-speed cutting;
2. The power of main spindle motor is high and speed range is wide;
3. Manufactured from high quality cast iron;
4. The important part is manufactured from alloy steel, ensuring maximum stability for heavy duty cutting;
5. Adopts integrated automatic lubricating system;
6. Can also do high speed cutting with carbide cutter tool;
7. Spindle speed is easy to change with impulse device, and it can brake rapidly and effectively;
8. Three-dimensional motion is controlled by stop block, thus has good security;
9. UHM40 can become four-axis NC knee-type milling machine with NC dividing head.

Standard accessories
1. Middle sleeve;
2. Draw bar;
3. Horizontal arbor assembly;
4. Double-ended wrench;
5. Inner hexagon spanner;

Optional accessories
1. Siemens 808D;

Features
1. High in rigidity and accuracy for heavy and high-speed cutting;
2. The power of main spindle motor is high and speed range is wide;
3. Manufactured from high quality cast iron;
4. The important part is manufactured from alloy steel, ensuring maximum stability for heavy duty cutting;
5. Adopts integrated automatic lubricating system;
6. Can also do high speed cutting with carbide cutter tool;
7. Spindle speed is easy to change with impulse device, and it can brake rapidly and effectively;
8. Three-dimensional motion is controlled by stop block, thus has good security;
9. UHM40 can become four-axis NC knee-type milling machine with NC dividing head.

Technical Specifications of UHM40 NC Heavy-duty Horizontal Knee-type Milling Machine

Model	Unit	UHM40
CNC system		GSK 980
Table size	mm	1700x400 (67x16″)
T-slot (width x No. x pitch)	mm	18x3x90
Max load of table	kg	500
Longitudinal travel of X axis	mm	1100 (43″)
Cross travel of Y axis	mm	350 (14″)
Vertical travel of Z axis	mm	360 (14″)
Spindle taper		7:24; ISO 50
Spindle speed	rpm	18steps; 30-1500
Distance from horizontal spindle axis to table surface	mm	20-380 (0.8-15″)
Distance from horizontal spindle axis to arm bottom	mm	155 (6″)
Feed speed range and step of X/Y/Z axis	mm/min	Infinitely variable
Main motor power	kW	11
AC servo motor torque of X, Y, Z axis	Nm	15/15/23
Overall dimension	mm	2550x2150x1800
Net weight	kg	3650

Introducing the UHM40 NC Heavy Duty Horizontal Knee Mill – a precision-engineered industrial milling powerhouse designed for demanding metalworking applications. This robust CNC knee-type milling machine features a rigid box-way construction with reinforced cast iron components ensuring vibration-free operation during heavy-duty machining. Its horizontal spindle configuration delivers exceptional torque for efficient slotting, grooving, and face milling operations across aerospace, automotive mold making, and heavy equipment manufacturing sectors. Key advantages include industry-leading positioning accuracy (±0.005mm), automatic feed controls via user-friendly CNC interface, and oversized dovetail ways for enhanced durability. The integrated knee-and-column design provides versatile Z-axis adjustment while the hardened ground screws maintain long-term repeatability. Operators praise its chip-to-chip time reduction capabilities and maintenance-free guideways ideal for high-volume production environments seeking reliable, precision milling solutions.
