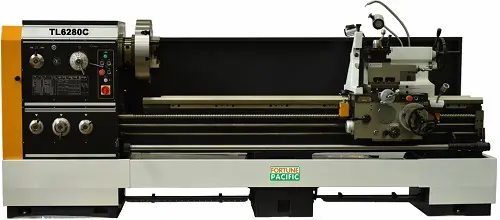

TL6280B TL6280C Universal Metalworking Lathe
TL6280B TL6280C Universal Lathe respectively with through-hole spindle bore, that can hold bar stocks in larger diameters; Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- TL6280B TL6280C Universal Metalworking LatheDownload
Machine specifications
Equipment
Optional
Features
| Items | TL6280B | TL6280C |
| Capacity | ||
| Max. swing dia. over bed | Φ800 mm | |
| Max. swing dia. over slide | Φ560 mm | |
| Max. swing dia. over gap | Φ1000 mm | |
| Effective length in gap | 240 mm | |
| Max. workpiece length | 2000/3000 mm | |
| Max. turning length | 1950/2950 mm | |
| Bed width | 510 mm | |
| Spindle | ||
| Spindle bore diameter | Φ85 mm | Φ105 mm |
| Taper of spindle bore | Φ90, 1:20 | Φ113, 1:20 |
| Type of spindle nose | D8 | D8 |
| Spindle speed | 9-1400 rpm | 30-1400 |
| Spindle speed steps。 | 24 | 12 |
| Feeds and threads | ||
| Max. travel of upper tool post | 145 mm | |
| Max. travel of lower tool post | 320 mm | |
| Tool section | 25x25 mm | |
| Crosswise quick moving speed | 50Hz: 1.9 m/min; 60Hz: 2.3 m/min | |
| Longitudinal quick moving speed | 50Hz: 4.5 m/min; 60Hz: 5.4 m/min | |
| Cross feeds range | 0.012-2.73 mm/r; 93kinds | 0.027-1.07 mm/r; 65kinds |
| Longitudinal feeds range | 0.028-6.43 mm/r; 93kinds | 0.63-2.52 mm/r; 65kinds |
| Metric threads | 0.5-224 mm; 48kinds | 1-14 mm; 22kinds |
| Inch threads | 72-1/8TPI; 46kinds | 28-2TPI; 25kinds |
| Module threads | 0.5-112 mm; 42kinds | 0.5-7 mm; 18kinds |
| Diametric pitch threads | 56-1/4DP; 45kinds | 56-4DP; 24kinds |
| Tailstock | ||
| Diameter of quill | Φ75 mm | |
| Max. travel of quill | 150 | |
| Taper of quill | MT5 mm | |
| Motors | ||
| Main spindle motor | 7.5 kW | |
| Rapid traverse motor power | 0.25 kW | |
| Coolant pump motor | 0.09 kW | |
| Others | ||
| L x W x H (of lathe) | 2000mm: 3700x1340x1490 mm 3000mm: 4700x1340x1490 mm |
|
| Net weight | 3600/4000 kg | |
| Item 01 | Descriptions | |
| 01.01 | 3-jaw Chuck | |
| 01.02 | 4-jaw Chuck | |
| 01.03 | Steady rest | |
| 01.04 | Follow rest | |
| 01.05 | Face plate | |
| 01.06 | 4-way tool post | |
| 01.07 | Foot brake | |
| 01.08 | Full length splash guard (short type on 3m lathe) | |
| 01.09 | Work lamp | |
| 01.10 | Longitudinal mechanical stop (without on 3m lathe) | |
| 01.11 | Chuck guard | |
| 01.12 | Tool post guard |
| Item 02 | Descriptions | |
| 02.01 | Taper Turning Attachment | |
| 02.02 | Thread chasing dial | |
| 02.03 | Quick Change tool post | |
| 02.04 | 2-axis or 3-axis DRO | |
| 02.05 | Live center | |
| 02.06 | Leadscrew guard |
Features
- Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D.P.;
- Perform drilling, boring and groove broaching;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- These series lathes operate on power supply of different voltages (220V/380V/420V) and different frequencies (50Hz/60Hz).
Features
- Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
- Threading Inch, Metric, Module and D.P.;
- Perform drilling, boring and groove broaching;
- Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
- Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
- There are hand brake and foot brake for users to choose;
- These series lathes operate on power supply of different voltages (220V/380V/420V) and different frequencies (50Hz/60Hz).
Machine specifications
| Items | TL6280B | TL6280C |
| Capacity | ||
| Max. swing dia. over bed | Φ800 mm | |
| Max. swing dia. over slide | Φ560 mm | |
| Max. swing dia. over gap | Φ1000 mm | |
| Effective length in gap | 240 mm | |
| Max. workpiece length | 2000/3000 mm | |
| Max. turning length | 1950/2950 mm | |
| Bed width | 510 mm | |
| Spindle | ||
| Spindle bore diameter | Φ85 mm | Φ105 mm |
| Taper of spindle bore | Φ90, 1:20 | Φ113, 1:20 |
| Type of spindle nose | D8 | D8 |
| Spindle speed | 9-1400 rpm | 30-1400 |
| Spindle speed steps。 | 24 | 12 |
| Feeds and threads | ||
| Max. travel of upper tool post | 145 mm | |
| Max. travel of lower tool post | 320 mm | |
| Tool section | 25x25 mm | |
| Crosswise quick moving speed | 50Hz: 1.9 m/min; 60Hz: 2.3 m/min | |
| Longitudinal quick moving speed | 50Hz: 4.5 m/min; 60Hz: 5.4 m/min | |
| Cross feeds range | 0.012-2.73 mm/r; 93kinds | 0.027-1.07 mm/r; 65kinds |
| Longitudinal feeds range | 0.028-6.43 mm/r; 93kinds | 0.63-2.52 mm/r; 65kinds |
| Metric threads | 0.5-224 mm; 48kinds | 1-14 mm; 22kinds |
| Inch threads | 72-1/8TPI; 46kinds | 28-2TPI; 25kinds |
| Module threads | 0.5-112 mm; 42kinds | 0.5-7 mm; 18kinds |
| Diametric pitch threads | 56-1/4DP; 45kinds | 56-4DP; 24kinds |
| Tailstock | ||
| Diameter of quill | Φ75 mm | |
| Max. travel of quill | 150 | |
| Taper of quill | MT5 mm | |
| Motors | ||
| Main spindle motor | 7.5 kW | |
| Rapid traverse motor power | 0.25 kW | |
| Coolant pump motor | 0.09 kW | |
| Others | ||
| L x W x H (of lathe) | 2000mm: 3700x1340x1490 mm 3000mm: 4700x1340x1490 mm |
|
| Net weight | 3600/4000 kg | |
Equipment
| Item 01 | Descriptions | |
| 01.01 | 3-jaw Chuck | |
| 01.02 | 4-jaw Chuck | |
| 01.03 | Steady rest | |
| 01.04 | Follow rest | |
| 01.05 | Face plate | |
| 01.06 | 4-way tool post | |
| 01.07 | Foot brake | |
| 01.08 | Full length splash guard (short type on 3m lathe) | |
| 01.09 | Work lamp | |
| 01.10 | Longitudinal mechanical stop (without on 3m lathe) | |
| 01.11 | Chuck guard | |
| 01.12 | Tool post guard |
