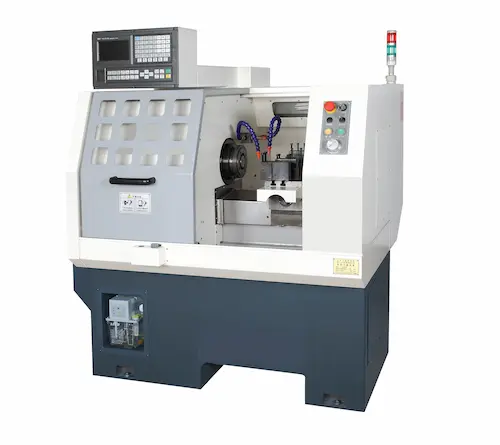

Technical parameters of NCH250FC Flat Bed CNC Lathe
Equipment of NCH250FC Flat Bed CNC Lathe
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. 3-color warning light;
4. Coolant system;
5. Lubrication system;
6. Pneumatic clamping collet;
Optional of NCH250FC Flat Bed CNC Lathe
1. Hydraulic clamping device;
2. Collet.
Features of NCH250FC Flat Bed CNC Lathe
1. High precision and high rigidity;
2. Modular design, can be installed on demand;
3. Water tank and base integrated, easy to carry, save space;
| ITEMS | UNIT | NCH250FC | |
| Capacity | Max. turning diameter | mm | Φ250 |
| Swing over carriage | mm | Φ110 | |
| Max. diameter of bar | mm | 36 | |
| Feed shaft | X/Z travel | mm | 250/320 |
| X/Z torque | Nm | 4/6 | |
| Rapid feed of X/Z | mm/min | 12/15 | |
| Spindle | Spindle speed range | rpm | 4000 |
| Spindle motor power | kW | 3 | |
| Spindle nose | - | A2-5 | |
| Spindle through-hole diameter | mm | Φ43 | |
| Tool holder | Tool holder form | Gang tool | |
| No. of tool stations | - | 4 | |
| Tool shank dimension | mm | 20x20 | |
| Boring tool size | mm | Φ20 | |
| Clamping | Clamping force | Pneumatic | |
| Other | Guide type | Box way | |
| Machine precision | Positioning accuracy of X/Z axis | mm | 0.012/0.016 |
| Repositioning accuracy of X/Z axis | mm | 0.004/0.008 | |
| Dimensions | L x W x H (of lathe) | mm | 1600x1300x1700 |
| Weight | Net weight | kg | 1000 |
Equipment of NCH250FC Flat Bed CNC Lathe
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. 3-color warning light;
4. Coolant system;
5. Lubrication system;
6. Pneumatic clamping collet;
Optional of NCH250FC Flat Bed CNC Lathe
1. Hydraulic clamping device;
2. Collet.
Features of NCH250FC Flat Bed CNC Lathe
1. High precision and high rigidity;
2. Modular design, can be installed on demand;
3. Water tank and base integrated, easy to carry, save space;
Features of NCH250FC Flat Bed CNC Lathe
1. High precision and high rigidity;
2. Modular design, can be installed on demand;
3. Water tank and base integrated, easy to carry, save space;
1. High precision and high rigidity;
2. Modular design, can be installed on demand;
3. Water tank and base integrated, easy to carry, save space;
Technical parameters of NCH250FC Flat Bed CNC Lathe
| ITEMS | UNIT | NCH250FC | |
| Capacity | Max. turning diameter | mm | Φ250 |
| Swing over carriage | mm | Φ110 | |
| Max. diameter of bar | mm | 36 | |
| Feed shaft | X/Z travel | mm | 250/320 |
| X/Z torque | Nm | 4/6 | |
| Rapid feed of X/Z | mm/min | 12/15 | |
| Spindle | Spindle speed range | rpm | 4000 |
| Spindle motor power | kW | 3 | |
| Spindle nose | - | A2-5 | |
| Spindle through-hole diameter | mm | Φ43 | |
| Tool holder | Tool holder form | Gang tool | |
| No. of tool stations | - | 4 | |
| Tool shank dimension | mm | 20x20 | |
| Boring tool size | mm | Φ20 | |
| Clamping | Clamping force | Pneumatic | |
| Other | Guide type | Box way | |
| Machine precision | Positioning accuracy of X/Z axis | mm | 0.012/0.016 |
| Repositioning accuracy of X/Z axis | mm | 0.004/0.008 | |
| Dimensions | L x W x H (of lathe) | mm | 1600x1300x1700 |
| Weight | Net weight | kg | 1000 |
Equipment of NCH250FC Flat Bed CNC Lathe
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. 3-color warning light;
4. Coolant system;
5. Lubrication system;
6. Pneumatic clamping collet;
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. 3-color warning light;
4. Coolant system;
5. Lubrication system;
6. Pneumatic clamping collet;
