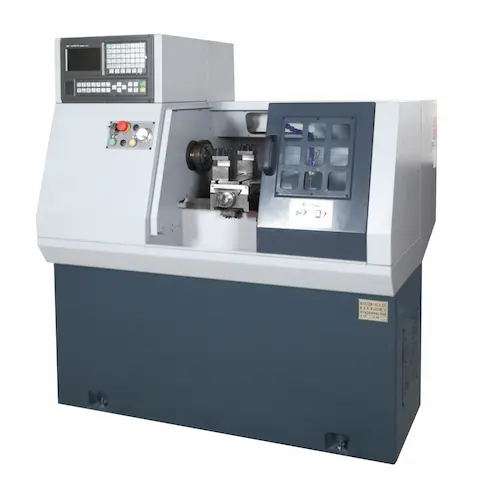

NCH250F Flat Bed CNC Lathe

Equipment of NCH250F Flat Bed CNC Lathe
1. GSK 980TDHi CNC;          2. Gang type tool post;
3. 3-color warning light;      4. Coolant system;
5. Lubrication system;          6. Manual clamping

NCH250F Flat Bed CNC LatheDownload

INQUIRY

PDF Format

Description

Specifications

Equipments

Optional

Technical parameters of NCH250F Flat Bed CNC Lathe

ITEMS		UNIT	NCH250F
Capacity	Max. turning diameter	mm	Φ250
	Swing over carriage	mm	Φ100
	Max. turning length	mm	150
	Max. diameter of bar	mm	20
Feed shaft	X/Z travel	mm	210/200
	X/Z torque	Nm	4/4
	Rapid feed of X/Z	mm/min	5/7
Spindle	Spindle speed range	rpm	3200
	Spindle motor power	kW	2.2
	Spindle nose	-	A2-3
	Spindle through-hole diameter	mm	Φ28
Tool holder	Tool holder form		Gang tool
	No. of tool stations	-	2
	Tool shank dimension	mm	16x16
	Boring tool size	mm	Φ20
Clamping	Clamping force		manual
Other	Guide type		Box way
Machine precision	Positioning accuracy of X/Z axis	mm	0.016/0.02
Machine precision	Repositioning accuracy of X/Z axis	mm	0.007/0.008
Dimensions	L x W x H (of lathe)	mm	1400x900x1350
Weight	Net weight	kg	600

Equipment of NCH250F Flat Bed CNC Lathe
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. 3-color warning light;
4. Coolant system;
5. Lubrication system;
6. Manual clamping collet;

Optional of NCH250F Flat Bed CNC Lathe
1. Hydraulic clamping device;
2. Pneumatic clamping device;
3. Collet (C45);

Technical parameters of NCH250F Flat Bed CNC Lathe

ITEMS		UNIT	NCH250F
Capacity	Max. turning diameter	mm	Φ250
	Swing over carriage	mm	Φ100
	Max. turning length	mm	150
	Max. diameter of bar	mm	20
Feed shaft	X/Z travel	mm	210/200
	X/Z torque	Nm	4/4
	Rapid feed of X/Z	mm/min	5/7
Spindle	Spindle speed range	rpm	3200
	Spindle motor power	kW	2.2
	Spindle nose	-	A2-3
	Spindle through-hole diameter	mm	Φ28
Tool holder	Tool holder form		Gang tool
	No. of tool stations	-	2
	Tool shank dimension	mm	16x16
	Boring tool size	mm	Φ20
Clamping	Clamping force		manual
Other	Guide type		Box way
Machine precision	Positioning accuracy of X/Z axis	mm	0.016/0.02
Machine precision	Repositioning accuracy of X/Z axis	mm	0.007/0.008
Dimensions	L x W x H (of lathe)	mm	1400x900x1350
Weight	Net weight	kg	600

Equipment of NCH250F Flat Bed CNC Lathe
1. GSK 980TDHi CNC;
2. Gang type tool post;
3. 3-color warning light;
4. Coolant system;
5. Lubrication system;
6. Manual clamping collet;

Optional of NCH250F Flat Bed CNC Lathe
1. Hydraulic clamping device;
2. Pneumatic clamping device;
3. Collet (C45);
