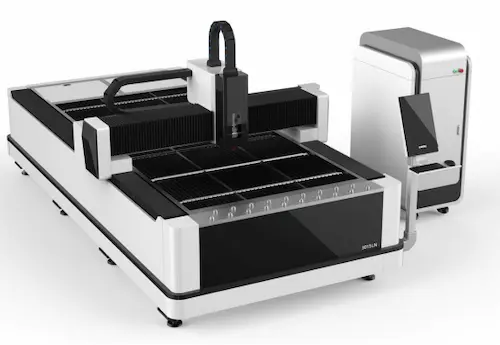

FL3015LN Dual Driver Gear Rack Laser Cutting Machine
- FL3015LN Dual Driver Gear Rack Fiber Laser Cutting MachineDownload
| Model | Unit | FL3015LN |
|---|---|---|
| Laser type | Raycus (optional IPG) | |
| Laser power | W | 500W, 750W, 1000W, 2000W, 3000W |
| Working area | mm | 3000x1500 |
| Repeated positioning accuracy | ±0.03 | |
| Max. running speed | m/min | 80 |
| Max. acceleration | 1G | |
| Specified voltage and frequency | 380V/50Hz/(60Hz)/60A | |
| Dimension | mm | 4440x2500x1860mm |
| Weight | kg | 3000 |
Main configuration of FL3015LN Dual Driver Gear Rack Fiber Laser Cutting Machine
| Fiber laser | Raycus |
|---|---|
| Cutting Head | RAYTOOLS/ or WSX |
| Servo motor | YASKAWA X:850W, Y:850W, Pansonic:Z:400W |
| Pneumatics make | Japan SMC |
| Solenoid Valve make | Japan SMC |
| Electricals make | Schneider |
| Rack and Pinion | APECX double racks |
| Gear box reducer make | France MOTOVARIO |
| LM guide | HINWIN Liner |
| Control system | Cypcut |
| Chiller | Tongfei Chiller |
Applications
FL3015LN fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.
3rd Generation Aviation Aluminum Gantry of FL3015LN Dual Driver Gear Rack Fiber Laser Cutting Machine
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
| Fiber laser | Raycus |
|---|---|
| Cutting Head | RAYTOOLS/ or WSX |
| Servo motor | YASKAWA X:850W, Y:850W, Pansonic:Z:400W |
| Pneumatics make | Japan SMC |
| Solenoid Valve make | Japan SMC |
| Electricals make | Schneider |
| Rack and Pinion | APECX double racks |
| Gear box reducer make | France MOTOVARIO |
| LM guide | HINWIN Liner |
| Control system | Cypcut |
| Chiller | Tongfei Chiller |
| Model | Unit | FL3015LN |
|---|---|---|
| Laser type | Raycus (optional IPG) | |
| Laser power | W | 500W, 750W, 1000W, 2000W, 3000W |
| Working area | mm | 3000x1500 |
| Repeated positioning accuracy | ±0.03 | |
| Max. running speed | m/min | 80 |
| Max. acceleration | 1G | |
| Specified voltage and frequency | 380V/50Hz/(60Hz)/60A | |
| Dimension | mm | 4440x2500x1860mm |
| Weight | kg | 3000 |
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
