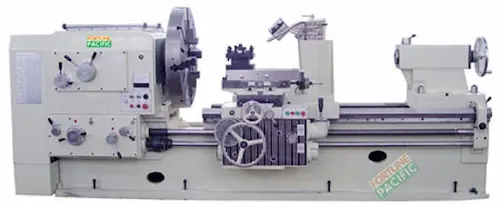

D850 B600 4tons Centre Manual Speed Turning Lathe

AC variable frequency speeding device with high power has been selected on Torn D850 B600 Lathe. The main driving has been driven by AC motor, 4 steps infinitely variable can be realized by sliding gear with excellent performance of torque and power.
  • D850 B600 4tons Centre Manual Speed Turning Metalworking Lathe MachineDownload
  • D850 B600 4tons Centro de velocidad manual de torneado de la máquina de torno de metalisteríaDownload
INQUIRY
Applications
Centre Manual Speed Turning Metalworking Lathe Machine application range is wide, can finely meet the requirements of every kind of industry machining, such as external cylinder, internal hole, slot, face and threads; besides, D850 B600 4tons Centre Manual Speed Turning Metalworking Lathe Machine can also meet the requirements of drilling, boring, broaching oil groove, keyway etc. Centre Manual Speed Turning Metalworking Lathe Machine is excellent equipment for turning axial, dished, sleeve and special type of surface workpiece.

Features
1. AC variable frequency speeding device with high power has been selected on Torn D850 B600 Lathe.
2. The main driving has been driven by AC motor, 4 steps infinitely variable can be realized by sliding gear with excellent performance of torque and power.
3. The operating system of Centre Manual Speed Turning Metalworking Lathe Machine is controlled by electric, hydraulic, mechanical mechanism;
4. Torn X and Z-axis has function of rapid traverse and combined feed, easy for operating.

Standard accessories
1. 4-jaw chuck;
2. Dead center;

3. Coolant system;
4. Work light;


Optional accessories
1. 4-jaw chuck;
2. Steady rest;

3. Roller supporting device;
4. Follow rest;

5. Grinding or milling head device;
6. Taper turning device;

7. Living center;
8. 2-axis or 3-axis DRO (Digital Read Out);


Technical parameters of D850 B600 4tons Centre Manual Speed Turning Metalworking Lathe Machine
Model Unit D850
Type   B600
Max. swing over bed mm(in) 850(33’’)
Max. swing over carriage mm(in) 520(20’’)
Max. swing over gap (for gap bed lathe) mm(in) 1150(45’’)
Max turning length mm(in) 1500~12000(60’’~475’’)
Max weight of workpiece between centers kg 4000
Width of bed mm(in) 600(24’’)
Spindle speed range r/min 5~40~80; 10~80~160; 20~160~315; 40~315~630
Spindle speed step   4 (infinitely variable speed)
Spindle bore diameter mm(in) 100(4’’)
Diameter of spindle front bearing mm(in) 160(6’’)
Taper of spindle bore   Metric 120
Spindle nose ISO A2-11
Section of tool shank mm(in) 32x32(1.3’’x1.3’’)
Swivel angle of tool post ° ±90°
Travel of tool post mm(in) 250(10’’)
Travel of cross slide mm(in) 600(24’’)
Rapid travel speed of tool post mm/min 900
Rapid travel speed of transverse mm/min 1800
Rapid travel speed of longitudinal mm/min 3640
Metric threads mm 56kinds; 1-120
Inch threads TPI 56kinds; 30-1/4’’
Module threads mm 56kinds; 0.5-60
Diametrical pitch threads DP 56kinds; 60-0.5
Longitudinal feeds mm/rev 64kinds; 0.08-9.6
Transverse feeds mm/rev 64kinds; 0.04-4.8
Longitudinal tool post feeds mm/rev 64kinds; 0.02-2.4
Diameter of tailstock sleeve mm(in) 120(5’’)
Taper of tailstock sleeve   MT-6
Travel of tailstock sleeve mm(in) 250(10’’)
Main motor power kW 15
Rapid travel motor power kW 1.1
Cooling pump motor power kW 0.15
Net weight (3m) kg 5300
Additional weight per 1m kg 1000
Overall dimension (L x W x H) (3m) mm 5150 x 1500 x 1500
Packing size (L x W x H) (3m) mm 5500 x 1900 x 1820
