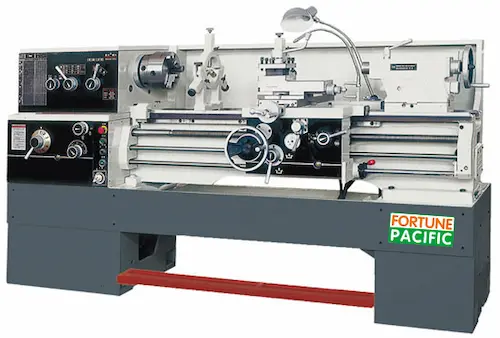

C6136ZK C6236ZK C6240ZK C6146ZK C6246ZK Lathe

C6136ZK C6236ZK C6240ZK C6146ZK C6246ZK Lathe Spindle bore Ф52mm, Range of spindle speed 40~1800rpm,Metric pitch threads 0.5~20mm/ 24, Inch threads 72~1-5/8 TPI/ 61; Module threads 0.25~10M.P/ 20; D.P.Threads 96~3-1/4 D/ 45;

C6136ZK C6236ZK C6140ZK C6240ZK C6146ZK C6246ZK LatheDownload

INQUIRY

PDF Format

Description

Technical Specification

MODELS	C6136ZK/C6236ZK	C6140ZK/C6240ZK	C6146ZK/C6246ZK
CAPACITY
Max.swing over bed	Ф360mm	Ф400mm	Ф460mm
Max.swing over carriage	Ф195mm	Ф255mm	Ф275mm
Max. swing over gap	Ф520mm	Ф570mm	Ф630mm
Width of bed	312mm
Max.length of workpiece	750/1000/1500mm
Max.length of workpiece	650/900/1400mm
Effective gap length	200mm
SPINDLE
Spindle bore	Ф52mm
Taper bore of spindle	M.T.NO.5 or 6	M.T.NO.6
Steps of spindle speed	12
Range of spindle speed	40~1800rpm
THREAD RANGE/NUMBER
Metric pitch threads	0.5~20mm/ 24
Inch threads	72~1-5/8 TPI/ 61
Module threads	0.25~10M.P/ 20
D.P.Threads	96~3-1/4 D/ 45
FEED
Range of longitudinal feeds	0.04~2.46 (0.0015″~0.0913″)mm
Range of cross feeds	0.03~1.23 (0.0006″~0.0365″)mm
TAILSTOCK SLEEVE
Taper bore	M.T.NO.4
Max.travel	120mm
External diameter	Ф60mm
OTHERS
Size of tool shank	20×20mm
Max travel of cross slide	210mm	240mm
Max.travel of compound rest	130mm
Main motor power	3/4kw	4/5.5kw
Overall dimensions(L×W×H)	2140(2360/2860)×1000×1200mm
Net weight	1600/1680/1840kg	1650/1730/1890kg		1700/1780/1940kg

Standard accessories
200mm 3-jaw chuck
250mm 4-jaw chuck
300mm face plate
Steady rest
Follow rest
4-way tool post
Footbrake
Working lamp
Lubrication and coolant
Tool box

Options
Chuck cover
Tool post cover
Leadscrew cover
2-axis DRO
