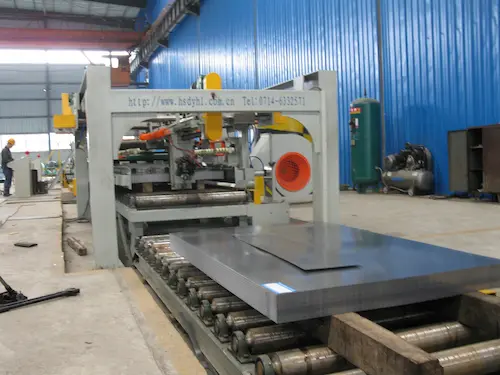

BS-T44 Plate Cut-To-Length Line
BS-T44 Plate Cut-To-Length Line Specifications
|
Model\Item |
Coil thickness (mm) |
Coil widht (mm) |
Cutting length (mm) |
Length accuracy (mm) |
Straighten accuracy (mm/m2) |
Feeding speed (m/min) |
Coil weight (ton) |
|
BS-T44/Q-2X1250 |
0.3-2 |
1000-1250 |
200-2500 |
±0.3 |
1-2 |
10-50 |
10 |
|
BS-T44/Q-2X1600 |
0.3-2 |
1000-1600 |
200-2500 |
±0.3 |
1-2 |
10-50 |
10 |
|
BS-T44/Q-2X1800 |
0.3-2 |
1000-1830 |
200-2500 |
±0.3 |
1-2 |
10-50 |
10 |
|
BS-T44/Q-3X1600 |
0.5-3 |
1000-1600 |
200-2500 |
±0.5 |
1-2 |
10-40 |
10 |
|
BS-T44/Q-3X2000 |
0.5-3 |
1000-2000 |
200-2500 |
±0.5 |
1-2 |
10-30 |
10 |
|
BS-T44/Q-6X2000 |
1.5-6 |
1000-2000 |
200-6000 |
±3.0 |
2-5 |
8-30 |
25 |
|
BS-T44/Q-8X2000 |
3-8 |
1000-2000 |
500-6000 |
±3.0 |
2-5 |
8-25 |
25 |
|
BS-T44/Q-10X2000 |
3-10 |
1000-2000 |
500-6000 |
±3.0 |
2-5 |
8-15 |
30 |
|
BS-T44/Q-12X2000 |
3-12 |
1800-2000 |
500-6000 |
±4.0 |
2-5 |
8-35 |
30 |
|
BS-T44/Q-16X2500 |
4-16 |
1800-2500 |
500-15000 |
±5.0 |
3-6 |
10-35 |
38 |
|
BS-T44/Q-25X2500 |
6-25 |
1800-2500 |
500-15000 |
±5.0 |
3-6 |
10-35 |
38 |
Plate Cut-To-Length Line Brief Introduction
Plate Cut-To-Length Line is utilized to produce smooth flat sheet with required dimensions in length and width by straightening and shearing operations from coils of different kinds.
Functions
This line mainly consists of coil loading cart, single or double expanding mandrel uncoiler, straightening machine, slitting machine, edge trimmer, waste edge coiler, shear machine, stacker etc. Between Plate Cut-To-Length Lines there are swinging loops, tracing devices, feeding device, correcting device and numerical feeding devices, etc. It is ideal for automatical coil processing components that can be used in machines, electronics, hydraulics and pneumatic systems.
Application
Our CTL Machine can be applied to produce sheet from various coils such as cold and hot rolled steel, silicon steel, stainless steel, color steel, aluminum and electroplated or coated metals. The cut-to-length line has been widely applied in various fields including automotive, agriculture vehicle, container, electric instrument, food package, building materials, etc.
Advantages
1.The CTL Machine is designed with reasonable layout;
2.Easy to operate;
3.High automation;
4.High productivity and precision with reasonable price.
Differences
The main differences of various Plate Cut-To-Length Lines lie in the coil thickness, width and length. In terms of cutting accuracy, the deviations of all the CTL Machine can be confined within small range, making our products are of high quality and fully meet the clients’ demands.
Plate Cut-To-Length Line is utilized to produce smooth flat sheet with required dimensions in length and width by straightening and shearing operations from coils of different kinds.
BS-T44 Plate Cut-To-Length Line Specifications
|
Model\Item |
Coil thickness (mm) |
Coil widht (mm) |
Cutting length (mm) |
Length accuracy (mm) |
Straighten accuracy (mm/m2) |
Feeding speed (m/min) |
Coil weight (ton) |
|
BS-T44/Q-2X1250 |
0.3-2 |
1000-1250 |
200-2500 |
±0.3 |
1-2 |
10-50 |
10 |
|
BS-T44/Q-2X1600 |
0.3-2 |
1000-1600 |
200-2500 |
±0.3 |
1-2 |
10-50 |
10 |
|
BS-T44/Q-2X1800 |
0.3-2 |
1000-1830 |
200-2500 |
±0.3 |
1-2 |
10-50 |
10 |
|
BS-T44/Q-3X1600 |
0.5-3 |
1000-1600 |
200-2500 |
±0.5 |
1-2 |
10-40 |
10 |
|
BS-T44/Q-3X2000 |
0.5-3 |
1000-2000 |
200-2500 |
±0.5 |
1-2 |
10-30 |
10 |
|
BS-T44/Q-6X2000 |
1.5-6 |
1000-2000 |
200-6000 |
±3.0 |
2-5 |
8-30 |
25 |
|
BS-T44/Q-8X2000 |
3-8 |
1000-2000 |
500-6000 |
±3.0 |
2-5 |
8-25 |
25 |
|
BS-T44/Q-10X2000 |
3-10 |
1000-2000 |
500-6000 |
±3.0 |
2-5 |
8-15 |
30 |
|
BS-T44/Q-12X2000 |
3-12 |
1800-2000 |
500-6000 |
±4.0 |
2-5 |
8-35 |
30 |
|
BS-T44/Q-16X2500 |
4-16 |
1800-2500 |
500-15000 |
±5.0 |
3-6 |
10-35 |
38 |
|
BS-T44/Q-25X2500 |
6-25 |
1800-2500 |
500-15000 |
±5.0 |
3-6 |
10-35 |
38 |
Application
Our CTL Machine can be applied to produce sheet from various coils such as cold and hot rolled steel, silicon steel, stainless steel, color steel, aluminum and electroplated or coated metals. The cut-to-length line has been widely applied in various fields including automotive, agriculture vehicle, container, electric instrument, food package, building materials, etc.
