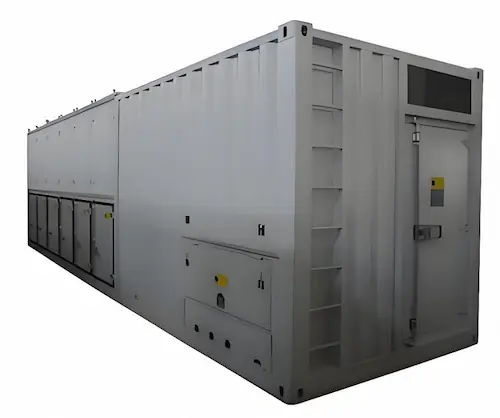

AC1200V-4200kW DC1200V-5400kW Load Bank
Fortune Pacific's AC1200V-4200KW / DC1200V-5400KW Load Bank delivers ultra-high-power testing for generators, UPS, and turbines. Features resistive/inductive loads, precision control, and rugged design for critical industrial power system validation.
Load bank Specifications
Operating Environment Parameter
Brands of Main Components
FORTUNE PACIFIC Load bank Functions
1. 3-line LED multiple function meter can display voltage and current of three phase and each phase, resistive power, power factor, apparent power, frequency and running time of generator set.
2. Whether load/unload by local control panel, remote control panel or by PC software control, user can pre-set the power then press the master load button.
3. Control mode: user can choose local control, remote control or intelligent control (PC control)
4. Local manual control: there is local control panel in load bank, with multiple load steps, min load step 50kW, controlled by buttons. (for maintenance use.)
5. Remote control: control the load bank test through the remote controller.
6. Intelligent control: user can control load bank by data processing software of PC to make automatic load/unload, display, record and manager the test data, form curve, graph and can be printed.
7. Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.
8. With data processing software, could form curves of current, voltage, resistive power, apparent power, and frequency, can be printed.
9. One-key load/unload: user can load or unload with one key easy to control.
10. Through Modbus communication protocol, user could build their own control system to control the load bank.
FORTUNE PACIFIC Load bank Data Processing Software Function
1. Communication type: through RJ45 interface.
2. Load mode: manual load or automatic load.
3. Manual load: input power and power factor.
4. Automatic load: User can set several periods of power and time, and in turn of 0%→25%→50%→75%→100% or 110% or other load profile to make automatic load testing.
5. Parallel testing: when several load banks parallel working, parameters of each load bank can be displayed and recorded, so do the final parameters of paralleling working.
6. Real-time parameter: Current, voltage, power, power factor, frequency, time, etc could be displayed by software.
7. Safety monitoring: User can know the working conditions of load bank through software indicating light. When in abnormal stop protection, software will indicate the reasons of stopping.
8. Data collection interval: the min saving interval is 1 second.
9. Data saving and in query: testing data could be saved in software; user can query at any time.
10. Data display: it could display real-time data and history data; user can print voltage, current, frequency, power graphs and charts.
11. Charts and graphs are output in format of JPG while testing data output in Excel format, and all can be printed.
Protection
1. User can press the emergency stop button in the panel to unload immediately when the load bank is abnormal while working.
2. Over-voltage: Automatic load dump and give alarm when voltage is over safety thresholds.
3. Over-heat protection: Automatically remove loading power and give alarm when temperature is over safety thresholds.
4. Short Circuit Protection: Fuse could avoid damage to equipment when short circuit or current overload.
5. Fan protection: Could not do load testing before working power of fan is on.
6. The load bank will remove all the loading power and give alarm when any fan is abnormal or with insufficient air volume, etc.
7. When control power cable in wrong connections, 3 phase fans can also work in good conditions.
8. Protection button: there are some protection buttons can be switched off when false alarm or for special requirements.
9. Enclosure grounding protection: To avoid electric shock caused by enclosure, grounding terminal will be installed.
10. Status alarm of door of control room: When make remote control or intelligent control, if door of control room is not close, the alarm light will be on with sound, can’t load.
11. Status alarm of door of air outlet: If door of air outlet is not open, the alarm light will be on with sound, can’t load.
12. Status alarm of door of maintenance room: If door of maintenance room is not close, the alarm light will be on with sound, can’t load.
13. Enclosure grounding protection: To avoid electrical shock, earth/grounding terminal will be installed.
Through control panel, user can choose and lock the control mode, start and stop the fan, set power value, control the circuit and read the data by the digital meter. There are emergency stop switch, many protection switches and indicating lights. Control panel is as below:
FORTUNE PACIFIC Load bank System Components
1. Resistor
Core Component of the Load – Dry Load Module
The dry load module, the core component of the load system, converts electrical energy into thermal energy to conduct continuous discharge tests on equipment such as generator sets and power supplies under test. Our company utilizes self-developed alloy resistor load modules. Given the safety-critical nature of dry loads—particularly their susceptibility to temperature variations—we implement rigorous quality control over temperature coefficients and heat dissipation performance. The resulting alloy resistors exhibit minimal temperature drift, gradual temperature rise, rapid heat dissipation, enhanced thermal resistance under full-load operation, and long-term stable performance. Below are the specific technical solutions and performance objectives:
1) Alloy Resistor Technology
4) Withstand Voltage:
Each resistor shall withstand DC 3000V or AC 1500V (50Hz) for 1 minute without breakdown. The operating voltage is set at 1/3 of the withstand voltage to ensure the resistor remains in good working condition without failure.
5) Cooling Fin Temperature:
The temperature of the cooling fins shall not exceed 300°C (with a maximum allowable value of 320°C), providing a sufficient safety margin to ensure the alloy resistor can operate continuously. The maximum rated temperature of the resistor is 1300°C.
6) Temperature Drift:
When the resistor temperature reaches 300–400°C, the temperature drift remains within ±2%, ensuring minimal resistance value variation under high-temperature conditions. This guarantees stable power loading across all temperature ranges.
7) Load Accuracy:
Load accuracy shall remain within ±3% across the entire temperature range (minimum to maximum operating temperatures).
8) Air Outlet Temperature:
The air outlet temperature shall not exceed 80°C (measured within 1 meter of the outlet).
2. High Voltage Load Insulation Process
In order to ensure the load safety under the condition of high voltage test, our company adopts a unique high voltage load insulation process.
Alloy resistance is the basic power consumption component of load, and the combination of alloy resistance in a certain way constitutes the power resistance module of load. Our company adopts a unique design method in the installation process of power resistance module, which greatly improves the load insulation strength, so as to solve the problem that the traditional medium and high voltage load insulation performance is insufficient and cannot be directly connected to the test circuit of high voltage generator set.
The high-voltage power resistance module of our company adopts high-strength insulation composite structure, fixed with special FRP profiles, and sealed around the power consumption resistance module, so as to effectively isolate the power resistance and the whole chassis, so that the whole power consumption module has the characteristics of high insulation strength, high temperature resistance, corrosion protection, moisture-proof and rain proof, and can adapt to various harsh environments It can maintain good insulation and reliability even under very humid conditions. At present, this resistance module technology has obtained the patent certificate of invention (Patent No.: ZL 201210304047.8).
The practice shows that the power consumption module with high-strength insulation composite structure has achieved better results than expected, thus realizing the safe and direct load test of high-voltage generator set, instead of relying on the high-power transformer to step down and then test the high-voltage generator set, which saves the cost of the test system, improves the accuracy and reliability of the test. The installation diagram of high-strength insulation composite structure is as follows:
3. Main Circuit
The main circuit of Fortune Pacific Load Bank directly controls the operation of the load part and adopts the contactor---fuse control protection mode. Each group of loads corresponds to a group of contactors---fuses. The system realizes the change of loading power through the on-off of contactor, and the fuse is used for circuit short-circuit protection.
The system uses high-voltage special vacuum contactor and fuse. Its insulation strength and creepage distance meet the specifications of high-voltage electrical appliances. It has strong arc extinguishing ability and can operate safely and reliably in the high-voltage test circuit.
| Items | AC1200V-4200kWDC1200V-5400kW |
| Rated Voltage & Frequency | AC1200V, 3 phase 4 wire, 50Hz, MAX 200Hz DC1200V |
| Max Load Power | 4200kW at 1200VAC 3 phase 3 wire 200Hz, delta wiring. 5400kW at DC1200V |
| Load Step | AC: 50kW, 100kW, 150kW, 200kW, 200kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, total 4200kW, minimum load step 50kW. DC: 50kW, 100kW, 150kW, 200kW, 200kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, 200kW, 500kW, 500kW, total 5400kW, minimum load step 50kW. Note: 1. When testing DC generator, using AC load bank circuit and use the additional 200kW, 500kW, 500kW. 2. When the input voltage is lower than 1200V, the load step power will be derated according to Ohm’s Law. |
| Star-Delta Converter | Using manual Star-Delta wiring to test AC or DC generator set |
| Load Tolerance (every step) | ±5% |
| Load Tolerance (overall) | ±3% |
| Display Meter | Multiple function meter 0.5 class |
| Fan Control Power | External 380VAC 3 phase 4 wire, 50Hz |
| Wiring | Loading power——busbar Fan and control power——terminal block |
| Communication Interface | RJ45 (Modbus TCP protocol) |
| Insulation | F |
| Way of Working | Continuous Working |
| Cooling | Forced air cooling, horizontal air intake and upwards exhaust cooling |
| CFM | 207,000CFM |
| Transportation | Hoisting, it has lifting eyes |
| Color | As customer’s requirements or as our design Gray 7035 |
| Dimensions (LxWxH) | 12192x2438x2591mm |
| Weight | Around 22,000kgs |
Operating Environment Parameter
| Working Place | Outdoor |
| Ambient Temperature | -20°C~+50°C |
| Relative Humidity | ≤95% |
| Altitude | ≤2500 meters |
| Atmospheric Pressure | 86~106kPa |
| Ventilation Distance | It needs 3 ~ 5 meters of air inlet without obstacles The air outlet is more than 3 meters from the roof or other obstacles. |
| Space Reserved | For the convenience of personnel access, there should be no obstacle 3 meters in front of the control room and 2 meters in front of the maintenance room |
| Safe Working Distance | There should be a separation fence 1.5 meters away from the load bank |
Brands of Main Components
| AC Contactor | China famous brands |
| DC Contactor | Schaltbau |
| Fuse | China famous brands, 50kAIC |
| PLC | Siemens |
| Alloy Resistor | China |
| Data Processing Software | China |
1. 3-line LED multiple function meter can display voltage and current of three phase and each phase, resistive power, power factor, apparent power, frequency and running time of generator set.
2. Whether load/unload by local control panel, remote control panel or by PC software control, user can pre-set the power then press the master load button.
3. Control mode: user can choose local control, remote control or intelligent control (PC control)
4. Local manual control: there is local control panel in load bank, with multiple load steps, min load step 50kW, controlled by buttons. (for maintenance use.)
5. Remote control: control the load bank test through the remote controller.
6. Intelligent control: user can control load bank by data processing software of PC to make automatic load/unload, display, record and manager the test data, form curve, graph and can be printed.
7. Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.
8. With data processing software, could form curves of current, voltage, resistive power, apparent power, and frequency, can be printed.
9. One-key load/unload: user can load or unload with one key easy to control.
10. Through Modbus communication protocol, user could build their own control system to control the load bank.
FORTUNE PACIFIC Load bank Data Processing Software Function
1. Communication type: through RJ45 interface.
2. Load mode: manual load or automatic load.
3. Manual load: input power and power factor.
4. Automatic load: User can set several periods of power and time, and in turn of 0%→25%→50%→75%→100% or 110% or other load profile to make automatic load testing.
5. Parallel testing: when several load banks parallel working, parameters of each load bank can be displayed and recorded, so do the final parameters of paralleling working.
6. Real-time parameter: Current, voltage, power, power factor, frequency, time, etc could be displayed by software.
7. Safety monitoring: User can know the working conditions of load bank through software indicating light. When in abnormal stop protection, software will indicate the reasons of stopping.
8. Data collection interval: the min saving interval is 1 second.
9. Data saving and in query: testing data could be saved in software; user can query at any time.
10. Data display: it could display real-time data and history data; user can print voltage, current, frequency, power graphs and charts.
11. Charts and graphs are output in format of JPG while testing data output in Excel format, and all can be printed.
Protection
1. User can press the emergency stop button in the panel to unload immediately when the load bank is abnormal while working.
2. Over-voltage: Automatic load dump and give alarm when voltage is over safety thresholds.
3. Over-heat protection: Automatically remove loading power and give alarm when temperature is over safety thresholds.
4. Short Circuit Protection: Fuse could avoid damage to equipment when short circuit or current overload.
5. Fan protection: Could not do load testing before working power of fan is on.
6. The load bank will remove all the loading power and give alarm when any fan is abnormal or with insufficient air volume, etc.
7. When control power cable in wrong connections, 3 phase fans can also work in good conditions.
8. Protection button: there are some protection buttons can be switched off when false alarm or for special requirements.
9. Enclosure grounding protection: To avoid electric shock caused by enclosure, grounding terminal will be installed.
10. Status alarm of door of control room: When make remote control or intelligent control, if door of control room is not close, the alarm light will be on with sound, can’t load.
11. Status alarm of door of air outlet: If door of air outlet is not open, the alarm light will be on with sound, can’t load.
12. Status alarm of door of maintenance room: If door of maintenance room is not close, the alarm light will be on with sound, can’t load.
13. Enclosure grounding protection: To avoid electrical shock, earth/grounding terminal will be installed.
Through control panel, user can choose and lock the control mode, start and stop the fan, set power value, control the circuit and read the data by the digital meter. There are emergency stop switch, many protection switches and indicating lights. Control panel is as below:
FORTUNE PACIFIC Load bank System Components
1. Resistor
Core Component of the Load – Dry Load Module
The dry load module, the core component of the load system, converts electrical energy into thermal energy to conduct continuous discharge tests on equipment such as generator sets and power supplies under test. Our company utilizes self-developed alloy resistor load modules. Given the safety-critical nature of dry loads—particularly their susceptibility to temperature variations—we implement rigorous quality control over temperature coefficients and heat dissipation performance. The resulting alloy resistors exhibit minimal temperature drift, gradual temperature rise, rapid heat dissipation, enhanced thermal resistance under full-load operation, and long-term stable performance. Below are the specific technical solutions and performance objectives:
1) Alloy Resistor Technology
- Material: Nickel-Chromium Alloy (NiCr6023)
- Temperature Resistance: High-temperature rated, with a maximum operating temperature of 1,300°C
- Electrical Performance: Stable conductivity with ultra-low temperature drift (5×10⁻⁵/°C), representing cutting-edge technology in alloy resistor manufacturing.
- Resistor Structure:
- Case Material: Low-thermal-expansion, oxidation-resistant Stainless Steel 321 (1Cr18Ni9Ti)
- Filling Material: Export-grade electrical crystalline magnesium oxide powder (Sg-9), compliant with performance standard JBY-TE4088-199
- Magnesium oxide density: 3.0 g/cm³ ± 0.2
- Fasteners: Corrosion-resistant, high-temperature Stainless Steel 321 (1Cr18Ni9Ti)
- Quality Control: Stringent material traceability ensures highly consistent performance across mass-produced alloy resistors.
- Material: Stainless Steel 321
- Dimensions:
- Height: 7 mm ± 2 mm
- Thickness: 0.4 mm ± 0.2 mm
- Winding Spacing: ≤ 3 mm ± 0.2 mm
4) Withstand Voltage:
Each resistor shall withstand DC 3000V or AC 1500V (50Hz) for 1 minute without breakdown. The operating voltage is set at 1/3 of the withstand voltage to ensure the resistor remains in good working condition without failure.
5) Cooling Fin Temperature:
The temperature of the cooling fins shall not exceed 300°C (with a maximum allowable value of 320°C), providing a sufficient safety margin to ensure the alloy resistor can operate continuously. The maximum rated temperature of the resistor is 1300°C.
6) Temperature Drift:
When the resistor temperature reaches 300–400°C, the temperature drift remains within ±2%, ensuring minimal resistance value variation under high-temperature conditions. This guarantees stable power loading across all temperature ranges.
7) Load Accuracy:
Load accuracy shall remain within ±3% across the entire temperature range (minimum to maximum operating temperatures).
8) Air Outlet Temperature:
The air outlet temperature shall not exceed 80°C (measured within 1 meter of the outlet).
2. High Voltage Load Insulation Process
In order to ensure the load safety under the condition of high voltage test, our company adopts a unique high voltage load insulation process.
Alloy resistance is the basic power consumption component of load, and the combination of alloy resistance in a certain way constitutes the power resistance module of load. Our company adopts a unique design method in the installation process of power resistance module, which greatly improves the load insulation strength, so as to solve the problem that the traditional medium and high voltage load insulation performance is insufficient and cannot be directly connected to the test circuit of high voltage generator set.
The high-voltage power resistance module of our company adopts high-strength insulation composite structure, fixed with special FRP profiles, and sealed around the power consumption resistance module, so as to effectively isolate the power resistance and the whole chassis, so that the whole power consumption module has the characteristics of high insulation strength, high temperature resistance, corrosion protection, moisture-proof and rain proof, and can adapt to various harsh environments It can maintain good insulation and reliability even under very humid conditions. At present, this resistance module technology has obtained the patent certificate of invention (Patent No.: ZL 201210304047.8).
The practice shows that the power consumption module with high-strength insulation composite structure has achieved better results than expected, thus realizing the safe and direct load test of high-voltage generator set, instead of relying on the high-power transformer to step down and then test the high-voltage generator set, which saves the cost of the test system, improves the accuracy and reliability of the test. The installation diagram of high-strength insulation composite structure is as follows:
3. Main Circuit
The main circuit of Fortune Pacific Load Bank directly controls the operation of the load part and adopts the contactor---fuse control protection mode. Each group of loads corresponds to a group of contactors---fuses. The system realizes the change of loading power through the on-off of contactor, and the fuse is used for circuit short-circuit protection.
The system uses high-voltage special vacuum contactor and fuse. Its insulation strength and creepage distance meet the specifications of high-voltage electrical appliances. It has strong arc extinguishing ability and can operate safely and reliably in the high-voltage test circuit.
Load bank Specifications
| Items | AC1200V-4200kWDC1200V-5400kW |
| Rated Voltage & Frequency | AC1200V, 3 phase 4 wire, 50Hz, MAX 200Hz DC1200V |
| Max Load Power | 4200kW at 1200VAC 3 phase 3 wire 200Hz, delta wiring. 5400kW at DC1200V |
| Load Step | AC: 50kW, 100kW, 150kW, 200kW, 200kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, total 4200kW, minimum load step 50kW. DC: 50kW, 100kW, 150kW, 200kW, 200kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, 500kW, 200kW, 500kW, 500kW, total 5400kW, minimum load step 50kW. Note: 1. When testing DC generator, using AC load bank circuit and use the additional 200kW, 500kW, 500kW. 2. When the input voltage is lower than 1200V, the load step power will be derated according to Ohm’s Law. |
| Star-Delta Converter | Using manual Star-Delta wiring to test AC or DC generator set |
| Load Tolerance (every step) | ±5% |
| Load Tolerance (overall) | ±3% |
| Display Meter | Multiple function meter 0.5 class |
| Fan Control Power | External 380VAC 3 phase 4 wire, 50Hz |
| Wiring | Loading power——busbar Fan and control power——terminal block |
| Communication Interface | RJ45 (Modbus TCP protocol) |
| Insulation | F |
| Way of Working | Continuous Working |
| Cooling | Forced air cooling, horizontal air intake and upwards exhaust cooling |
| CFM | 207,000CFM |
| Transportation | Hoisting, it has lifting eyes |
| Color | As customer’s requirements or as our design Gray 7035 |
| Dimensions (LxWxH) | 12192x2438x2591mm |
| Weight | Around 22,000kgs |
FORTUNE PACIFIC Load bank Functions
1. 3-line LED multiple function meter can display voltage and current of three phase and each phase, resistive power, power factor, apparent power, frequency and running time of generator set.
2. Whether load/unload by local control panel, remote control panel or by PC software control, user can pre-set the power then press the master load button.
3. Control mode: user can choose local control, remote control or intelligent control (PC control)
4. Local manual control: there is local control panel in load bank, with multiple load steps, min load step 50kW, controlled by buttons. (for maintenance use.)
5. Remote control: control the load bank test through the remote controller.
6. Intelligent control: user can control load bank by data processing software of PC to make automatic load/unload, display, record and manager the test data, form curve, graph and can be printed.
7. Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.
8. With data processing software, could form curves of current, voltage, resistive power, apparent power, and frequency, can be printed.
9. One-key load/unload: user can load or unload with one key easy to control.
10. Through Modbus communication protocol, user could build their own control system to control the load bank.
FORTUNE PACIFIC Load bank Data Processing Software Function
1. Communication type: through RJ45 interface.
2. Load mode: manual load or automatic load.
3. Manual load: input power and power factor.
4. Automatic load: User can set several periods of power and time, and in turn of 0%→25%→50%→75%→100% or 110% or other load profile to make automatic load testing.
5. Parallel testing: when several load banks parallel working, parameters of each load bank can be displayed and recorded, so do the final parameters of paralleling working.
6. Real-time parameter: Current, voltage, power, power factor, frequency, time, etc could be displayed by software.
7. Safety monitoring: User can know the working conditions of load bank through software indicating light. When in abnormal stop protection, software will indicate the reasons of stopping.
8. Data collection interval: the min saving interval is 1 second.
9. Data saving and in query: testing data could be saved in software; user can query at any time.
10. Data display: it could display real-time data and history data; user can print voltage, current, frequency, power graphs and charts.
11. Charts and graphs are output in format of JPG while testing data output in Excel format, and all can be printed.
Protection
1. User can press the emergency stop button in the panel to unload immediately when the load bank is abnormal while working.
2. Over-voltage: Automatic load dump and give alarm when voltage is over safety thresholds.
3. Over-heat protection: Automatically remove loading power and give alarm when temperature is over safety thresholds.
4. Short Circuit Protection: Fuse could avoid damage to equipment when short circuit or current overload.
5. Fan protection: Could not do load testing before working power of fan is on.
6. The load bank will remove all the loading power and give alarm when any fan is abnormal or with insufficient air volume, etc.
7. When control power cable in wrong connections, 3 phase fans can also work in good conditions.
8. Protection button: there are some protection buttons can be switched off when false alarm or for special requirements.
9. Enclosure grounding protection: To avoid electric shock caused by enclosure, grounding terminal will be installed.
10. Status alarm of door of control room: When make remote control or intelligent control, if door of control room is not close, the alarm light will be on with sound, can’t load.
11. Status alarm of door of air outlet: If door of air outlet is not open, the alarm light will be on with sound, can’t load.
12. Status alarm of door of maintenance room: If door of maintenance room is not close, the alarm light will be on with sound, can’t load.
13. Enclosure grounding protection: To avoid electrical shock, earth/grounding terminal will be installed.
Through control panel, user can choose and lock the control mode, start and stop the fan, set power value, control the circuit and read the data by the digital meter. There are emergency stop switch, many protection switches and indicating lights. Control panel is as below:
FORTUNE PACIFIC Load bank System Components
1. Resistor
Core Component of the Load – Dry Load Module
The dry load module, the core component of the load system, converts electrical energy into thermal energy to conduct continuous discharge tests on equipment such as generator sets and power supplies under test. Our company utilizes self-developed alloy resistor load modules. Given the safety-critical nature of dry loads—particularly their susceptibility to temperature variations—we implement rigorous quality control over temperature coefficients and heat dissipation performance. The resulting alloy resistors exhibit minimal temperature drift, gradual temperature rise, rapid heat dissipation, enhanced thermal resistance under full-load operation, and long-term stable performance. Below are the specific technical solutions and performance objectives:
1) Alloy Resistor Technology
4) Withstand Voltage:
Each resistor shall withstand DC 3000V or AC 1500V (50Hz) for 1 minute without breakdown. The operating voltage is set at 1/3 of the withstand voltage to ensure the resistor remains in good working condition without failure.
5) Cooling Fin Temperature:
The temperature of the cooling fins shall not exceed 300°C (with a maximum allowable value of 320°C), providing a sufficient safety margin to ensure the alloy resistor can operate continuously. The maximum rated temperature of the resistor is 1300°C.
6) Temperature Drift:
When the resistor temperature reaches 300–400°C, the temperature drift remains within ±2%, ensuring minimal resistance value variation under high-temperature conditions. This guarantees stable power loading across all temperature ranges.
7) Load Accuracy:
Load accuracy shall remain within ±3% across the entire temperature range (minimum to maximum operating temperatures).
8) Air Outlet Temperature:
The air outlet temperature shall not exceed 80°C (measured within 1 meter of the outlet).
2. High Voltage Load Insulation Process
In order to ensure the load safety under the condition of high voltage test, our company adopts a unique high voltage load insulation process.
Alloy resistance is the basic power consumption component of load, and the combination of alloy resistance in a certain way constitutes the power resistance module of load. Our company adopts a unique design method in the installation process of power resistance module, which greatly improves the load insulation strength, so as to solve the problem that the traditional medium and high voltage load insulation performance is insufficient and cannot be directly connected to the test circuit of high voltage generator set.
The high-voltage power resistance module of our company adopts high-strength insulation composite structure, fixed with special FRP profiles, and sealed around the power consumption resistance module, so as to effectively isolate the power resistance and the whole chassis, so that the whole power consumption module has the characteristics of high insulation strength, high temperature resistance, corrosion protection, moisture-proof and rain proof, and can adapt to various harsh environments It can maintain good insulation and reliability even under very humid conditions. At present, this resistance module technology has obtained the patent certificate of invention (Patent No.: ZL 201210304047.8).
The practice shows that the power consumption module with high-strength insulation composite structure has achieved better results than expected, thus realizing the safe and direct load test of high-voltage generator set, instead of relying on the high-power transformer to step down and then test the high-voltage generator set, which saves the cost of the test system, improves the accuracy and reliability of the test. The installation diagram of high-strength insulation composite structure is as follows:
3. Main Circuit
The main circuit of Fortune Pacific Load Bank directly controls the operation of the load part and adopts the contactor---fuse control protection mode. Each group of loads corresponds to a group of contactors---fuses. The system realizes the change of loading power through the on-off of contactor, and the fuse is used for circuit short-circuit protection.
The system uses high-voltage special vacuum contactor and fuse. Its insulation strength and creepage distance meet the specifications of high-voltage electrical appliances. It has strong arc extinguishing ability and can operate safely and reliably in the high-voltage test circuit.
1. 3-line LED multiple function meter can display voltage and current of three phase and each phase, resistive power, power factor, apparent power, frequency and running time of generator set.
2. Whether load/unload by local control panel, remote control panel or by PC software control, user can pre-set the power then press the master load button.
3. Control mode: user can choose local control, remote control or intelligent control (PC control)
4. Local manual control: there is local control panel in load bank, with multiple load steps, min load step 50kW, controlled by buttons. (for maintenance use.)
5. Remote control: control the load bank test through the remote controller.
6. Intelligent control: user can control load bank by data processing software of PC to make automatic load/unload, display, record and manager the test data, form curve, graph and can be printed.
7. Control mode interlock: there is switch in control panel to choose control mode, other control mode is invalid if user choose one control mode.
8. With data processing software, could form curves of current, voltage, resistive power, apparent power, and frequency, can be printed.
9. One-key load/unload: user can load or unload with one key easy to control.
10. Through Modbus communication protocol, user could build their own control system to control the load bank.
FORTUNE PACIFIC Load bank Data Processing Software Function
1. Communication type: through RJ45 interface.
2. Load mode: manual load or automatic load.
3. Manual load: input power and power factor.
4. Automatic load: User can set several periods of power and time, and in turn of 0%→25%→50%→75%→100% or 110% or other load profile to make automatic load testing.
5. Parallel testing: when several load banks parallel working, parameters of each load bank can be displayed and recorded, so do the final parameters of paralleling working.
6. Real-time parameter: Current, voltage, power, power factor, frequency, time, etc could be displayed by software.
7. Safety monitoring: User can know the working conditions of load bank through software indicating light. When in abnormal stop protection, software will indicate the reasons of stopping.
8. Data collection interval: the min saving interval is 1 second.
9. Data saving and in query: testing data could be saved in software; user can query at any time.
10. Data display: it could display real-time data and history data; user can print voltage, current, frequency, power graphs and charts.
11. Charts and graphs are output in format of JPG while testing data output in Excel format, and all can be printed.
Protection
1. User can press the emergency stop button in the panel to unload immediately when the load bank is abnormal while working.
2. Over-voltage: Automatic load dump and give alarm when voltage is over safety thresholds.
3. Over-heat protection: Automatically remove loading power and give alarm when temperature is over safety thresholds.
4. Short Circuit Protection: Fuse could avoid damage to equipment when short circuit or current overload.
5. Fan protection: Could not do load testing before working power of fan is on.
6. The load bank will remove all the loading power and give alarm when any fan is abnormal or with insufficient air volume, etc.
7. When control power cable in wrong connections, 3 phase fans can also work in good conditions.
8. Protection button: there are some protection buttons can be switched off when false alarm or for special requirements.
9. Enclosure grounding protection: To avoid electric shock caused by enclosure, grounding terminal will be installed.
10. Status alarm of door of control room: When make remote control or intelligent control, if door of control room is not close, the alarm light will be on with sound, can’t load.
11. Status alarm of door of air outlet: If door of air outlet is not open, the alarm light will be on with sound, can’t load.
12. Status alarm of door of maintenance room: If door of maintenance room is not close, the alarm light will be on with sound, can’t load.
13. Enclosure grounding protection: To avoid electrical shock, earth/grounding terminal will be installed.
Through control panel, user can choose and lock the control mode, start and stop the fan, set power value, control the circuit and read the data by the digital meter. There are emergency stop switch, many protection switches and indicating lights. Control panel is as below:
FORTUNE PACIFIC Load bank System Components
1. Resistor
Core Component of the Load – Dry Load Module
The dry load module, the core component of the load system, converts electrical energy into thermal energy to conduct continuous discharge tests on equipment such as generator sets and power supplies under test. Our company utilizes self-developed alloy resistor load modules. Given the safety-critical nature of dry loads—particularly their susceptibility to temperature variations—we implement rigorous quality control over temperature coefficients and heat dissipation performance. The resulting alloy resistors exhibit minimal temperature drift, gradual temperature rise, rapid heat dissipation, enhanced thermal resistance under full-load operation, and long-term stable performance. Below are the specific technical solutions and performance objectives:
1) Alloy Resistor Technology
- Material: Nickel-Chromium Alloy (NiCr6023)
- Temperature Resistance: High-temperature rated, with a maximum operating temperature of 1,300°C
- Electrical Performance: Stable conductivity with ultra-low temperature drift (5×10⁻⁵/°C), representing cutting-edge technology in alloy resistor manufacturing.
- Resistor Structure:
- Case Material: Low-thermal-expansion, oxidation-resistant Stainless Steel 321 (1Cr18Ni9Ti)
- Filling Material: Export-grade electrical crystalline magnesium oxide powder (Sg-9), compliant with performance standard JBY-TE4088-199
- Magnesium oxide density: 3.0 g/cm³ ± 0.2
- Fasteners: Corrosion-resistant, high-temperature Stainless Steel 321 (1Cr18Ni9Ti)
- Quality Control: Stringent material traceability ensures highly consistent performance across mass-produced alloy resistors.
- Material: Stainless Steel 321
- Dimensions:
- Height: 7 mm ± 2 mm
- Thickness: 0.4 mm ± 0.2 mm
- Winding Spacing: ≤ 3 mm ± 0.2 mm
4) Withstand Voltage:
Each resistor shall withstand DC 3000V or AC 1500V (50Hz) for 1 minute without breakdown. The operating voltage is set at 1/3 of the withstand voltage to ensure the resistor remains in good working condition without failure.
5) Cooling Fin Temperature:
The temperature of the cooling fins shall not exceed 300°C (with a maximum allowable value of 320°C), providing a sufficient safety margin to ensure the alloy resistor can operate continuously. The maximum rated temperature of the resistor is 1300°C.
6) Temperature Drift:
When the resistor temperature reaches 300–400°C, the temperature drift remains within ±2%, ensuring minimal resistance value variation under high-temperature conditions. This guarantees stable power loading across all temperature ranges.
7) Load Accuracy:
Load accuracy shall remain within ±3% across the entire temperature range (minimum to maximum operating temperatures).
8) Air Outlet Temperature:
The air outlet temperature shall not exceed 80°C (measured within 1 meter of the outlet).
2. High Voltage Load Insulation Process
In order to ensure the load safety under the condition of high voltage test, our company adopts a unique high voltage load insulation process.
Alloy resistance is the basic power consumption component of load, and the combination of alloy resistance in a certain way constitutes the power resistance module of load. Our company adopts a unique design method in the installation process of power resistance module, which greatly improves the load insulation strength, so as to solve the problem that the traditional medium and high voltage load insulation performance is insufficient and cannot be directly connected to the test circuit of high voltage generator set.
The high-voltage power resistance module of our company adopts high-strength insulation composite structure, fixed with special FRP profiles, and sealed around the power consumption resistance module, so as to effectively isolate the power resistance and the whole chassis, so that the whole power consumption module has the characteristics of high insulation strength, high temperature resistance, corrosion protection, moisture-proof and rain proof, and can adapt to various harsh environments It can maintain good insulation and reliability even under very humid conditions. At present, this resistance module technology has obtained the patent certificate of invention (Patent No.: ZL 201210304047.8).
The practice shows that the power consumption module with high-strength insulation composite structure has achieved better results than expected, thus realizing the safe and direct load test of high-voltage generator set, instead of relying on the high-power transformer to step down and then test the high-voltage generator set, which saves the cost of the test system, improves the accuracy and reliability of the test. The installation diagram of high-strength insulation composite structure is as follows:
3. Main Circuit
The main circuit of Fortune Pacific Load Bank directly controls the operation of the load part and adopts the contactor---fuse control protection mode. Each group of loads corresponds to a group of contactors---fuses. The system realizes the change of loading power through the on-off of contactor, and the fuse is used for circuit short-circuit protection.
The system uses high-voltage special vacuum contactor and fuse. Its insulation strength and creepage distance meet the specifications of high-voltage electrical appliances. It has strong arc extinguishing ability and can operate safely and reliably in the high-voltage test circuit.
Discover the ultimate AC1200V 4200kW DC1200V 5400kW load bank solution for rigorous high-power electrical testing. This industrial-grade resistive load bank features robust modular construction with stainless steel heating elements, precision control systems, and comprehensive safety protection (IP23 rated). Engineered for testing generators, UPS systems, battery banks, turbines, and power distribution networks up to 1200V AC/DC, it ensures accurate load simulation, performance validation, and system reliability checks. Key advantages include exceptional power density, rapid response dynamic load simulation, cascadable design for flexible capacity, real-time data monitoring, and advanced thermal management with forced air cooling. Essential for commissioning, maintenance, and certification of critical power systems across energy, maritime, data centers, and manufacturing sectors. This high-capacity testing equipment guarantees operational safety, voltage fluctuation compensation, harmonic analysis capability, and long-term durability under continuous full-load operation. Descubra el banco de carga resistivo definitivo AC1200V 4200kW DC1200V 5400kW para pruebas eléctricas de alta potencia. Este banco de carga industrial ofrece capacidad masiva, construcción modular robusta con elementos calefactores de acero inoxidable y sistema de control de precisión con protección integral (IP23). Ideal para pruebas de generadores, UPS, bancos de baterías, turbinas eólicas y redes eléctricas hasta 1200V AC/DC, garantizando simulación de carga precisa, validación de rendimiento y verificación de confiabilidad del sistema. Beneficios clave: densidad de potencia excepcional, simulación dinámica de carga de respuesta rápida, diseño escalable para capacidad flexible, monitoreo de datos en tiempo real y gestión térmica avanzada con ventilación forzada. Equipo esencial para puesta en marcha, mantenimiento predictivo y certificación en sectores de energía, marítimo, centros de datos e industrial, asegurando seguridad operativa, estabilidad de voltaje, análisis de armónicos y máxima durabilidad. Découvrez la solution ultime de banc de charge résistif AC1200V 4200kW DC1200V 5400kW pour les tests électriques haute puissance exigeants. Ce banc de charge industriel de forte capacité offre une construction modulaire robuste avec éléments chauffants en acier inoxydable et système de contrôle de précision avec protection intégrale (IP23). Conçu pour tester groupes électrogènes, onduleurs, batteries, turbines et réseaux électriques jusqu'à 1200V AC/DC, il assure une simulation de charge précise, une validation des performances et une vérification de la fiabilité du système. Avantages majeurs : densité de puissance exceptionnelle, simulation de charge dynamique à réponse rapide, conception cascadable pour capacité flexible, surveillance des données en temps réel et gestion thermique avancée avec refroidissement forcé. Équipement essentiel pour la mise en service, la maintenance et la certification dans les secteurs de l'énergie, maritime, data centers et industrie, garantissant sécurité opérationnelle, compensation des fluctuations de tension, analyse des harmoniques et durabilité à long terme. اكتشف الحل الأمثل لوحدة حمل مقاوم 4200 كيلوواط تيار متردد 1200 فولت / 5400 كيلوواط تيار مستمر 1200 فولت لاختبارات الطاقة الكهربائية العالية. تمتاز وحدة الحمل الصناعية هذه بسعة هائلة، وبناء معياري قوي بعناصر تسخين من الفولاذ المقاوم للصدأ، ونظام تحكم دقيق مع حماية شاملة (تصنيف IP23). مثالية لاختبار المولدات الكهربائية، أنظمة UPS، بنوك البطاريات، التوربينات، وشبكات التوزيع الكهربائي حتى 1200 فولت تيار متردد/تيار مستمر، تضمن محاكاة حمل دقيقة، التحقق من الأداء، واختبار موثوقية النظام. المزايا الرئيسية: كثافة طاقة استثنائية، محاكاة حمل ديناميكي سريع الاستجابة، تصميم قابل للتوسيع، مراقبة بيانات في الوقت الفعلي، وإدارة حرارية متقدمة مع تبريد هواء قسري. معدات أساسية للتشغيل، الصيانة الوقائية، والاعتماد في قطاعات الطاقة، البحرية، مراكز البيانات، والصناعة، لضمان الأمان التشغيلي، استقرار الجهد، تحليل التوافقيات، والمتانة طويلة الأمد تحت التشغيل بكامل الحمل. Откройте для себя премиальное резистивное нагрузочное устройство AC1200V 4200кВт DC1200V 5400кВт для высокомощных электрических испытаний. Этот промышленный нагрузочный стенд высокой мощности отличается прочной модульной конструкцией с нагревательными элементами из нержавеющей стали, системой точного управления и комплексной защитой (IP23). Идеально подходит для тестирования генераторов, ИБП, аккумуляторных батарей, турбин и распределительных сетей до 1200В AC/DC, обеспечивая точное моделирование нагрузки, проверку производительности и надежности системы. Ключевые преимущества: исключительная плотность мощности, быстрое динамическое изменение нагрузки, каскадная конструкция для гибкой мощности, мониторинг данных в реальном времени, эффективное воздушное охлаждение. Необходимое оборудование для ввода в эксплуатацию, технического обслуживания и сертификации в энергетике, судостроении, ЦОД и промышленности, гарантируя безопасность, стабилизацию напряжения, анализ гармоник и долговечность. Descubra a solução definitiva de banco de carga resistiva AC1200V 4200kW DC1200V 5400kW para testes elétricos de alta potência. Este banco de carga industrial de alta capacidade oferece construção modular robusta com elementos de aquecimento em aço inoxidável e sistema de controle de precisão com proteção integral (IP23). Ideal para testes de geradores, no-breaks, bancos de baterias, turbinas e redes de distribuição de energia até 1200V AC/DC, garantindo simulação de carga precisa, validação de desempenho e verificação de confiabilidade do sistema. Vantagens-chave: densidade de potência excepcional, simulação dinâmica de carga de resposta rápida, design cascatável para capacidade flexível, monitoramento de dados em tempo real e gerenciamento térmico avançado com resfriamento forçado. Equipamento essencial para comissionamento, manutenção preditiva e certificação nos setores de energia, marítimo, data centers e industrial, assegurando segurança operacional, estabilidade de tensão, análise harmônica e máxima durabilidade. Entdecken Sie die ultimative AC1200V 4200kW DC1200V 5400kW Widerstandsbelastungslösung für anspruchsvolle Hochleistungstests. Diese industrielle Lastbank mit hoher Kapazität bietet robusten modularen Aufbau mit Heizelementen aus Edelstahl, präzise Steuerungstechnik und umfassenden Schutz (IP23). Konzipiert für das Testen von Generatoren, USV-Anlagen, Batteriespeichern, Turbinen und Stromverteilernetzen bis 1200V AC/DC. Gewährleistet präzise Lastsimulation, Leistungsvalidierung und Zuverlässigkeitsprüfungen. Wichtige Vorteile: Ausgezeichnete Leistungsdichte, dynamische Lastsimulation mit schneller Ansprechzeit, kaskadierbares Design für flexible Kapazität, Echtzeit-Datenüberwachung und forcierte Luftkühlung. Unverzichtbar für Inbetriebnahme, Wartung und Zertifizierung in Energieerzeugung, Schifffahrt, Rechenzentren und Industrie. Garantiert Betriebssicherheit, Spannungsstabilität, Oberschwingungsanalyse und Langzeitbeständigkeit unter Dauerlast. Temukan solusi bank beban resistif AC1200V 4200kW DC1200V 5400kW unggulan untuk pengujian listrik daya tinggi yang ketat. Bank beban industri kapasitas besar ini menawarkan konstruksi modular kokoh dengan elemen pemanas stainless steel, sistem kontrol presisi, dan perlindungan komprehensif (IP23). Dirancang untuk menguji generator, sistem UPS, bank baterai, turbin, dan jaringan distribusi daya hingga 1200V AC/DC, memastikan simulasi beban akurat, validasi kinerja, dan pemeriksaan keandalan sistem. Keunggulan utama: densitas daya luar biasa, simulasi beban dinamis respons cepat, desain bertingkat untuk kapasitas fleksibel, pemantauan data real-time, dan manajemen termal canggih dengan pendingin udara paksa. Peralatan penting untuk komisioning, pemeliharaan prediktif, dan sertifikasi di sektor energi, kelautan, pusat data, dan industri, menjamin keamanan operasional, kompensasi fluktuasi tegangan, analisis harmonik, serta daya tahan jangka panjang. Scopri la soluzione definitiva di banco di carico resistivo AC1200V 4200kW DC1200V 5400kW per test elettrici ad alta potenza. Questo banco di carico industriale ad alta capacità offre una costruzione modulare robusta con elementi riscaldanti in acciaio inossidabile e sistema di controllo di precisione con protezione completa (IP23). Ideale per testare generatori, gruppi di continuità UPS, banchi batterie, turbine e reti di distribuzione fino a 1200V AC/DC, garantisce simulazione del carico precisa, validazione delle prestazioni e verifica dell'affidabilità del sistema. Vantaggi chiave: eccezionale densità di potenza, simulazione dinamica del carico a risposta rapida, design a cascata per capacità flessibile, monitoraggio dati in tempo reale e gestione termica avanzata con raffreddamento ad aria forzata. Attrezzatura essenziale per collaudo, manutenzione predittiva e certificazione nei settori energia, marittimo, data center e industriale, assicurando sicurezza operativa, stabilità della tensione, analisi armoniche e massima durata. AC1200V 4200kW DC1200V 5400kW dirençli yük bankası çözümümüzle yüksek güçlü elektrik testleri için nihai çözümü keşfedin. Bu endüstriyel yük bankası, paslanmaz çelik ısıtma elemanları, hassas kontrol sistemi ve kapsamlı güvenlik koruması (IP23 dereceli) ile sağlam modüler yapı sunar. Jeneratörler, UPS sistemleri, akü bankaları, türbinler ve 1200V AC/DC'ye kadar güç dağıtım şebekelerinin test edilmesi için tasarlanmıştır; hassas yük simülasyonu, performans doğrulama ve sistem güvenilirlik kontrolleri sağlar. Temel avantajlar: mükemmel güç yoğunluğu, hızlı tepkili dinamik yük simülasyonu, esnek kapasite için kademeli tasarım, gerçek zamanlı veri izleme ve zorlamalı hava soğutmalı gelişmiş termal yönetim. Enerji, denizcilik, veri merkezleri ve imalat sektörlerinde kritik güç sistemlerinin devreye alma, bakım ve sertifikasyonu için vazgeçilmezdir. İşletme güvenliği, gerilim dalgalanma kompanzasyonu, harmonik analiz kabiliyeti ve sürekli tam yük altında uzun vadeli dayanıklılık garanti eder. Ontdek de ultieme AC1200V 4200kW DC1200V 5400kW resistieve belastingsbankoplossing voor veeleisend hoogvermogen elektrisch testen. Deze industriële belastingsbank met hoge capaciteit biedt robuuste modulaire constructie met roestvrijstalen verwarmingselementen, precisie regelsysteem en uitgebreide veiligheidsbescherming (IP23-geclassificeerd). Ontworpen voor het testen van generatoren, UPS-systemen, batterijbanken, turbines en stroomdistributienetwerken tot 1200V AC/DC. Zorgt voor nauwkeurige belastingsimulatie, prestatievalidatie en systeembetrouwbaarheidscontroles. Belangrijkste voordelen: Uitzonderlijke vermogensdichtheid, snelle respons dynamische belastingsimulatie, schakelbaar ontwerp voor flexibele capaciteit, realtime gegevensmonitoring en geavanceerd thermisch beheer met geforceerde luchtkoeling. Essentieel voor ingebruikname, onderhoud en certificering van kritische energiesystemen in energie, maritiem, datacenters en industrie. Garandeert operationele veiligheid, spanningsfluctuatiecompensatie, harmonische analysevermogen en langdurige duurzaamheid onder continue vollast. Odkryj najwyższej klasy rezystancyjną stację obciążeniową AC1200V 4200kW DC1200V 5400kW do wymagających testów elektrycznych dużej mocy. Ta przemysłowa stacja obciążeniowa oferuje solidną modułową konstrukcję ze stalowymi nierdzewnymi elementami grzejnymi, precyzyjny system sterowania i kompleksową ochronę (klasa IP23). Zaprojektowana do testowania generatorów, systemów UPS, banków akumulatorów, turbin i sieci dystrybucji energii do 1200V AC/DC. Zapewnia dokładną symulację obciążenia, walidację wydajności i sprawdzanie niezawodności systemu. Kluczowe zalety: wyjątkowa gęstość mocy, szybka dynamiczna symulacja obciążenia, kaskadowa konstrukcja dla elastycznej pojemności, monitorowanie danych w czasie rzeczywistym i zaawansowane chłodzenie powietrzem. Niezbędna do rozruchu, konserwacji i certyfikacji w energetyce, marynarce, centrach danych i przemyśle. Gwarantuje bezpieczeństwo pracy, kompensację wahań napięcia, analizę harmonicznych oraz trwałość podczas ciągłej pracy z pełnym obciążeniem. Відкрийте для себе високоякісний резистивний навантажувальний стенд змінного струму 1200В 4200кВт / постійного струму 1200В 5400кВт для жорстких електричних випробувань високої потужності. Цей промисловий навантажувач з високою потужністю відрізняється міцною модульною конструкцією з нержавіючими нагрівальними елементами, системою точного керування та комплексним захистом (IP23). Призначений для тестування генераторів, систем БЖЖ, акумуляторних батарей, турбін та мереж електропостачання до 1200В змінного/постійного струму. Забезпечує точне моделювання навантаження, перевірку продуктивності та надійності системи. Ключові переваги: виняткова щільність потужності, швидка динамічна зміна навантаження, каскадна конструкція для гнучкої потужності, моніторинг даних у реальному часі, ефективне повітряне охолодження. Необхідне обладнання для введення в експлуатацію, технічного обслуговування та сертифікації в енергетиці, суднобудуванні, ЦОД та промисловості, що гарантує безпеку, стабілізацію напруги, аналіз гармонік та довговічність. راهحل نهایی بانک بار مقاومتی AC1200V 4200kW DC1200V 5400kW را برای تستهای سخت الکتریکی توان بالا کشف کنید. این بانک بار صنعتی با ظرفیت بالا دارای ساختار ماژولار مستحکم با المنتهای گرمایشی استیل ضدزنگ، سیستم کنترل دقیق و حفاظت جامع (درجه IP23) است. طراحی شده برای تست ژنراتورها، سیستمهای یوپیاس، بانکهای باتری، توربینها و شبکههای توزیع برق تا 1200 ولت AC/DC. شبیهسازی بار دقیق، اعتبارسنجی عملکرد و بررسی قابلیت اطمینان سیستم را تضمین میکند. مزایای کلیدی: چگالی توان استثنایی، شبیهسازی بار دینامیک با پاسخ سریع، طراحی آبشاری برای ظرفیت انعطافپذیر، مانیتورینگ داده بلادرنگ و مدیریت حرارتی پیشرفته با خنککننده اجباری هوا. تجهیزات ضروری برای راهاندازی، نگهداری پیشگیرانه و صدور گواهی در بخشهای انرژی، دریایی، مراکز داده و صنعتی. ایمنی عملیاتی، جبران نوسان ولتاژ، قابلیت تحلیل هارمونیک و دوام بلندمدت تحت بار کامل مداوم را تضمین میکند. Khám phá giải pháp bộ tải trở AC1200V 4200kW DC1200V 5400kW hàng đầu cho thử nghiệm điện công suất cao khắt khe. Bộ tải công nghiệp công suất lớn này có cấu trúc mô-đun bền vững với phần tử đốt thép không gỉ, hệ thống điều khiển chính xác và bảo vệ toàn diện (IP23). Thiết kế để thử nghiệm máy phát điện, hệ thống UPS, bình ắc quy, tuabin và lưới phân phối điện lên đến 1200V AC/DC, đảm bảo mô phỏng tải chính xác, xác nhận hiệu suất và kiểm tra độ tin cậy hệ thống. Ưu điểm chính: mật độ công suất vượt trội, mô phỏng tải động phản hồi nhanh, thiết kế mở rộng linh hoạt, giám sát dữ liệu thời gian thực và quản lý nhiệt tiên tiến với làm mát cưỡng bức bằng quạt. Thiết bị thiết yếu cho vận hành, bảo trì dự phòng và chứng nhận trong lĩnh vực năng lượng, hàng hải, trung tâm dữ liệu và công nghiệp, đảm bảo an toàn vận hành, bù dao động điện áp, khả năng phân tích sóng hài và độ bền lâu dài. ค้นพบโซลูชันแบงก์โหลดแบบรีซิสทีฟ AC1200V 4200kW DC1200V 5400kW อันยอดเยี่ยมสำหรับการทดสอบไฟฟ้ากำลังสูงอันเข้มงวด แบงก์โหลดอุตสาหกรรมกำลังสูงนี้มีโครงสร้างแบบโมดูลาร์ที่ทนทานพร้อมองค์ประกอบทำความร้อนสแตนเลสสตีล ระบบควบคุมแม่นยำ และการป้องกันครบวงจร (ระดับ IP23) ออกแบบมาสำหรับทดสอบเครื่องกำเนิดไฟฟ้า ระบบยูพีเอส แบตเตอรี่ก้อน กังหัน และเครือข่ายจ่ายไฟสูงถึง 1200V AC/DC รับประกันการจำลองโหลดที่ถูกต้อง การตรวจสอบสมรรถนะ และการทดสอบความน่าเชื่อถือของระบบ ข้อได้เปรียบหลัก: ความหนาแน่นกำลังสูงเป็นพิเศษ การจำลองโหลดไดนามิกตอบสนองเร็ว การออกแบบแบบต่อเนื่องสำหรับความจุที่ยืดหยุ่น การตรวจสอบข้อมูลแบบเรียลไทม์ และการจัดการความร้อนขั้นสูงด้วยระบบระบายความร้อนด้วยลมแบบบังคับ อุปกรณ์จำเป็นสำหรับการติดตั้ง การบำรุงรักษาเชิงป้องกัน และการรับรองในภาคพลังงาน การเดินเรือ ศูนย์ข้อมูล และอุตสาหกรรม รับประกันความปลอดภัยในการทำงาน การชดเชยแรงดันไฟฟ้าผันผวน ความสามารถในการวิเคราะห์ฮาร์มอนิกส์ และความทนทานระยะยาวภายใต้การทำงานเต็มโหลดอย่างต่อเนื่อง Descoperiți soluția supremă de bancă de sarcină rezistivă AC1200V 4200kW DC1200V 5400kW pentru teste electrice de înaltă putere exigente. Această bancă de sarcină industrială de înaltă capacitate oferă construcție modulară robustă cu elemente de încălzire din oțel inoxidabil, sistem de control precis și protecție integrată (IP23). Proiectată pentru testarea generatoarelor, sistemelor UPS, bateriilor, turbinelor și rețelelor de distribuție energie electrică până la 1200V AC/DC, asigură simulare precisă a sarcinii, validare a performanței și verificare a fiabilității sistemului. Avantaje cheie: densitate de putere excepțională, simulare dinamică rapidă a sarcinii, design cascadabil pentru capacitate flexibilă, monitorizare date în timp real și management termic avansat cu răcire forțată cu aer. Echipament esențial pentru punerea în funcțiune, întreținere predictivă și certificare în sectoarele energiei, naval, centre de date și industrial, garantând siguranță operațională, stabilitate tensiune, analiză armonici și durabilitate maximă. Fedezze fel az AC1200V 4200kW DC1200V 5400kW ellenállásos terhelőbank végleges megoldását igényes nagy teljesítményű elektromos teszteléshez. Ez az ipari terhelőbank magas kapacitással rendelkezik, robusztus moduláris kivitelű rozsdamentes acél fűtőelemekkel, precíziós vezérlőrendszerrel és átfogó védelmmel (IP23). Generátorok, UPS rendszerek, akkumulátor bankok, turbinák és 1200V AC/DC-ig terjedő áramelosztó hálózatok tesztelésére tervezték. Pontos terhelésszimulációt, teljesítmény-ellenőrzést és rendszer megbízhatósági vizsgálatot biztosít. Fő előnyei: kivételes teljesítménysűrűség, gyors dinamikus terhelésszimuláció, kaskádos kialakítás rugalmas kapacitáshoz, valós idejű adatmonitorozás és kényszerített levegőhűtés. Létfontosságú berendezés üzembe helyezéshez, prediktív karbantartáshoz és tanúsításhoz az energia, tengerészet, adatközpont és ipari szektorokban. Garantálja az üzemeltetési biztonságot, feszültség-ingadozás kompenzációt, harmonikus elemzést és hosszú távú tartósságot. Ανακαλύψτε την τελική λύση ωμικού φορτίου AC1200V 4200kW DC1200V 5400kW για απαιτητικές ηλεκτρικές δοκιμές υψηλής ισχύος. Αυτό το βιομηχανικό φορτωτή υψηλής χωρητικότητας προσφέρει στιβαρή αρθρωτή κατασκευή με θερμαντικά στοιχεία από ανοξείδωτο χάλυβα, ακριβές σύστημα ελέγχου και ολοκληρωμένη προστασία (IP23). Σχεδιασμένο για δοκιμές ηλεκτροπαραγωγών, συστημάτων UPS, συστοιχιών μπαταριών, στροβίλων και δικτύων διανομής ρεύματος έως 1200V AC/DC. Εξασφαλίζει ακριβή προσομοίωση φορτίου, επικύρωση απόδοσης και έλεγχο αξιοπιστίας συστήματος. Βασικά πλεονεκτήματα: Εξαιρετική πυκνότητα ισχύος, γρήγορη δυναμική προσομοίωση φορτίου, σχεδιασμός με καταρράκτη για ευέλικτη χωρητικότητα, παρακολούθηση δεδομένων σε πραγματικό χρόνο και εξελιγμένη θερμική διαχείριση με εξαναγκασμένη αεροψύξη. Απαραίτητο εξοπλισμό για θέση σε λειτουργία, προληπτική συντήρηση και πιστοποίηση στους τομείς ενέργειας, ναυτιλίας, κέντρα δεδομένων και βιομηχανία. Εξασφαλίζει λειτουργική ασφάλεια, αποζημίωση διακυμάνσεων τάσης, ικανότητα αρμονικής ανάλυσης και μακροπρόθεσμη ανθεκτικότητα. Objevte špičkové rezistivní zatěžovací zařízení AC1200V 4200kW DC1200V 5400kW pro náročné elektrické zkoušky vysokého výkonu. Toto průmyslové zatěžovací zařízení s vysokou kapacitou nabízí robustní modulární konstrukci s nerezovými topnými tělesy, přesný řídicí systém a komplexní ochranu (IP23). Určeno pro testování generátorů, UPS systémů, bateriových úložišť, turbín a rozvodných sítí až do 1200V AC/DC. Zajišťuje přesnou simulaci zátěže, ověření výkonu a kontrolu spolehlivosti systému. Klíčové výhody: Výjimečná hustota výkonu, rychlá dynamická simulace zátěže, kaskádové uspořádání pro flexibilní kapacitu, sledování dat v reálném čase a pokročilé chlazení ventilátorem. Nezbytný pro uvádění do provozu, údržbu a certifikaci v energetice, námořnictví, datových centrech a průmyslu. Zajišťuje provozní bezpečnost, kompenzaci kolísání napětí, analýzu harmonických a dlouhodobou odolnost. Открийте върховото решение за резистивно товарно устройство AC1200V 4200kW DC1200V 5400kW за взискателни електрически изпитвания с висока мощност. Това промишлено товарно устройство с висок капацитет предлага здрава модулна конструкция с нагревателни елементи от неръждаема стомана, прецизен контролен систем и цялостна защита (IP23). Проектирано за тестване на генератори, UPS системи, акумулаторни батерии, турбини и мрежи за разпределение на енергия до 1200V AC/DC. Осигурява точно симулиране на натоварване, валидиране на производителността и проверка на надеждността на системата. Ключови предимства: Изключителна мощностна плътност, бърза динамична симулация на натоварване, каскаден дизайн за гъвкав капацитет, мониторинг на данни в реално време и принудително въздушно охлаждане. Необходимо оборудване за въвеждане в експлоатация, поддръжка и сертифициране в енергетиката, корабостроенето, центрове за данни и индустрия. Гарантира оперативна безопасност, компенсация на колебанията на напрежението, анализ на хармоничните и дълготрайност. Откријте врхунско резистивно оптерећење AC1200V 4200kW DC1200V 5400kW за захтевна електрична тестирања високе снаге. Ова индустријско оптерећење великог капацитета нуди робусну модуларну конструкцију са грејним елементима од нерђајућег челика, прецизан управљачки систем и свеобухватну заштиту (IP23). Дизајнирано за тестирање генератора, УПС система, батеријских банака, турбина и енергетских мрежа до 1200V AC/DC. Обезбеђује прецизну симулацију оптерећења, проверу перформанси и поузданости система. Кључне предности: Изузетна густина снаге, брза динамичка симулација оптерећења, каскадни дизајн за флексибилан капацитет, праћење података у реалном времену и напредно хлађење вентилаторима. Неопходна опрема за пуштање у рад, одржавање и сертификацију у енергетици, бродоградњи, центрима за податке и индустрији. Гарантује оперативну безбедност, компензацију флуктуација напона, анализу хармоника и дуготрајност. Objavte špičkové rezistívne záťažové zariadenie AC1200V 4200kW DC1200V 5400kW pre náročné elektrické skúšky vysokého výkonu. Toto priemyselné záťažové zariadenie s vysokou kapacitou ponúka robustnú modulárnu konštrukciu s vykurovacími telesami z nerezovej ocele, presný riadiaci systém a komplexnú ochranu (IP23). Určené na testovanie generátorov, UPS systémov, batériových úložísk, turbín a rozvodných sietí až do 1200V AC/DC. Zabezpečuje presnú simuláciu záťaže, overenie výkonu a kontrolu spoľahlivosti systému. Kľúčové výhody: Výnimočná hustota výkonu, rýchla dynamická simulácia záťaže, kaskádové usporiadanie pre flexibilnú kapacitu, sledovanie údajov v reálnom čase a pokročilé chladenie ventilátorom. Nevyhnutné pre uvádzanie do prevádzky, údržbu a certifikáciu v energetike, námorníctve, dátových centrách a priemysle. Zabezpečuje prevádzkovú bezpečnosť, kompenzáciu kolísania napätia, analýzu harmonických a dlhodobú odolnosť. Otkrijte vrhunsko otporno opterećenje AC1200V 4200kW DC1200V 5400kW za zahtjevna električna ispitivanja velike snage. Ovaj industrijski opterećivač velikog kapaciteta nudi robusnu modularnu konstrukciju s grijaćim elementima od nehrđajućeg čelika, precizni upravljački sustav i sveobuhvatnu zaštitu (IP23). Dizajniran za ispitivanje generatora, UPS sustava, baterijskih banki, turbina i energetskih mreža do 1200V AC/DC. Osigurava preciznu simulaciju opterećenja, provjeru performansi i pouzdanosti sustava. Ključne prednosti: Izuzetna gustoća snage, brza dinamička simulacija opterećenja, kaskadni dizajn za fleksibilan kapacitet, praćenje podataka u stvarnom vremenu i napredno hlađenje ventilatorima. Neophodna oprema za puštanje u rad, održavanje i certifikaciju u energetici, brodogradnji, podatkovnim centrima i industriji. Jamči operativnu sigurnost, kompenzaciju fluktuacija napona, analizu harmonika i dugotrajnost. Odkrijte vrhunsko reaktivno bremensko napravo AC1200V 4200kW DC1200V 5400kW za zahtevne električne preskuse visoke moči. Ta industrijsko bremensko napravo velike zmogljivosti ponuja robustno modularno konstrukcijo z nerjavnimi jeklenimi grelnimi elementi, natančen krmilni sistem in celovito zaščito (IP23). Zasnovano za preskušanje generatorjev, UPS sistemov, baterijskih bank, turbin in elektroenergetskega omrežja do 1200V AC/DC. Zagotavlja natančno simulacijo bremena, validacijo zmogljivosti in preverjanje zanesljivosti sistema. Ključne prednosti: Izjemna gostota moči, hitra dinamična simulacija bremena, kaskadna zasnova za prožno zmogljivost, spremljanje podatkov v realnem času in napreden toplotni management s prisilnim zračnim hlajenjem. Bistvena oprema za zagon, vzdrževanje in certificiranje v energetiki, pomorstvu, podatkovnih centrih in industriji. Zagotavlja operativno varnost, kompenzacijo nihanj napetosti, sposobnost analize harmonikov in dolgotrajno vzdržljivost. Tuklasin ang pangunahing resistive load bank solution na AC1200V 4200kW DC1200V 5400kW para sa mahigpit na high-power electrical testing. Nag-aalok ang industrial load bank na ito ng matibay na modular na konstruksyon na may stainless steel heating elements, tumpak na control system, at komprehensibong safety protection (IP23 rated). Idinisenyo para sa pagsubok ng mga generator, UPS system, battery bank, turbine, at power distribution network hanggang 1200V AC/DC. Tinitiyak nito ang tumpak na load simulation, performance validation, at system reliability checks. Pangunahing benepisyo: pambihirang power density, mabilis na dynamic load simulation, cascadable design para sa flexible capacity, real-time data monitoring, at advanced thermal management na may forced air cooling. Mahalagang kagamitan para sa commissioning, maintenance, at certification ng mga kritikal na power system sa larangan ng enerhiya, maritime, data center, at manufacturing. Ginagarantiyahan nito ang operational safety, voltage fluctuation compensation, harmonic analysis capability, at pangmatagalang tibay sa ilalim ng tuloy-tuloy na full-load operation.
Products
Download
FORTUNE PACIFIC LIMITED © All Rights Reserved.
