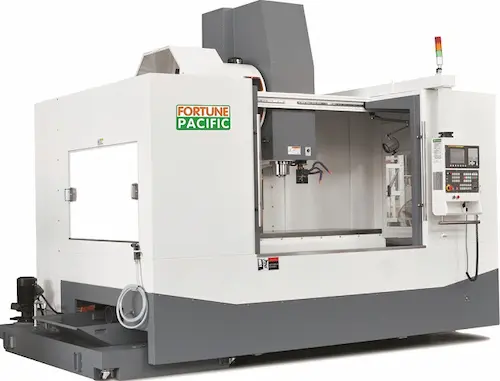

4VMC1300 4-axis Vertical CNC Machining Center
As with FORTUNE PACIFIC 4VMC1300 CNC Vertical Machining Center equipment options include automatic loading via pallet changer for significantly cut set-up times. Supplied with Siemens machine controls.
- 4VMC1300 4 Axes Vertical Machining CenterDownload
Technical parameters of 4VMC1300 4 Axes Vertical Machining Center
Features
* 4VMC1300 CNC Vertical Machining Center is of 4-axis synchronization with X, Y, Z axes and CNC rotary table.
* With 10000rpm BT40 spindle, it is designed for auto, textile machine and other industry parts which need high efficiency machining.
* With 6000rpm BT50 and two-stage gear box spindle, it is designed for mould-base, mould and all kinds of steel and die-cast workpiece.
* All three axes use roller linear guideway; machine bed with four guideways give the best supporting to the worktable while moves in full travel.
* Large span column frame ensure good vibration absorption while continue machining.
* 24pcs arm type ATC with once clamping and rapid tool exchange to execute the component machining.
* One-piece design of enclosure splash guard and two coil chip conveyors supply large machining space.
Standard equipments
FANUC 0i MF with 8.4’’ screen; FANUC 4th axis servo motor with Ø320mm CNC rotary table and manual tailstock;
24-station arm type ATC; Coil chip conveyor; Spindle chiller; Spindle cooling through external pipe (without motor); Spindle air sealing; Water gun and air gun flushing; Machining air blowing device; Heat exchanger for electric cabinet; Transformer; Foundation blocks and fixture screws; Coolant system; Automatic lubrication system; Work light;
3-color indication light; Totally enclosed guard; Door interlock; MPG; Rigid tapping; AICC I, Ethernet DNC;
Optional equipments
CNC rotary table and tailstock; 30-station arm type ATC; Electric cabinet air conditioner; Voltage stabilizer;
Coolant through spindle center; Linear encoder; Tool measuring system; Workpiece measuring system;
Vertical Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a workpiece.
With the latest verson in CNC milling machines, we offer customers high precision, complex parts with exceptional throughput and short leadtimes. Our equipment ranges from simple 3-axis vertical machining centers to sophisticated 5-axis machining centres. We can handle parts envelope in a wide range of materials from aluminum to high nickel alloys.
4-Axis CNC Milling Machining centers
FORTUNE PACIFIC 4 axis CNC Milling Machining centers are based on the same models from FORTUNE PACIFIC that make up the 3 axis range with the addition of a rotary table to enable 4 axis machining. As with all FORTUNE PACIFIC CNC Milling Machining centers, the user has choice between Siemens or Heidenhain controls. Equipment options include automatic loading via pallet changer for significantly cut set-up times. Supplied with Siemens machine controls.
Why are 4-axis CNC machining centers useful?
Having a CNC machining centers with these extra axes presents many advantages. Since they can cut the workpiece from different angles, 4-axis CNC machining centers can complete a part in a shorter timeframe, with less of a need for multiple set-ups. This has the knock-on benefit of eliminating incorrect alignment - a risk every time the workpiece has to be manually reoriented for a new set-up.
| Model | Unit | 4VMC1300 | |
|---|---|---|---|
| Type | T760BT40 | T760BT50 | |
| CNC system | FANUC 0i MF | ||
| X axis travel | mm | 1300 (51”) | |
| Y axis travel | mm | 760 (30”) | |
| Z axis travel | mm | 700 (28”) | |
| Worktable size | mm | 1600x750 (63x30”) | |
| T slot (width x No. x pitch) | mm | 18x5x125 | |
| Distance from worktable to the floor | mm | 1009 (40”) | |
| Max load of worktable | kg | 1200 | |
| Spindle taper | BT40 | BT50 | |
| Max spindle speed | rpm | 10000 | 6000 |
| Distance from spindle nose to worktable | mm | 135-835 (5.3-33”) | 100-800 (3.9-31.5”) |
| Distance from spindle center to column cover | mm | 790 (31”) | |
| Spindle motor power (continuous / 15 minutes) | kW | 15 / 18.5 | |
| Spindle motor torque | Nm | 95.5 / 118 | 382 / 460 |
| Rapid feed speed of X, Y axis | mm/min | 24000 | |
| Rapid feed speed of Z axis | mm/min | 24000 | |
| Max cutting feed speed of X, Y, Z axis | mm/min | 1-10000 | |
| Motor power of X / Y / Z axis | kW | 4 / 4 / 4 | |
| Ball screw of C3 grade | mm | 50x12 (2x0.47”) | |
| Tool capacity | 24 | ||
| Max tool weight | kg | 8 | 15 |
| Max tool length | mm | 350 (14”) | 350 (14”) |
| Max tool diameter | mm | 81 / 162 (3.2 / 6.4”) | 110 / 200 (4.3 / 7.9”) |
| Positioning accuracy (VDI / DGQ3441) | mm | 0.012 | |
| Repositioning accuracy (VDI / DGQ3441) | mm | 0.010 | |
| Air pressure | Mpa | 0.6-0.8 | |
| Power consumption | kVA | 25 | |
| Net weight | kg | 12000 | |
| Machine dimension (L x W x H) | mm | 4015x3605x3410 | |
Features
* 4VMC1300 CNC Vertical Machining Center is of 4-axis synchronization with X, Y, Z axes and CNC rotary table.
* With 10000rpm BT40 spindle, it is designed for auto, textile machine and other industry parts which need high efficiency machining.
* With 6000rpm BT50 and two-stage gear box spindle, it is designed for mould-base, mould and all kinds of steel and die-cast workpiece.
* All three axes use roller linear guideway; machine bed with four guideways give the best supporting to the worktable while moves in full travel.
* Large span column frame ensure good vibration absorption while continue machining.
* 24pcs arm type ATC with once clamping and rapid tool exchange to execute the component machining.
* One-piece design of enclosure splash guard and two coil chip conveyors supply large machining space.
Standard equipments
FANUC 0i MF with 8.4’’ screen; FANUC 4th axis servo motor with Ø320mm CNC rotary table and manual tailstock;
24-station arm type ATC; Coil chip conveyor; Spindle chiller; Spindle cooling through external pipe (without motor); Spindle air sealing; Water gun and air gun flushing; Machining air blowing device; Heat exchanger for electric cabinet; Transformer; Foundation blocks and fixture screws; Coolant system; Automatic lubrication system; Work light;
3-color indication light; Totally enclosed guard; Door interlock; MPG; Rigid tapping; AICC I, Ethernet DNC;
Optional equipments
CNC rotary table and tailstock; 30-station arm type ATC; Electric cabinet air conditioner; Voltage stabilizer;
Coolant through spindle center; Linear encoder; Tool measuring system; Workpiece measuring system;
Vertical Machining, also known as milling, relies on rotary cutters to remove metal from a workpiece. Vertical machining occurs on a vertical machining center (VMC), which employs a spindle with a vertical orientation. With a vertically oriented spindle, tools stick straight down from the tool holder, and often cut across the top of a workpiece.
With the latest verson in CNC milling machines, we offer customers high precision, complex parts with exceptional throughput and short leadtimes. Our equipment ranges from simple 3-axis vertical machining centers to sophisticated 5-axis machining centres. We can handle parts envelope in a wide range of materials from aluminum to high nickel alloys.
4-Axis CNC Milling Machining centers
FORTUNE PACIFIC 4 axis CNC Milling Machining centers are based on the same models from FORTUNE PACIFIC that make up the 3 axis range with the addition of a rotary table to enable 4 axis machining. As with all FORTUNE PACIFIC CNC Milling Machining centers, the user has choice between Siemens or Heidenhain controls. Equipment options include automatic loading via pallet changer for significantly cut set-up times. Supplied with Siemens machine controls.
Why are 4-axis CNC machining centers useful?
Having a CNC machining centers with these extra axes presents many advantages. Since they can cut the workpiece from different angles, 4-axis CNC machining centers can complete a part in a shorter timeframe, with less of a need for multiple set-ups. This has the knock-on benefit of eliminating incorrect alignment - a risk every time the workpiece has to be manually reoriented for a new set-up.
Features
* 4VMC1300 CNC Vertical Machining Center is of 4-axis synchronization with X, Y, Z axes and CNC rotary table.
* With 10000rpm BT40 spindle, it is designed for auto, textile machine and other industry parts which need high efficiency machining.
* With 6000rpm BT50 and two-stage gear box spindle, it is designed for mould-base, mould and all kinds of steel and die-cast workpiece.
* All three axes use roller linear guideway; machine bed with four guideways give the best supporting to the worktable while moves in full travel.
* Large span column frame ensure good vibration absorption while continue machining.
* 24pcs arm type ATC with once clamping and rapid tool exchange to execute the component machining.
* One-piece design of enclosure splash guard and two coil chip conveyors supply large machining space.
* 4VMC1300 CNC Vertical Machining Center is of 4-axis synchronization with X, Y, Z axes and CNC rotary table.
* With 10000rpm BT40 spindle, it is designed for auto, textile machine and other industry parts which need high efficiency machining.
* With 6000rpm BT50 and two-stage gear box spindle, it is designed for mould-base, mould and all kinds of steel and die-cast workpiece.
* All three axes use roller linear guideway; machine bed with four guideways give the best supporting to the worktable while moves in full travel.
* Large span column frame ensure good vibration absorption while continue machining.
* 24pcs arm type ATC with once clamping and rapid tool exchange to execute the component machining.
* One-piece design of enclosure splash guard and two coil chip conveyors supply large machining space.
Technical parameters of 4VMC1300 4 Axes Vertical Machining Center
| Model | Unit | 4VMC1300 | |
|---|---|---|---|
| Type | T760BT40 | T760BT50 | |
| CNC system | FANUC 0i MF | ||
| X axis travel | mm | 1300 (51”) | |
| Y axis travel | mm | 760 (30”) | |
| Z axis travel | mm | 700 (28”) | |
| Worktable size | mm | 1600x750 (63x30”) | |
| T slot (width x No. x pitch) | mm | 18x5x125 | |
| Distance from worktable to the floor | mm | 1009 (40”) | |
| Max load of worktable | kg | 1200 | |
| Spindle taper | BT40 | BT50 | |
| Max spindle speed | rpm | 10000 | 6000 |
| Distance from spindle nose to worktable | mm | 135-835 (5.3-33”) | 100-800 (3.9-31.5”) |
| Distance from spindle center to column cover | mm | 790 (31”) | |
| Spindle motor power (continuous / 15 minutes) | kW | 15 / 18.5 | |
| Spindle motor torque | Nm | 95.5 / 118 | 382 / 460 |
| Rapid feed speed of X, Y axis | mm/min | 24000 | |
| Rapid feed speed of Z axis | mm/min | 24000 | |
| Max cutting feed speed of X, Y, Z axis | mm/min | 1-10000 | |
| Motor power of X / Y / Z axis | kW | 4 / 4 / 4 | |
| Ball screw of C3 grade | mm | 50x12 (2x0.47”) | |
| Tool capacity | 24 | ||
| Max tool weight | kg | 8 | 15 |
| Max tool length | mm | 350 (14”) | 350 (14”) |
| Max tool diameter | mm | 81 / 162 (3.2 / 6.4”) | 110 / 200 (4.3 / 7.9”) |
| Positioning accuracy (VDI / DGQ3441) | mm | 0.012 | |
| Repositioning accuracy (VDI / DGQ3441) | mm | 0.010 | |
| Air pressure | Mpa | 0.6-0.8 | |
| Power consumption | kVA | 25 | |
| Net weight | kg | 12000 | |
| Machine dimension (L x W x H) | mm | 4015x3605x3410 | |
Standard equipments
FANUC 0i MF with 8.4’’ screen; FANUC 4th axis servo motor with Ø320mm CNC rotary table and manual tailstock;
24-station arm type ATC; Coil chip conveyor; Spindle chiller; Spindle cooling through external pipe (without motor); Spindle air sealing; Water gun and air gun flushing; Machining air blowing device; Heat exchanger for electric cabinet; Transformer; Foundation blocks and fixture screws; Coolant system; Automatic lubrication system; Work light;
3-color indication light; Totally enclosed guard; Door interlock; MPG; Rigid tapping; AICC I, Ethernet DNC;
Optional equipments
CNC rotary table and tailstock; 30-station arm type ATC; Electric cabinet air conditioner; Voltage stabilizer;
Coolant through spindle center; Linear encoder; Tool measuring system; Workpiece measuring system;
FANUC 0i MF with 8.4’’ screen; FANUC 4th axis servo motor with Ø320mm CNC rotary table and manual tailstock;
24-station arm type ATC; Coil chip conveyor; Spindle chiller; Spindle cooling through external pipe (without motor); Spindle air sealing; Water gun and air gun flushing; Machining air blowing device; Heat exchanger for electric cabinet; Transformer; Foundation blocks and fixture screws; Coolant system; Automatic lubrication system; Work light;
3-color indication light; Totally enclosed guard; Door interlock; MPG; Rigid tapping; AICC I, Ethernet DNC;
Optional equipments
CNC rotary table and tailstock; 30-station arm type ATC; Electric cabinet air conditioner; Voltage stabilizer;
Coolant through spindle center; Linear encoder; Tool measuring system; Workpiece measuring system;
