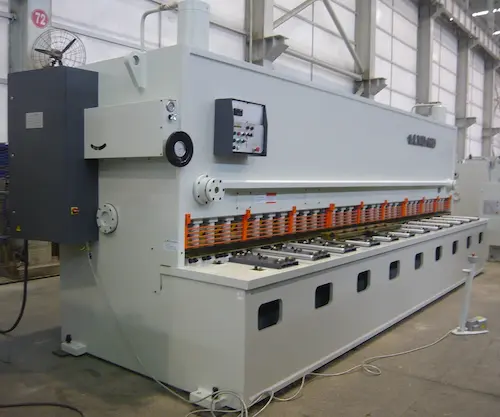

132~3700KN HGS Series LVD Hydraulic Guillotine Shears

HGS(K) series guillotine shearing machines applies modern design with its frame designed by UG software, mainly used for cutting metal sheet, have a frame with good strength and stiffness.

INQUIRY

PDF Format

Description

Characteristics

Parameters

Introduction

Parameters of 132KN~620KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/6	65/8	62/10	80/10	40/13	50/13
Mild steel (45kg/mm2)	6	8	10	10	13	13
Stainless steel	3	4	6	6	8	8
Cutting length mm	6200	6500	6200	8000	4000	5000
Max.cutting force KN	132	252	350	430	730	620
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2	0.5~2	0.5~2.5
Strokes per minute	7	7	7	7	10	7
Frame throat mm	100	750	100	100	200	100
Number of holddowns	32	35	32	42	20	26
Volume of oil tank L	686	720	650	845	561	650
Motor power kw	15	22	2X15	37	22	30
Approx. weight kg	20000	34000	26000	45000	17000	25000
Length mm	7065	7580	7100	9016	4885	6000
Width mm	2250	2810	2510	2615	2190	2540
Height mm	2650	3140	2840	3000	2490	2960

Parameters of 620KN~650KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/13	70/13	80/13	85/13	90/13	120/13
Mild steel (45kg/mm2)	13	13	13	13	13	13
Stainless steel	8	8	8	8	8	8
Cutting length mm	6200	7000	8000	8500	9000	12000
Max.cutting force KN	620	620	620	620	620	650
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.0
Strokes per minute	7	5	7	8	6	5
Frame throat mm	60	100	400	300	500	100
Number of holddowns	32	37	42	44	51	61
Volume of oil tank L	686	1200	1600	1600	1600	1600
Motor power kw	30	2X18.5	2X30	2X37	2X30	2X30
Approx. weight kg	28000	40000	55000	65000	80000	150000
Length mm	7100	8170	9090	9650	10300	13760
Width mm	2330	2500	2900	2950	3000	3350
Height mm	2680	3300	3360	3650	4060	5200

Parameters of 720KN~850KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	160/13	70/14	25/16	31/16	40/16	50/16
Mild steel (45kg/mm2)	13	14	16	16	16	16
Stainless steel	8	8	10	10	10	10
Cutting length mm	16000	7000	2500	3100	4000	5000
Max.cutting force KN	720	620	730	850	850	850
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.0	0.5~2.5	0.5~3.0	0.5~2.5	0.5~2.5	0.5~2.5
Strokes per minute	3	7	9	8	8	6
Frame throat mm	100	100	300	300	200	100
Number of holddowns	81	37	13	16	20	26
Volume of oil tank L	1800	1200	500	590	560	662
Motor power kw	2X37	2X22	22	22	30	37
Approx. weight kg	248000	40000	11000	12000	18000	28000
Length mm	17320	8170	3265	3865	5020	5935
Width mm	4400	2600	2140	2140	2240	2360
Height mm	5600	3300	2350	2350	2575	2870

Parameters of 850KN~1270KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/16	80/16	21/20	25/20	31/20	40/20
Mild steel (45kg/mm2)	16	16	20	20	20	20
Stainless steel	10	10	12	12	12	12
Cutting length mm	6200	8000	2100	2500	3100	4000
Max.cutting force KN	850	850	1270	1270	1370	1270
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~3.0	0.5~3.0	0.5~2.5	0.5~3.0
Strokes per minute	7	7	7	7	7	5
Frame throat mm	100	650	300	300	300	300
Number of holddowns	32	42	11	13	16	20
Volume of oil tank L	686	1800	370	500	590	627
Motor power kw	37	2X30	30	30	30	30
Approx. weight kg	36000	85000	13000	14000	15000	29000
Length mm	7185	9150	2970	3370	3970	5050
Width mm	2350	3250	2275	2275	2275	2600
Height mm	2860	3520	2470	2470	2470	3140

Parameters of 1400KN~1600KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/20	65/20	80/20	25/25	31/25	40/25
Mild steel (45kg/mm2)	20	20	20	25	25	25
Stainless steel	12	12	12	16	16	16
Cutting length mm	6200	6500	8000	2500	3100	4000
Max.cutting force KN	1400	1400	1400	1960	2320	1600
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~2.5	0.5~3.0	0.5~2.5	0.5~3.5
Strokes per minute	5	5	4	6	6	5
Frame throat mm	100	200	100	300	300	300
Number of holddowns	32	35	40	13	26	20
Volume of oil tank L	1500	1500	1800	828	1068	1100
Motor power kw	2X30	2X30	2X37	45	45	2X30
Approx. weight kg	55000	65000	98000	25000	29000	38000
Length mm	7320	7620	9250	3585	4260	5360
Width mm	2860	2910	3725	2800	2900	2900
Height mm	3390	3430	3760	2835	2885	3420

Parameters of 2000KN~3700KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/25	25/30	31/30	25/40
Mild steel (45kg/mm2)	25	30	30	40
Stainless steel	16	20	20	25
Cutting length mm	6200	2500	3100	2500
Max.cutting force KN	2000	2200	2200	3700
Backgauge range mm	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~3.5	0.5~3.5	0.5~3.5
Strokes per minute	3	4	4	3
Frame throat mm	100	300	300	200
Number of holddowns	32	13	16	13
Volume of oil tank L	1200	920	1300	1200
Motor power kW	2×37	55	55	2×37
Approx. weight kg	80000	29000	32000	39500
Length mm	7340	3885	4485	4105
Width mm	3100	2950	2950	3050
Height mm	3615	3085	3085	3375

132KN~3700KN HGS(K) Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine Introduction
HGS(K) series guillotine shearing machines applies modern design with its frame designed by UG software. These hydraulic squaring shears are mainly used for cutting metal sheet. Due to whole welded structure, they have a frame with good strength and stiffness. This type of sheet metal guillotine is equipped with stable and reliable integrated hydraulic system which ensures safety and reliability. In addition, centralized button control station contributes to easy operation.

Characteristics
1. HGS(K) series hydraulic squaring shear adopts unique turret structure of three idler rollers guiding the rail. The former pre-pressing lead rail makes the turret be tightly between the upper rail and the lower rail and continually repeat reciprocating action.
2. These guillotine shearing machines are equipped with integrated hydraulic system. The hydraulic components and seals inside are mainly made by world-famous companies. In this way, hydraulic pipelines have been minimized to the least degree, so as to ensure stability and safety.
3. All the installation sizes of hydraulic components and seals strictly meet with the ISO and DIN standards.
4. Those hydraulic squaring shears adopts a blade clearance quick adjustment device, which is used to adjust blades gap and the value is shown on a dial plate. Users had better choose the reasonable blades gap based on the materials’ thicknesses and properties.
5. Our guillotine shearing machines allow for shear angle adjustment so as to ensure that the material distortions could be reduced to the minimum degree.
6. The hydraulic squaring shear also have the feature of concise outline and graceful shape.
7. This series of shearing machines offers simple operation, convenient maintenance and reliable regulation.

Characteristics
1. HGS (K) series hydraulic squaring shear adopts unique turret structure of three idler rollers guiding the rail. The former pre-pressing lead rail makes the turret be tightly between the upper rail and the lower rail and continually repeat reciprocating action.
2. These guillotine shearing machines are equipped with integrated hydraulic system. The hydraulic components and seals inside are mainly made by world-famous companies. In this way, hydraulic pipelines have been minimized to the least degree, so as to ensure stability and safety.
3. All the installation sizes of hydraulic components and seals strictly meet with the ISO and DIN standards.
4. Those hydraulic squaring shears adopts a blade clearance quick adjustment device, which is used to adjust blades gap and the value is shown on a dial plate. Users had better choose the reasonable blades gap based on the materials’ thicknesses and properties.
5. Our guillotine shearing machines allow for shear angle adjustment so as to ensure that the material distortions could be reduced to the minimum degree.
6. The hydraulic squaring shear also have the feature of concise outline and graceful shape.
7. This series of shearing machines offers simple operation, convenient maintenance and reliable regulation.

Parameters of 132KN~620KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/6	65/8	62/10	80/10	40/13	50/13
Mild steel (45kg/mm2)	6	8	10	10	13	13
Stainless steel	3	4	6	6	8	8
Cutting length mm	6200	6500	6200	8000	4000	5000
Max.cutting force KN	132	252	350	430	730	620
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2	0.5~2	0.5~2.5
Strokes per minute	7	7	7	7	10	7
Frame throat mm	100	750	100	100	200	100
Number of holddowns	32	35	32	42	20	26
Volume of oil tank L	686	720	650	845	561	650
Motor power kw	15	22	2X15	37	22	30
Approx. weight kg	20000	34000	26000	45000	17000	25000
Length mm	7065	7580	7100	9016	4885	6000
Width mm	2250	2810	2510	2615	2190	2540
Height mm	2650	3140	2840	3000	2490	2960

Parameters of 620KN~650KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/13	70/13	80/13	85/13	90/13	120/13
Mild steel (45kg/mm2)	13	13	13	13	13	13
Stainless steel	8	8	8	8	8	8
Cutting length mm	6200	7000	8000	8500	9000	12000
Max.cutting force KN	620	620	620	620	620	650
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.5	0.5~2.0
Strokes per minute	7	5	7	8	6	5
Frame throat mm	60	100	400	300	500	100
Number of holddowns	32	37	42	44	51	61
Volume of oil tank L	686	1200	1600	1600	1600	1600
Motor power kw	30	2X18.5	2X30	2X37	2X30	2X30
Approx. weight kg	28000	40000	55000	65000	80000	150000
Length mm	7100	8170	9090	9650	10300	13760
Width mm	2330	2500	2900	2950	3000	3350
Height mm	2680	3300	3360	3650	4060	5200

Parameters of 720KN~850KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	160/13	70/14	25/16	31/16	40/16	50/16
Mild steel (45kg/mm2)	13	14	16	16	16	16
Stainless steel	8	8	10	10	10	10
Cutting length mm	16000	7000	2500	3100	4000	5000
Max.cutting force KN	720	620	730	850	850	850
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.0	0.5~2.5	0.5~3.0	0.5~2.5	0.5~2.5	0.5~2.5
Strokes per minute	3	7	9	8	8	6
Frame throat mm	100	100	300	300	200	100
Number of holddowns	81	37	13	16	20	26
Volume of oil tank L	1800	1200	500	590	560	662
Motor power kw	2X37	2X22	22	22	30	37
Approx. weight kg	248000	40000	11000	12000	18000	28000
Length mm	17320	8170	3265	3865	5020	5935
Width mm	4400	2600	2140	2140	2240	2360
Height mm	5600	3300	2350	2350	2575	2870

Parameters of 850KN~1270KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/16	80/16	21/20	25/20	31/20	40/20
Mild steel (45kg/mm2)	16	16	20	20	20	20
Stainless steel	10	10	12	12	12	12
Cutting length mm	6200	8000	2100	2500	3100	4000
Max.cutting force KN	850	850	1270	1270	1370	1270
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~3.0	0.5~3.0	0.5~2.5	0.5~3.0
Strokes per minute	7	7	7	7	7	5
Frame throat mm	100	650	300	300	300	300
Number of holddowns	32	42	11	13	16	20
Volume of oil tank L	686	1800	370	500	590	627
Motor power kw	37	2X30	30	30	30	30
Approx. weight kg	36000	85000	13000	14000	15000	29000
Length mm	7185	9150	2970	3370	3970	5050
Width mm	2350	3250	2275	2275	2275	2600
Height mm	2860	3520	2470	2470	2470	3140

Parameters of 1400KN~1600KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/20	65/20	80/20	25/25	31/25	40/25
Mild steel (45kg/mm2)	20	20	20	25	25	25
Stainless steel	12	12	12	16	16	16
Cutting length mm	6200	6500	8000	2500	3100	4000
Max.cutting force KN	1400	1400	1400	1960	2320	1600
Backgauge range mm	1000	1000	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~2.5	0.5~2.5	0.5~3.0	0.5~2.5	0.5~3.5
Strokes per minute	5	5	4	6	6	5
Frame throat mm	100	200	100	300	300	300
Number of holddowns	32	35	40	13	26	20
Volume of oil tank L	1500	1500	1800	828	1068	1100
Motor power kw	2X30	2X30	2X37	45	45	2X30
Approx. weight kg	55000	65000	98000	25000	29000	38000
Length mm	7320	7620	9250	3585	4260	5360
Width mm	2860	2910	3725	2800	2900	2900
Height mm	3390	3430	3760	2835	2885	3420

Parameters of 2000KN~3700KN HGS Series LVD Hydraulic Guillotine Shears/Guillotine Shearing Machine

Specification	62/25	25/30	31/30	25/40
Mild steel (45kg/mm2)	25	30	30	40
Stainless steel	16	20	20	25
Cutting length mm	6200	2500	3100	2500
Max.cutting force KN	2000	2200	2200	3700
Backgauge range mm	1000	1000	1000	1000
Rake angle adjustment	0.5~2.5	0.5~3.5	0.5~3.5	0.5~3.5
Strokes per minute	3	4	4	3
Frame throat mm	100	300	300	200
Number of holddowns	32	13	16	13
Volume of oil tank L	1200	920	1300	1200
Motor power kW	2×37	55	55	2×37
Approx. weight kg	80000	29000	32000	39500
Length mm	7340	3885	4485	4105
Width mm	3100	2950	2950	3050
Height mm	3615	3085	3085	3375

WF45 Toolroom Milling Machine

GMC3227B CNC Bridge-type Gantry Machining Center

C400K Slant Bed Lathe with Hydraulic Turret

MF25V Variable Speed Universal Turret Milling

HMC800H Double Position Horizontal Machine Center

132~3700KN HGS Series LVD Hydraulic Guillotine Shears

220KN to 580KN HGN(k) Hydraulic Guillotine Shears

145~165KN HGO(K) Hydraulic Metal Guillotine Shears

100~220KN HGA(K) Hydraulic Guillotine Shears

Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing

What is a Knee Type Milling Machine?

Working Principle

Key Applications

Distinctive Features & Advantages

Primary Classifications

Main Components

Evolution & Industry Significance

Fortune Pacific: Your Knee Mill Solution
