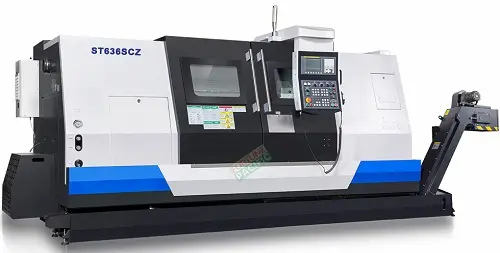

| Item | ST636SCZ |
| Capability | |

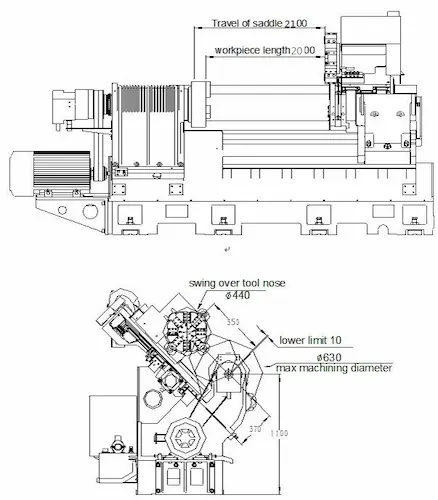

| Max. swing over bed | Φ650mm(25.6’’) |
| Max. swing over saddle | Φ450mm(17.7’’) |
| Max. turning diameter | Φ630mm(24.8’’) |
| Max. machining length | 2000mm(78.7’’) |
| Bar capacity | Φ89mm(3.5’’） (when equipped with 15’’ hydraulic hollow chuck) |
| Spindle | |
| Spindle motor output power | 15/18.5Kw(inverter) |
| Spindle nose | A2-11 |
| Max. spindle speed | 1000rpm |
| Spindle bore diameter | Φ106 mm(4.1’’) |
| Chuck size | 15” inch (Hydraulic solid) |
| X/Z axis travel | |
| X-axis travel | 350mm(13.7’’) |
| Z-axis travel | 2100mm(82.6’’) |
| Rapid traverse of X-axis | 8m/min(314 IPM) |
| Rapid traverse of Z-axis | 12m/min(472 IPM) |
| Turret | |
| Number of tool | 8 |
| Turing tool size | 32x25mm |
| Max. boring tool diameter | Φ50mm |
| Tailstock | |
| Hydraulic tailstock center | MT5 |
| Quill diameter | 130mm |
| Quill travel | 100mm |
| Accuracy | |
| Positioning accuracy (X/Z-axis) | 0.016/0.04mm |
| Repeatability (X/Z-axis) | 0.007/0.02mm |
| Others | |
| Power capacity | 35 kVA |

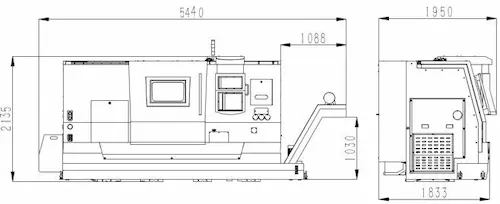

| Machine dimension (L x W x H) | 5440x1950x2135mm |
| Net weight | 10100kg |
| Item 01 | Descriptions | |
| 01.01 | FANUC Oi TF | |
| 01.02 | 1000rpm spindle with gear box (Frequency conversion motor) | |
| 01.03 | 8 position hydraulic turret (refer to follow turret information) | |
| 01.04 | 15’’ solid hydraulic chuck with 1 set soft jaw | |
| 01.05 | Solid hydraulic cylinder | |
| 01.06 | Hydraulic tailstock | |
| 01.07 | Hydraulic system | |
| 01.08 | Air conditioner of electrical cabinet | |
| 01.09 | Auto chip conveyer & chip chart | |
| 01.10 | Auto oil lubrication system | |
| 01.11 | Tri-color light | |
| 01.12 | Air gun | |
| 01.13 | Door lock switch | |
| 01.14 | Lighting lamp | |
| 01.15 | Full enclosure splash guard | |
| 01.16 | Telescopic covers |
| Item 02 | Descriptions | Note |
| 02.01 | SIEMENS 828D 240 | |
| 02.02 | Shop turn | |
| 02.03 | 18.5/22KW inverter spindle motor | |
| 02.04 | 22/26KW inverter spindle motor | |
| 02.05 | FANUC β servo spindle motor, 15/18.5kw | |
| 02.06 | FANUC 0I TF 1 with α servo spindle motor, 22/26kw | |
| 02.07 | SIEMENS servo spindle motor, 17KW | |
| 02.08 | Manual guide 0I | |
| 02.09 | Manual guide I | for FANUC TF1 |
| 02.10 | DATA SERVE 2GB | for FANUC TF1 |
| 02.11 | Tool setter RENISHAW | Manual plug type |
| 02.12 | Tool setter RENISHAW | Auto swing type |
| 02.13 | M30 auto power off | |
| 02.14 | Scraping chip conveyor for aluminums cutting | |
| 02.15 | Magnetic chip conveyor | |
| 02.16 | Oil mister collector | |
| 02.17 | Auto-door (pneumatic control) | |
| 02.18 | 2 year FANUC warranty | |
| 02.19 | 2 year Siemens warranty | |
| 02.20 | CE standard | |
| 02.21 | 380V 50HZ/415V 50 HZ /220V 60 HZ | |
| 02.22 | Transformer | |
| 02.23 | Voltage stabilizer | |
| 02.24 | Bar feeder interface | |
| 02.25 | Auto bar feeder 26mm diameter, 3000mm length | |
| 02.26 | Auto bar feeder 65mm diameter, 1500mm length, DH65L | |
| 02.27 | Auto bar feeder 65mm diameter, 1250mm length, DH65 | |
| 02.28 | Hydraulic spring clamping tail stock | Tail stock body clamp by hydraulic spring |
| 02.29 | Fixed center, M#5 for standard tail stock | |
| 02.30 | Live center M#5 | For option tail stock with live center |
| 02.31 | U drilling tool holder with coolant through 1.5bar/10 bar | |
| 02.32 | Boring tool holder | |
| 02.33 | Boring tool holder sleeve (25, 32, 40) | |
| 02.34 | End face turning tool holder | |
| 02.35 | End face turning tool holder installation block | |
| 02.36 | 12 position hydraulic turret, 25x25, 100mm center height | LioShing, working range change |
| 02.37 | 12 position hydraulic turret, 32X32, 125mm center height | LioShing, working range change |
| 02.38 | Hydraulic steady rest (8—70mm) | Huanke |
| 02.39 | Hydraulic steady rest (20—120mm) | Huanke |
| 02.40 | Hydraulic steady rest (20—165mm) | Huanke |
| 02.41 | Hydraulic steady rest (50—200mm) | Huanke |
| 02.42 | Hydraulic steady rest (70—220mm) | Not available for NL634SC |
| 02.43 | Manual open type steady rest (50—200mm) | |
| 02.44 | Manual closed type steady rest (50—200mm) | |
| 02.45 | Manual closed type steady rest (190—270mm) | |
| 02.46 | Manual closed type steady rest (260—315mm) | |

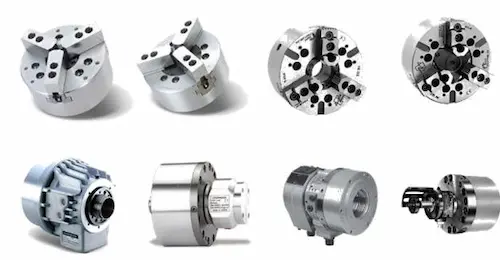

| 02.47 | 15” hollow 3 jaw chuck + solid cylinder | |
| 02.48 | 15” hollow 3 jaw chuck + hollow cylinder | |
| 02.49 | 18” solid 3 jaw chuck + solid cylinder | |
| 02.50 | 18” hollow 3 jaw chuck + solid cylinder | |
| 02.51 | 21” solid 3 jaw chuck + solid cylinder | |
| 02.52 | Manual 3 jaw 15” chuck | Change hydraulic chuck to manual chuck |
| 02.53 | Manual 3 jaw 18” chuck | Change hydraulic chuck to manual chuck |
| 02.54 | Manual 3 jaw 21” chuck | Change hydraulic chuck to manual chuck |
| 02.55 | Soft jaw of 15” chuck | |
| 02.56 | Hard jaw of 15” chuck | |
| 02.57 | Soft jaw of 18” chuck | |
| 02.58 | Hard jaw of 18” chuck | |
| 02.59 | Soft jaw of 18” chuck | |
| 02.60 | Hard jaw of 18” chuck | |
| 02.61 | Chuck air blow | |
| 02.62 | A2-11, spindle bore 132mm, bar capacity 116mm | |
| 02.63 | Air conditioner of electrical cabinet | |
| 02.64 | Proximity switch | |
| 02.65 | Electric switch for door | |
| 02.66 | Coolant tank coolant level sensor | |
| 02.67 | Remove chip conveyer | |
| 02.68 | CNC controller book manuals | |
| 02.69 | Left side chip conveyer | |
| 02.70 | Double chain type chip conveyer | |
| 02.71 | Water gun | Change backside to right side |
| 02.72 | High pressure coolant 5MPa through turret | Not include the U drilling tool holder |
| 02.73 | High pressure coolant 2MPa through turret | Not include the U drilling tool holder |
| 02.74 | Bigger coolant pump, 1MPa |
| ● Standard○ Optional X N/A | ||||||
| Specification | 0I-TF Plus | |||||
| Type 1 | Type 5 | |||||
| 1 | Controlled axis | Controlled axes | 4 | 4 | ||
| 2 | Axis control by PMC | ● | ● | |||
| 3 | Torque control | ● | ● | |||
| 4 | Inch/metric conversion | ● | ● | |||
| 5 | Stored limit check before move | ● | ● | |||
| 6 | Unexpected disturbance torque detection function | ● | ● | |||
| 7 | Position switch | ● | ● | |||
| 8 | Operation | DNC operation with memory card | ● | ● | ||
| 9 | Handle interruption | ● | ● | |||
| 10 | Manual handle retrace | ○ | ○ | |||
| 11 | Interpolation functions | Nano interpolation | ● | ● | ||
| 12 | Linear interpolation | ● | ● | |||
| 13 | Circular interpolation | ● | ● | |||
| 14 | Helical interpolation | ○ | X | |||
| 15 | Thread cutting, synchronous cutting | ● | ● | |||
| 16 | Thread cutting retract | ● | ● | |||
| 17 | Continuous threading | ● | ● | |||
| 18 | High-speed skip | Input signal is 8 points. | ● | ● | ||
| 19 | 2nd reference position return | G30 | ● | ● | ||
| 20 | Feed function | AI contour control I | ○ | ○ | ||
| 21 | AI contour control II | ○ | X | |||
| 22 | Rapid traverse block overlap | ● | ● | |||
| 23 | Program input | Optional block skip | 9 pieces | ● | ○ | |
| 24 | Absolute/incremental programming | Combined use in the same block | ● | ● | ||
| 25 | Diameter/Radius programming | ● | ● | |||
| 26 | Automatic coordinate system setting | ● | ● | |||
| 27 | Workpiece coordinate system | G52 - G59 | ● | ● | ||
| 28 | Chamfering/Corner R | ● | ● | |||
| 29 | Custom macro | ● | ● | |||
| 30 | Addition of custom macro common variables | #100 - #199, #500 - #999 | ● | ● | ||
| 31 | Interruption type custom macro | ● | ○ | |||
| 32 | Canned cycle | ● | ● | |||
| 33 | Multiple repetitive cycles | ● | ● | |||
| 34 | Multiple repetitive cycles II | Pocket profile | ● | ● | ||
| 35 | Canned cycle for drilling | ● | ● | |||
| 36 | Coordinate system shift | ● | ● | |||
| 37 | Direct input of coordinate system shift | ● | ● | |||
| 38 | Pattern data input | ● | ○ | |||
| 39 | Operation Guidance Function |
Manual Guide i | ○ | X | ||
| 40 | Manual Guide 0i | ○ | ○ | |||
| 41 | Auxiliary/ Spindle speed function | Constant surface speed control | ● | ● | ||
| 42 | Rigid tap | ● | ● | |||
| 43 | Arbitrary speed threading | ○ | ○ | |||
| 44 | Tool offset pairs | 128-pairs | ● | ● | ||
| 45 | Tool offset pairs | 200-pairs | ○ | X | ||
| 46 | Tool radius/Tool nose radius compensation | ● | ● | |||
| 47 | Tool geometry/wear compensation | ● | ● | |||
| 48 | Automatic tool offset | ● | ○ | |||
| 49 | Direct input of offset value measured B | ● | ○ | |||
| 50 | Tool life management | ● | ● | |||
| 51 | Accuracy compensation function | Backlash compensation for each rapid traverse and cutting feed | ● | ● | ||
| 52 | Stored pitch error compensation total value input | ○ | ○ | |||
| 53 | Editing operation | (Specify total of part program storage size of each path.) Number of registerable programs |
2Mbyte | ● | ● | |
| expansion 1 : Max. 1000 programs | ● | ● | ||||
| 54 | Playback | ● | ● | |||
| 55 | Data input/ output | Fast data server | ○ | X | ||
| 56 | External data input | ● | ● | |||
| 57 | Memory card input/output | ● | ● | |||
| 58 | USB memory input/output | ● | ● | |||
| 59 | Automatic data backup | ● | ● | |||
| 60 | Interface function | Embedded Ethernet | ● | ● | ||
| 61 | Fast Ethernet | ○ | ○ | |||
| 62 | Others | Display unit | 10.4" color LCD | ● | ● | |
| 63 | Robot interface | Robot interface with PMC I/O module | ○ | ○ | ||
| 64 | Robot interface with PROFIBUS-DP/PROFINET-DP | ○ | ○ | |||
| ● Standard ○ Optional X N/A | ||||||
| No. | Item | Spec. | S828D | |||
| SW24x | SW26x | SW28x | ||||
| 1 | Controlled axis | Controlled axes | 2 axes | X,Z | X,Z | X,Z |
| 2 | Additional controlled axes | 5 | 6+2 | 10+2 | ||
| 3 | Least command increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 4 | Least input increment | 0.001mm (0.0001 inch) | ● | ● | ● | |
| 5 | Travel to fixed stop with Force Control | ○ | ○ | ○ | ||
| 6 | Interpolation & Feed Function | Reference point return | G75 FP=1 | ● | ● | ● |
| 7 | 2nd reference point return | G75 FP=2 | ● | ● | ● | |
| 8 | Inverse time feedrate | G93 | ● | ● | ● | |
| 9 | Helical interpolation | ● | ● | ● | ||
| 10 | Polynomial interpolation | X | X | X | ||
| 11 | Spline interpolation (A, B and C splines) | ○ | ○ | ○ | ||
| 12 | Separate path feedrate for roundings and chamfers | ● | ● | ● | ||
| 13 | Acceleration with Jerk limitation | ● | ● | ● | ||
| 14 | Compressor for 3-axis machining COMPCAD | X | X | X | ||
| 15 | Temperature compensation | ● | ● | ● | ||
| 16 | Look Ahead, recorded part program blocks: | Turning | 1 | 1 | 1 | |
| 17 | ||||||
| 18 | Look Ahead, IPO blocks, buffered: | Turning | 1 | 1 | 1 | |
| 19 | ||||||
| 20 | Cartesian point-to-point (PTP) travel | ● | ● | ● | ||
| 21 | TRANSMIT/cylinder surface transformation | ○ | ○ | ○ | ||
| 22 | Spindle Function | Tapping with compensating chuck/rigid tapping | ● | ● | ● | |
| 23 | Tool Function | Tool radius compensations in plane | ● | ● | ● | |
| 24 | Number of tools/cutting edges in tool list | 128/256 | 256/512 | 768/1536 | ||
| 25 | Tool length compensation | ● | ● | ● | ||
| 26 | Operation with tool management | ○ | ○ | ○ | ||
| 27 | Tool list | ● | ● | ● | ||
| 28 | Replacement tools for tool management | ○ | ○ | ○ | ||
| 29 | Monitoring of tool life and workpiece count | ● | ● | ● | ||
| 30 | Manual measurement of tool offset | ● | ● | ● | ||
| 31 | Magazine list | ● | ● | ● | ||
| 32 | Programming & Editing Function | Number of levels for skip blocks 2 | ● | ● | ● | |
| 33 | Number of levels for skip blocks 10 | ○ | ○ | ○ | ||
| 34 | Program/workpiece management | On additional plug-in CF card | ● | ● | ● | |
| 35 | On USB storage medium (e.g. disk drive, USB stick) | ● | ● | ● | ||
| 36 | On network drive | ○ | ○ | ○ | ||
| 37 | Program editor | Programming support for cycles program(Program Guide) | ● | ● | ● | |
| 38 | CNC editor with editing functions: select, copy, delete | ● | ● | ● | ||
| 39 | Programming graphics/free contour input (contour calculator) | ● | ● | ● | ||
| 40 | ShopTurn Machining step programming | ○ | ○ | ○ | ||
| 41 | Technology cycles for drilling/milling | ● | ● | ● | ||
| 42 | Pocket milling free contour and islands stock removal cycle | ○ | ● | ● | ||
| 43 | Residual material detection | ○ | ○ | ○ | ||
| 44 | Access protection for cycles | ○ | ○ | ○ | ||
| 45 | Programming support can be extended, e.g. customer cycles | ● | ● | ● | ||
| 46 | 2D simulation | ● | ● | ● | ||
| 47 | 3D simulation, finished part | ○ | ○ | ○ | ||
| 48 | OTHERS FUNCTIONS (Operation, setting & Display, etc) |
Switchover: inch/metric | ● | ● | ● | |
| 49 | Manual measurement of zero/work offset | ● | ● | ● | ||
| 50 | Automatic tool/workpiece measurement | ● | ● | ● | ||
| 51 | Reference point approach, automatic/via CNC program | ● | ● | ● | ||
| 52 | Execution from USB or CF card interface on operator panel front | ● | ● | ● | ||
| 53 | Execution from network drive | ○ | ○ | ○ | ||
| 54 | 10.4" color display | ● | ● | ● | ||
| 55 | 15.0" color display | ○ | ○ | ○ | ||
| 56 | Alarms and messages | ● | ● | ● | ||
| 57 | Automatic measuring cycles | ○ | ○ | ○ | ||
| Item | Qty | |
| Tool holder | 32×25 End face tool holder | 1 |
| Φ50 boring tool holder | 3 | |
| Cylindered tool block | 5 | |
| End face tool block | 1 | |
| Boring sleeve | Φ40 | 1 |
| Φ32 | 1 | |
| φ25 | 1 | |
