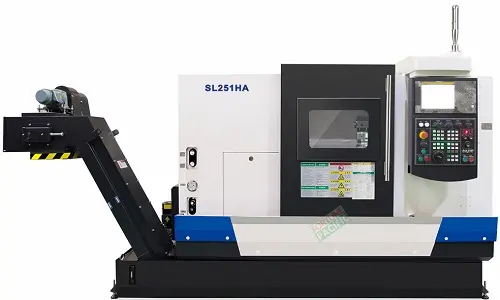

SL251HA Slant Bed CNC Lathe

Each servo feed axis adopts high-speed and silent ball screw, and the elastic coupling is directly connected, which has fast moving speed, low noise, high positioning accuracy and high repetitive positioning accuracy.

SL251HA Slant Bed CNC LatheDownload

INQUIRY

PDF Format

Description

FANUC 0i TF controller specification

Siemens controller specification

Features

Machine specifications

Item	SL251HA
Capability
Max. swing over bed	Φ550mm(21.6’’)
Max. swing over saddle	Φ370mm(14.5’’)
Max. turning diameter	Φ360mm(14.2’’)
Max. machining length	410mm(16.1’’)
Bar capacity	Φ44mm(1.7’’）
Spindle

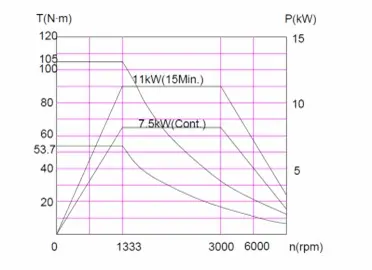

Spindle motor output power	7.5/11kW
Spindle nose	A2-6
Max. spindle speed	5000rpm
Spindle bore diameter	Φ56mm(2.2’’)
Chuck size	8” inch (Hydraulic hollow)
X/Z axis travel
X-axis travel	240mm(9.5’’)
Z-axis travel	430mm(16.9’’)
Rapid traverse of X-axis	24m/min(945 IPM)
Rapid traverse of Z-axis	30m/min(1181 IPM)
Turret
Number of tool	8
Turing tool size	25x25mm
Max. boring tool diameter	Φ40mm
Tailstock (optional)
Hydraulic tailstock center	MT5(live center)
Quill diameter	100mm
Quill travel	100mm
Accuracy
Positioning accuracy (X/Z-axis)	0.006/0.006mm
Repeatability (X/Z-axis)	0.004/0.004mm
Others 
Power capacity	25 kVA
Machine dimension (L x W x H)	3605x1790x1820mm
Net weight	3500kg

Equipments

Item 01	Descriptions
01.01	FANUC Oi TF
01.02	5000rpm belt drive spindle (FANUC servo motor)
01.03	8 position hydraulic turret (refer to follow turret information)
01.04	8’’ hollow hydraulic chuck with 1 set soft jaw
01.05	Solid hydraulic cylinder
01.06	Hydraulic system
01.07	Air conditioner of electrical cabinet
01.08	Auto chip conveyer & chip chart
01.09	Auto oil lubrication system
01.10	Tri-color light
01.11	Air gun
01.12	Door lock switch
01.13	Lighting lamp
01.14	Full enclosure splash guard
01.15	Telescopic covers

Optionals

Item 02	Descriptions	Note
02.01	SIEMENS 828D 240
02.02	Shop turn
02.03	FANUC 0I TF 1 with β MOTOR
02.04	FANUC 0I TF 1 with α MOTOR
02.05	Manual guide 0I
02.06	Manual guide I	for FANUC TF1
02.07	DATA SERVE 2GB	for FANUC TF1
02.08	10.4” touch screen of FANUC controller
02.09	15” screen of FANUC controller	Only for FANUC 1 controller
02.10	15” touch screen of FANUC controller	Only for FANUC 1 controller
02.11	15” touch screen of SIEMENS controller
02.12	Tool setter RENISHAW	Manual plug type
02.13	Tool setter RENISHAW	Auto swing type
02.14	Auto parts catcher	Swing type
02.15	M30 auto power off
02.16	Scraping chip conveyor for aluminums cutting
02.17	Magnetic chip conveyor
02.18	THK linear way and ball screw
02.19	Oil mister collector
02.20	Auto-door (pneumatic control)
02.21	2 year FANUC warranty
02.22	2 year Siemens warranty
02.23	CE standard
02.24	380V 50HZ/415V 50 HZ /220V 60 HZ
02.25	Transformer
02.26	Voltage stabilizer
02.27	Grease lubrication instead of oil
02.28	Bar feeder interface
02.29	Auto bar feeder 26mm diameter, 3000mm length
02.30	Auto bar feeder 65mm diameter, 1500mm length, DH65L
02.31	Auto bar feeder 65mm diameter, 1250mm length, DH65
02.32	Hydraulic tailstock
02.33	Hydraulic spring clamping tail stock (added on the hydraulic tail stock)	Tail stock body clamp by hydraulic spring
02.34	Servo tail stock (turning length 415mm)	Programmable, ball screw and linear way
02.35	Live center M#5
02.36	Fixed center M#4	Optional
02.37	8 position servo turret, 25X25, 80mm center height	LioShing,
02.38	12 position servo turret, 25X25, 100mm center height	LioShing,
02.39	12 position servo turret, 20X20, 80mm center height	LioShing,

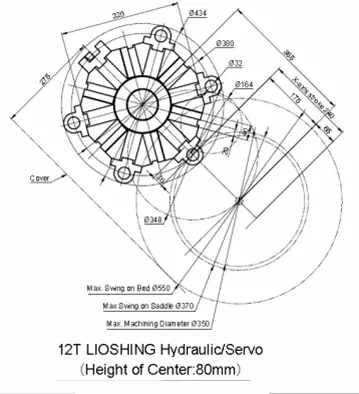

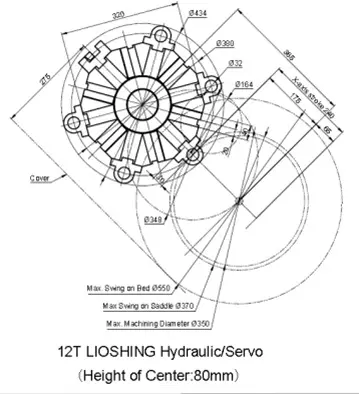

02.40	10 position hydraulic turret, 20X20, 80mm center height	LioShing, Long delivery time, working range change
02.41	12 position hydraulic turret, 20X20, 80mm center height	LioShing, working range change
02.42	12 position hydraulic turret, 25X25, 100mm center height	LioShing, working range change
02.43	U drilling tool holder with coolant through 1.5bar/10 bar
02.44	Boring tool holder
02.45	Boring tool holder sleeve (16, 20, 25)
02.46	End face turning tool holder
02.47	End face turning tool holder installation block
02.48	Spindle bearing FAG instead of NSK
02.49	Hydraulic steady rest (20—120mm)	Not equipped with the servo tail stock
02.50	8” hollow cylinder, 5000rpm
02.51	10” solid chuck, 4000rpm
02.52	10” solid cylinder, 4000rpm
02.53	10” hollow chuck, 4200rpm
02.54	10” hollow cylinder, 4200rpm
02.55	Hydraulic collet chuck
02.56	Collet
02.57	Soft jaw of 8” chuck
02.58	Hard jaw of 8” chuck
02.59	Soft jaw of 10” chuck
02.60	Hard jaw of 10” chuck
02.61	Manual 8” chuck	Change hydraulic chuck to manual chuck
02.62	Manual 10” chuck	Change hydraulic chuck to manual chuck
02.63	A2-6 spindle bore 65mm, bar capacity 51mm, 4000rpm	Include hollow 8” chuck and cylinder
02.64	A2-6 spindle bore 76mm, bar capacity 65mm, 4000rpm	Include hollow 10” chuck and cylinder
02.65	Spindle bearing FAG instead of NSK, 5000rpm (when bigger spindle bore 65mm, bar capacity 51mm)	Include hollow 8” chuck and cylinder
02.66	11/15KW spindle motor β
02.67	15/18.5KW spindle motor β
02.68	Change to inverter spindle motor, 4000rpm
02.69	Air conditioner of electrical cabinet
02.70	High pressure coolant 1MPa
02.71	High pressure coolant 2MPa
02.72	Proximity switch
02.73	Electric switch for door
02.74	Coolant tank coolant level sensor
02.75	Remove chip conveyer
02.76	CNC controller book manuals
02.77	Left side chip conveyer	Change backside to right side
02.78	Water gun
02.79	MPG
02.80	High pressure coolant 5MPa through turret (8 position)
02.81	Two stage hydraulic pressure valve

Construction
Integral
Machine tool for the machine, electricity, liquid integrated layout, 45 ° overall inclined bed, with a compact structure, high rigidity, smooth chip, easy to operate, etc.; rail type for the rolling guide, drive parts using high-speed silent ball screw, With fast speed, less heat, high positioning accuracy of the advantages of machine tools for the whole closed protection, automatic chip removal, automatic lubrication, automatic cooling.

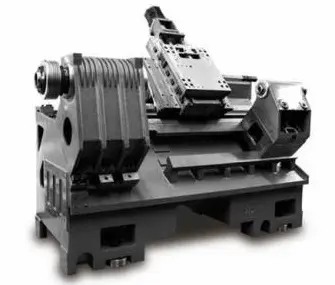

Bed
the whole resin sand and gray cast iron bed, the casting structure by the finite element analysis and optimization, casting by the second aging treatment, with high rigidity and high stability; finishing high precision gantry machining center processing, high geometric accuracy ; Inclined bed layout, with high rigidity, compact structure, smooth chip, easy to operate the advantages of bed guide rail for the rolling guide, the friction coefficient is small, moving fast, high positioning accuracy.
Hydraulic tailstock (option)
The machine features a hydraulic tailstock that can be activated by the program, or controlled via the standard foot switch. The tailstock features an MT5 taper, and provides up to 6.5kN of thrust.

Features
SL251HA CNC horizontal lathe is a two-axis, semi-closed-loop CNC machine tool. The machine tool, electricity, liquid integrated layout, using a fully enclosed protective cover, pull the door to the left, the console is located on the right side of the fixed protective cover, in line with ergonomic design, make the operation more convenient. Each servo feed axis adopts high-speed and silent ball screw, and the elastic coupling is directly connected, which has fast moving speed, low noise, high positioning accuracy and high repetitive positioning accuracy. The servo motor is equipped with an absolute encoder without accumulated error and requires no memory. There is no need to find a reference point and the position information will not be lost after the power is cut off. The machine has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.

FANUC 0i TF controller specification

● Standard○ Optional X N/A
Specification				0I-TF Plus
Specification				Type 1	Type 5
1	Controlled axis	Controlled axes		4	4
2		Axis control by PMC		●	●
3		Torque control		●	●
4		Inch/metric conversion		●	●
5		Stored limit check before move		●	●
6		Unexpected disturbance torque detection function		●	●
7		Position switch		●	●
8	Operation	DNC operation with memory card		●	●
9		Handle interruption		●	●
10		Manual handle retrace		○	○
11	Interpolation functions	Nano interpolation		●	●
12		Linear interpolation		●	●
13		Circular interpolation		●	●
14		Helical interpolation		○	X
15		Thread cutting, synchronous cutting		●	●
16		Thread cutting retract		●	●
17		Continuous threading		●	●
18		High-speed skip	Input signal is 8 points.	●	●
19		2nd reference position return	G30	●	●
20	Feed function	AI contour control I		○	○
21		AI contour control II		○	X
22		Rapid traverse block overlap		●	●
23	Program input	Optional block skip	9 pieces	●	○
24		Absolute/incremental programming	Combined use in the same block	●	●
25		Diameter/Radius programming		●	●
26		Automatic coordinate system setting		●	●
27		Workpiece coordinate system	G52 - G59	●	●
28		Chamfering/Corner R		●	●
29		Custom macro		●	●
30		Addition of custom macro common variables	#100 - #199, #500 - #999	●	●
31		Interruption type custom macro		●	○
32		Canned cycle		●	●
33		Multiple repetitive cycles		●	●
34		Multiple repetitive cycles II	Pocket profile	●	●
35		Canned cycle for drilling		●	●
36		Coordinate system shift		●	●
37		Direct input of coordinate system shift		●	●
38		Pattern data input		●	○
39	Operation Guidance Function	Manual Guide i		○	X
40	Operation Guidance Function	Manual Guide 0i		○	○
41	Auxiliary/ Spindle speed function	Constant surface speed control		●	●
42		Rigid tap		●	●
43		Arbitrary speed threading		○	○
44		Tool offset pairs	128-pairs	●	●
45		Tool offset pairs	200-pairs	○	X
46		Tool radius/Tool nose radius compensation		●	●
47		Tool geometry/wear compensation		●	●
48		Automatic tool offset		●	○
49		Direct input of offset value measured B		●	○
50		Tool life management		●	●
51	Accuracy compensation function	Backlash compensation for each rapid traverse and cutting feed		●	●
52	Accuracy compensation function	Stored pitch error compensation total value input		○	○
53	Editing operation	(Specify total of part program storage size of each path.) Number of registerable programs	2Mbyte	●	●
53			expansion 1 : Max. 1000 programs	●	●
54		Playback		●	●
55	Data input/ output	Fast data server		○	X
56		External data input		●	●
57		Memory card input/output		●	●
58		USB memory input/output		●	●
59		Automatic data backup		●	●
60	Interface function	Embedded Ethernet		●	●
61	Interface function	Fast Ethernet		○	○
62	Others	Display unit	10.4" color LCD	●	●
62	Others	Display unit	10.4" color LCD	●	●
63	Robot interface	Robot interface with PMC I/O module		○	○
64	Robot interface	Robot interface with PROFIBUS-DP/PROFINET-DP		○	○

Siemens controller specification

● Standard ○ Optional X N/A
No.	Item		Spec.	S828D
No.	Item		Spec.	SW24x	SW26x	SW28x
1	Controlled axis	Controlled axes	2 axes	X,Z	X,Z	X,Z
2		Additional controlled axes		5	6+2	10+2
3		Least command increment	0.001mm (0.0001 inch)	●	●	●
4		Least input increment	0.001mm (0.0001 inch)	●	●	●
5		Travel to fixed stop with Force Control		○	○	○
6	Interpolation & Feed Function	Reference point return	G75 FP=1	●	●	●
7		2nd reference point return	G75 FP=2	●	●	●
8		Inverse time feedrate	G93	●	●	●
9		Helical interpolation		●	●	●
10		Polynomial interpolation		X	X	X
11		Spline interpolation (A, B and C splines)		○	○	○
12		Separate path feedrate for roundings and chamfers		●	●	●
13		Acceleration with Jerk limitation		●	●	●
14		Compressor for 3-axis machining COMPCAD		X	X	X
15		Temperature compensation		●	●	●
16		Look Ahead, recorded part program blocks:	Turning	1	1	1
17		Look Ahead, recorded part program blocks:	Turning	1	1	1
18		Look Ahead, IPO blocks, buffered:	Turning	1	1	1
19		Look Ahead, IPO blocks, buffered:	Turning	1	1	1
20		Cartesian point-to-point (PTP) travel		●	●	●
21		TRANSMIT/cylinder surface transformation		○	○	○
22	Spindle Function	Tapping with compensating chuck/rigid tapping		●	●	●
23	Tool Function	Tool radius compensations in plane		●	●	●
24		Number of tools/cutting edges in tool list		128/256	256/512	768/1536
25		Tool length compensation		●	●	●
26		Operation with tool management		○	○	○
27		Tool list		●	●	●
28		Replacement tools for tool management		○	○	○
29		Monitoring of tool life and workpiece count		●	●	●
30		Manual measurement of tool offset		●	●	●
31		Magazine list		●	●	●
32	Programming & Editing Function	Number of levels for skip blocks 2		●	●	●
33		Number of levels for skip blocks 10		○	○	○
34		Program/workpiece management	On additional plug-in CF card	●	●	●
35			On USB storage medium (e.g. disk drive, USB stick)	●	●	●
36			On network drive	○	○	○
37		Program editor	Programming support for cycles program(Program Guide)	●	●	●
38			CNC editor with editing functions: select, copy, delete	●	●	●
39			Programming graphics/free contour input (contour calculator)	●	●	●
40			ShopTurn Machining step programming	○	○	○
41		Technology cycles for drilling/milling		●	●	●
42		Pocket milling free contour and islands stock removal cycle		○	●	●
43		Residual material detection		○	○	○
44		Access protection for cycles		○	○	○
45		Programming support can be extended, e.g. customer cycles		●	●	●
46		2D simulation		●	●	●
47		3D simulation, finished part		○	○	○
48	OTHERS FUNCTIONS (Operation, setting & Display, etc)	Switchover: inch/metric		●	●	●
49		Manual measurement of zero/work offset		●	●	●
50		Automatic tool/workpiece measurement		●	●	●
51		Reference point approach, automatic/via CNC program		●	●	●
52		Execution from USB or CF card interface on operator panel front		●	●	●
53		Execution from network drive		○	○	○
54		10.4" color display		●	●	●
55		15.0" color display		○	○	○
56		Alarms and messages		●	●	●
57		Automatic measuring cycles		○	○	○

SL251HA CNC horizontal lathe is a two-axis, semi-closed-loop CNC machine tool. The machine tool, electricity, liquid integrated layout, using a fully enclosed protective cover, pull the door to the left, the console is located on the right side of the fixed protective cover, in line with ergonomic design, make the operation more convenient. Each servo feed axis adopts high-speed and silent ball screw, and the elastic coupling is directly connected, which has fast moving speed, low noise, high positioning accuracy and high repetitive positioning accuracy. The servo motor is equipped with an absolute encoder without accumulated error and requires no memory. There is no need to find a reference point and the position information will not be lost after the power is cut off. The machine has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.

WF45 Toolroom Milling Machine

MF25V Variable Speed Universal Turret Milling

GMC3227B CNC Bridge-type Gantry Machining Center

GMC0916 CNC Gantry Type Machining Center

HMC800H Double Position Horizontal Machine Center

SL251HA Slant Bed CNC Lathe

SL253HA Inclined Bed CNC Lathe

C500K Slant Bed Lathe with Hydraulic Turret

C400K Slant Bed Lathe with Hydraulic Turret

CDS100 Slant Bed CNC Lathe with SIEMENS 828D
