SL402HA Inclined Bed CNC Lathe
  • SL402HA Inclined Bed CNC Lathe
  • SL402HA Inclined Bed CNC Lathe
  • SL402HA Inclined Bed CNC Lathe
  • SL402HA Inclined Bed CNC Lathe
  • SL402HA Inclined Bed CNC Lathe

SL402HA Inclined Bed CNC Lathe

SL402HA CNC lathe features a 30° inclined bed for high precision, max swing 400mm, spindle speed 2000 RPM, and rigid construction. Ideal for industrial turning, reducing vibration and improving accuracy. Visit fortunepacific.net.
  • SL402HA Inclined Bed CNC LatheDownload
INQUIRY
Machine specifications
Item SL402HA
Capability
Max. swing over bed Φ650mm(25.6’’)
Max. swing over saddle Φ480mm(18.9’’)
Max. turning diameter Φ510mm(20.0’’)
Max. machining length 565mm(22.2’’)
Bar capacity Φ51mm(2.0’’
(when equipped with 10’’hydraulic hollow chuck)
Spindle
Spindle motor output power 11/15kW
Spindle nose A2-6
Max. spindle speed 30-4000rpm

Spindle bore diameter Φ65mm(2.56’’)
Chuck size 10” inch (Hydraulic solid)
X/Z axis travel
X-axis travel 280mm(11.0’’)
Z-axis travel 600mm(23.6’’)
Rapid traverse of X-axis 24m/min(945 IPM)
Rapid traverse of Z-axis 30m/min(1181 IPM)

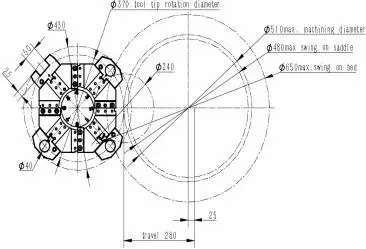

Turret
Number of  tool 8
Turing tool size 25x25mm
Max. boring tool diameter Φ40mm
Tailstock
Hydraulic tailstock center MT5(live center)
Quill diameter 100mm
Quill travel 100mm
Accuracy
Positioning accuracy (X/Z-axis)      0.010/0.010mm
Repeatability (X/Z-axis) 0.004/0.004mm
Others 
Power capacity 25 kVA
Machine dimension (L x W x H) 4570x1885x1955mm

Net weight 4400kg

Equipments
Item 01 Descriptions
01.01 FANUC Oi TF
01.02 4000rpm belt drive spindle (FANUC servo motor)
01.03 8 position hydraulic turret (refer to follow turret information)
01.04 10’’ solid hydraulic chuck with 1 set soft jaw
01.05 Solid hydraulic cylinder
01.06 Hydraulic tailstock
01.07 Hydraulic system
01.08 Air conditioner of electrical cabinet
01.09 Auto chip conveyer & chip chart
01.10 Auto oil lubrication system
01.11 Tri-color light
01.12 Air gun
01.13 Door lock switch
01.14 Lighting lamp
01.15 Full enclosure splash guard
01.16 Telescopic covers

Optionals
Item 02 Descriptions Note
02.01 SIEMENS 828D 240
02.02 Shop turn
02.03 FANUC 0I TF 1 with  β MOTOR
02.04 FANUC 0I TF 1 with  α MOTOR
02.05 Manual guide 0I
02.06 Manual guide I for FANUC TF1
02.07 DATA SERVE 2GB for FANUC TF1
02.08 10.4” touch screen of FANUC controller
02.09 15” screen of FANUC controller Only for FANUC 1 controller
02.10 15” touch screen of FANUC controller Only for FANUC 1 controller
02.11 15” touch screen of SIEMENS controller
02.12 Tool setter RENISHAW Manual plug type
02.13 Tool setter RENISHAW Auto swing type
02.14 Auto parts catcher Swing type
02.15 M30 auto power off
02.16 Scraping chip conveyor for aluminums cutting
02.17 Magnetic chip conveyor
02.18 THK ball screw
02.19 Oil mister collector
02.20 Auto-door (pneumatic control)
02.21 2 year FANUC warranty
02.22 2 year Siemens warranty
02.23 CE standard
02.24 380V 50HZ/415V 50 HZ /220V 60 HZ
02.25 Transformer
02.26 Voltage stabilizer
02.27 Bar feeder interface
02.28 Auto bar feeder 26mm diameter, 3000mm length
02.29 Auto bar feeder 65mm diameter, 1500mm length, DH65L
02.30 Auto bar feeder 65mm diameter, 1250mm length, DH65
02.31 Hydraulic spring clamping tail stock Tail stock body clamp by hydraulic spring
02.32 Linear scale X/Z axis
02.33 Fixed center, M#4 for standard tail stock
02.34 Live center M#5 For option tail stock with live center
02.35 8 position servo turret, 25X25, 80mm center height LioShing,
02.36 12 position servo turret, 25X25, 100mm center height LioShing,
02.37 12 position servo turret, 20X20, 80mm center height LioShing,
02.38 10 position hydraulic turret, 20X20, 80mm center height LioShing, Long delivery time, working range change
02.39 12 position hydraulic turret, 20X20, 80mm center height LioShing, working range change
02.40 12 position hydraulic turret, 25X25, 100mm center height LioShing, working range change
02.41 Spindle bearing FAG instead of NSK
02.42 Hydraulic steady rest (20—120mm) Not equipped with the servo tail stock
02.43 Hydraulic steady rest (20—165mm) Not equipped with the servo tail stock
02.44 Hydraulic steady rest (50—200mm)
02.45 Manual open type steady rest (50—200mm)
02.46 10” hollow chuck
02.47 10” hollow cylinder
02.48 12” solid chuck
02.49 12” solid cylinder
02.50 12” hollow chuck
02.51 12” hollow cylinder
02.52 Soft jaw of 10” chuck
02.53 Hard jaw of 10” chuck
02.54 Soft jaw of 12” chuck
02.55 Hard jaw of 12” chuck
02.56 Manual 10” chuck Change hydraulic chuck to manual chuck
02.57 Manual 12” chuck Change hydraulic chuck to manual chuck
02.58 15/18.5KW spindle motor β
02.59 A2-8 spindle bore 92mm, bar capacity 74mm, 2800rpm Need apply 10” chuck & cylinder, not include chuck & cylinder
02.60 A2-8 spindle bore 106mm, bar capacity 90mm, 2500rpm Need apply 12” chuck & cylinder, not include chuck & cylinder
02.61 A2-8 spindle bore 106mm, bar capacity 92mm, 2500rpm Including bigger 12” chuck & cylinder
02.62 ZF gear box Need the bigger spindle bore
02.63 ZF gear box & 15/18.5KW FANNUC servo βspindle motor, A2-8 spindle, spindle bore 106mm, bar capacity 90mm, 2000rpm Including 12” chuck & cylinder, P2091
02.64 ZF gear box & 15/18.5KW FANNUC servo βspindle motor, A2-8 spindle, spindle bore 106mm, bar capacity 92mm, 2000rpm Including bigger 12” chuck & cylinder
02.65 Air conditioner of electrical cabinet
02.66 Proximity switch
02.67 Electric switch for door
02.68 Coolant tank coolant level sensor
02.69 Remove chip conveyer
02.70 CNC controller book manuals
02.71 Left side chip conveyer
02.72 Water gun Change backside to right side
02.73 MPG
02.74 High pressure coolant 5MPa through turret Not include the U drilling tool holder
02.75 High pressure coolant 1MPa Not include the U drilling tool holder
02.76 High pressure coolant 2MPa
02.77 Two stage hydraulic pressure valve

Construction
Integral
Machine tool for the machine, electricity, liquid integrated layout, 45 ° overall inclined bed, with a compact structure, high rigidity, smooth chip, easy to operate, etc.; rail type for the rolling guide, drive parts using high-speed silent ball screw, With fast speed, less heat, high positioning accuracy of the advantages of machine tools for the whole closed protection, automatic chip removal, automatic lubrication, automatic cooling.
Bed
The whole resin sand and gray cast iron bed, the casting structure by the finite element analysis and optimization, casting by the second aging treatment, with high rigidity and high stability; finishing high precision gantry machining center processing, high geometric accuracy ; Inclined bed layout, with high rigidity, compact structure, smooth chip, easy to operate the advantages of bed guide rail for the rolling guide, the friction coefficient is small, moving fast, high positioning accuracy.
Spindle
Spindle motor with FANUC servo motor, belt speed drive; Spindle bearings imported high precision angular contact ball bearings, high speed, high precision rotation, low temperature rise. High-rigidity spindle components, the former support the use of 70 series angular contact ball bearings, carrying capacity, suitable for no caged frame support cantilever cutting; spindle components in the constant temperature environment assembly, and strict balance of the adjustment.
Turret

High reliability hydraulic turret with quick tool change and high stability.

Features
SL402HA CNC horizontal Inclined lathe is a two-axis, semi-closed-loop CNC machine tool. The machine tool, electricity, liquid integrated layout, using a fully enclosed protective cover, pull the door to the left, the console is located on the right side of the fixed protective cover, in line with ergonomic design, make the operation more convenient. Each servo feed axis adopts high-speed and silent ball screw, and the elastic coupling is directly connected, which has fast moving speed, low noise, high positioning accuracy and high repetitive positioning accuracy. The servo motor is equipped with an absolute encoder without accumulated error and requires no memory. There is no need to find a reference point and the position information will not be lost after the power is cut off. The machine has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
Discover the SL402HA Precision CNC Slant Bed Lathe engineered for exceptional machining accuracy and production efficiency This advanced inclined bed lathe features a robust 45-degree cast iron structure enhancing rigidity and vibration damping for superior surface finishes Ideal for high-speed turning of complex parts in automotive aerospace and medical industries it incorporates linear roller guides on all axes ensuring ±0003mm repeatability The integrated 12-station hydraulic turret and programmable tailstock support uninterrupted operations while the high-torque spindle motor delivers consistent power across its 50-2500 RPM range Optimize your workshop with this reliable CNC turning center offering easy chip evacuation reduced setup times and minimal maintenance requirements Experience German engineering precision with Fanuc or Siemens controls tailored for demanding batch production and precision component manufacturing Präzisions-CNC-Drehmaschine mit Schrägbett SL402HA für höchste Bearbeitungsgenauigkeit und Produktionseffizienz Diese hochwertige schräge Drehmaschine überzeugt mit einem robusten 45-Grad-Gussgehäuse das Steifigkeit und Schwingungsdämpfung optimiert für erstklassige Oberflächen Perfekt für die Hochgeschwindigkeitsbearbeitung komplexer Teile in Automobil Luftfahrt und Medizintechnik Ausgestattet mit Linearrollenführungen auf allen Achsen für Wiederholgenauigkeiten von ±0003mm Das integrierte 12-stationige Revolverdrehwerk und programmierbare Reitstock ermöglichen durchgängige Bearbeitungsprozesse Der Hochleistungsspindelmotor bietet konstante Leistung im Bereich von 50-2500 U/min Profitieren Sie von effizienter Spanabfuhr reduzierten Rüstzeiten und minimalem Wartungsaufwand Diese zuverlässige CNC-Drehmaschine mit Fanuc oder Siemens Steuerung ist ideal für anspruchsvolle Serienfertigung und Präzisionsbauteile Strungheri CNC cu pat înclinat SL402HA pentru strunjire de precizie și productivitate maximă Această mașină unelte avansată beneficiază de o construcție robustă din fontă la 45 de grade oferind rigiditate superioară și amortizare vibrații pentru finisaje impecabile Ideală pentru prelucrarea rapidă a pieselor complexe din auto aeronautică și medical Echipată cu ghidaje lineare cu rulmenți pe toate axele asigurând o repetabilitate de ±0003mm Turreta hidraulică cu 12 poziții și pupa programabilă permit operațiuni neîntrerupte iar motorul axului principal oferă cuplu ridicat la 50-2500 RPM Optima pentru producția în serie reducerea timpilor de pregătire și evacuarea eficientă a așchiilor O soluție fiabilă de strunjire CNC cu control Fanuc sau Siemens pentru fabricarea componentelor de precizie Nagy pontosságú SL402HA ferdeágyas CNC esztergagép kiváló megmunkálási minőség és hatékonyság érdekében Ez a robusztus 45 fokos öntöttvas szerkezetű ferde ágyas eszterga kiváló merevséget és rezgéselszívást biztosít tökéletes felületi minőséghez Ideális összetett alkatrészek nagysebességű megmunkálására autóiparban repülésben és egészségügyben Lineáris görgős vezetékek minden tengelyen ±0003mm ismétlési pontosságot garantálnak A 12 pozíciós hidraulikus revolver és programozható módszár folyamatos megmunkálást tesz lehetővé míg a nagy nyomatékú főorsó motor 50-2500 RPM tartományban biztosítja a teljesítményt Növelje műhelye hatékonyságát ezzel a megbízható CNC esztergával optimális forgácseltávolítással gyors beállítási idővel és alacsony karbantartási igénnyel Fanuc vagy Siemens vezérlésű megoldás precíz alkatrészgyártáshoz και αξιόπιστο CNC τόρνος με κεκλιμένο κρεβάτι SL402HA για ακραία ακρίβεια και παραγωγική απόδοση Αυτό το προηγμένο μηχάνημα με κλίση 45 μοιρών προσφέρει ακαμψία και απόσβεση κραδασμών χάρη στη χυτή σιδερένια κατασκευή ιδανικό για εξαιρετικές επιφανειακές ολοκληρώσεις Βέλτιστο για εργασία με υψηλές ταχύτητες σε σύνθετα εξαρτήματα αυτοκινήτου αεροδιαστημικής και ιατρικής Τα γραμμικά ρουλεμάν σε όλους τους άξονες εξασφαλίζουν επαναληψιμότητα ±0003mm Ο υδραυλικός περιστροφικός φορέας 12 θέσεων και το προγραμματιζόμενο πιγκάμι επιτρέπουν αδιάλειπτη λειτουργία ενώ ο κινητήρας του ατράκτου παρέχει σταθερή ισχύ 50-2500 RPM Βελτιστοποιήστε την παραγωγικότητα με εύκολη απομάκρυνση τσιπ γρήγορο χρόνο ρύθμισης και ελάχιστη συντήρηση Αξιόπιστη λύση CNC με Fanuc ή Siemens έλεγχο για απαιτητικές εφαρμογές και κατασκευή ακριβών εξαρτημάτων Vysoce přesná CNC soustruh se šikmým ložem SL402HA pro špičkovou obráběcí přesnost a produktivitu Tento pokročilý soustruh se šikmou konstrukcí 45 stupňů z litiny zvyšuje tuhost a tlumí vibrace pro vynikající povrchovou úpravu Ideální pro vysokorychlostní obrábění složitých součástí v automobilovém leteckém a lékařském průmyslu Vybaven lineárními valivými vedeními na všech osách zajišťuje opakovatelnost ±0003mm Integrovaný 12polohový revolver a programovatelná koník umožňují nepřetržitý provoz Vysoce točivý hlavní vřeteno poskytuje konzistentní výkon v rozsahu 50-2500 RPM Optimalizujte svou výrobu s efektivním odvodem třísek krátkým časem seřízení a minimální údržbou Toto spolehlivé CNC obráběcí centrum s ovládáním Fanuc nebo Siemens je ideální pro sériovou výrobu přesných součástek
