CNC Pipe Threading Lathe Home > Turning CNC Lathe > CNC Pipe Threading Lathe

PT630 CNC Oil Field Pipe Threading Lathe

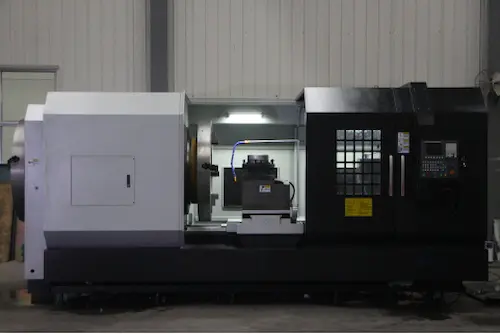

PT630 CNC Oil Country Oil Field Pipe Threading Lathe threading range is Φ330-630mm, suitable to process all kinds of large, big and middle-sized work piece, and various threads, circle arc, circular cone, inside and outside surface of revolved body.

PT630 CNC Oil Country Pipe Threading LatheDownload

INQUIRY

PDF Format

Description

Briefs

Usage

Specifications

Technical parameters of PT630 CNC Oil Country Pipe Threading Lathe

Items	PT430
Capacity
Max swing over bed	Ø1400mm
Max swing over cross slide	Ø800mm
Pipe threading range	Φ330-630mm
Width of bed way	1100mm
Max. load capacity	10000kg
Distance between centers	1500/3000mm
Spindle
Spindle bore	Φ640mm
Spindle speed steps	3steps (Variable frequency )
Spindle speed range	2-120rpm
Chuck size	Φ1250mm（4-jaw electrical combination chuck）
Spindle motor power	37kW
Travel and rapid traverse
X axis travel	750mm
Z axis travel	1250/2750mm
X axis rapid traverse speed	4m/min
Z axis rapid traverse speed	4m/min
Turret
Number of tool station	4-position
Tool cross section	50x50mm
Tailstock
Tailstock sleeve diameter	Φ220mm
Tailstock sleeve travel	300mm
Tailstock sleeve taper (manual)	Metric80
Others
Overall dimensions (L×W×H)	1500mm: 5600 x2500x2500mm 1500mm 7100x2500x2500mm
Net weight	1500mm :18000kg 3000mm :19300kg

Equipments

Item 01	Descriptions
01.01	SIEMENS 808DA
01.02	SIEMENS servo motor of X/Z axis
01.03	Inverter spindle motor
01.04	4-jaw electrical combination chuck Φ1250mm
01.05	Manual tailstock
01.06	4-station electric tool post
01.07	Coolant system.
01.08	Lubrication system
01.09	Working light
01.10	Signal light;
01.11	Safety door-lock;
01.12	Foundation bolt

Optionals

Item 02	Descriptions
02.01	FANUC 0i TF/ SIEMENS 828D
02.02	Rear support bracket
02.03	Steady rest

Briefs

1. This machine was designed for use in demanding petroleum industry applications and integrates decades of experience.

2. The wide machine bed features large, hardened and ground guide ways and high rigidity.

3. Massive headstock with main spindle running in tapered roller bearings, and 2 lathe chuck mounts.

4. Hardened and ground gears for effective power transmission.

5. Heavy-duty 4-station tool holder with automatic tool changing function.

6. Including high-performance coolant system, and central lubrication unit.

Use
PT630 CNC Oil Country Oil Field Pipe Threading Lathe is suitable to process all kinds of large, big and middle-sized Oil Country Pipe work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body.
