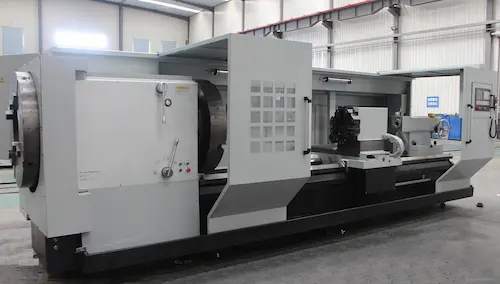

PT430 CNC Oil Field Pipe Threading Lathe
PT430 CNC Oil Country oil field Pipe Threading Lathe threading range is Φ270-430mm, suitable to process all kinds of big and middle-sized Oil Country Pipe work piece, and could also turn various threads, circle arc, circular cone.
PT430 CNC Oil Country Pipe Threading Lathe
Download
INQUIRY
PDF Format
Description
Usages
Equipments
Optional
Technical parameters of PT430 CNC Oil field Pipe Threading Lathe
Items
PT430
Capacity
Max swing over bed
Ø100
0mm
Max swing over cross slide
Ø610mm
Pipe threading range
Φ270-430mm
Width of bed way
755mm
Max. load capacity
6000kg
Distance between centers
1500/3000mm
Spindle
Spindle bore
Φ440mm
Spindle speed steps
3steps (
Variable frequency )
Spindle speed range
8-205rpm
Chuck size
Φ1000mm
(
4-jaw electrical combination chuck
)
Spindle motor power
22kW
Travel and rapid traverse
X axis travel
520mm
Z axis travel
1250/2750mm
X axis rapid traverse speed
4m/min
Z axis rapid traverse speed
4m/min
Turret
Number of tool station
4-position
Tool cross section
50x50mm
Tailstock
Tailstock sleeve diameter
Φ160mm
Tailstock sleeve travel
300mm
Tailstock sleeve taper (manual)
MT-6
Others
Overall dimensions (L×W×H)
1500mm: 5000x2200x2100mm
3000mm: 6500x2200x2100mm
Net weight
1500mm:13000kg
3000mm:11000kg
Equipments
Item 01
Descriptions
01.01
SIEMENS
808DA
01.02
SIEMENS servo motor of X/Z axis
01.03
Inverter spindle motor
01.04
4-jaw electrical combination chuck
Φ1000mm
01.05
Manual tailstock
01.06
4-station electric tool post
01.07
Coolant system.
01.08
Lubrication system
01.09
Working light
01.10
Signal light;
01.11
Safety door-lock;
01.12
Foundation bolt
Optionals
Item 02
Descriptions
02.01
FANUC 0i TF/ SIEMENS 828D/ GSK980TDi
02.02
Rear support bracket
02.03
Steady rest
Use
PT430 CNC Oil Country oil field Pipe Threading Lathe is suitable to process all kinds of big and middle-sized Oil Country Pipe work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body.
Briefs
This machine was designed for use in demanding petroleum industry applications and integrates decades of experience
The wide machine bed features large, hardened and ground guide ways and high rigidity
Massive headstock with main spindle running in tapered roller bearings, and 2 lathe chuck mounts
Hardened and ground gears for effective power transmission
Heavy-duty 4-station tool holder with automatic tool changing function
Including high-performance coolant system, and central lubrication unit
PT430 CNC Oil Country oil field Pipe Threading Lathe is suitable to process all kinds of big and middle-sized Oil Country Pipe work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body.
Item 01
Descriptions
01.01
SIEMENS
808DA
01.02
SIEMENS servo motor of X/Z axis
01.03
Inverter spindle motor
01.04
4-jaw electrical combination chuck
Φ1000mm
01.05
Manual tailstock
01.06
4-station electric tool post
01.07
Coolant system.
01.08
Lubrication system
01.09
Working light
01.10
Signal light;
01.11
Safety door-lock;
01.12
Foundation bolt
Item 02
Descriptions
02.01
FANUC 0i TF/ SIEMENS 828D/ GSK980TDi
02.02
Rear support bracket
02.03
Steady rest
