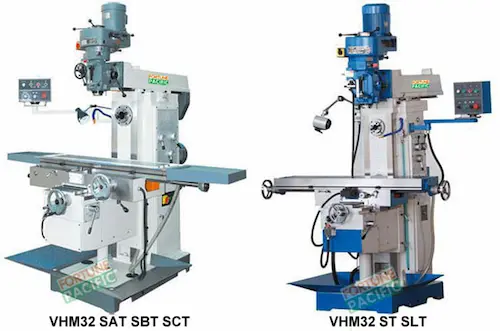

VHM32 Horizontal Vertical Knee Milling Machine
VHM32 Universal Knee Mill: Manual vertical & horizontal milling machine. 3HP, 54" x 12" table, ISO40 spindle, knee-type design. Precision machining for toolrooms, maintenance & production. Robust cast iron construction. Versatile workshop workhorse.
- VHM32 Horizontal and Vertical Knee type Milling MachineDownload
Machine specifications
Equipments
Optionals
Features
1. Rigid frame design with wide guideways and travels;
2. Hardened guideways ensure wear-resistance and long-term accuracy in all machine operations;
3. All gears are hardened and ground for quiet operation and long life;
4. Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free;
5. Automatic quill stroke features 3 steps and micrometer depth stop, plus automatic shut off;
6. Servo-conventional drives on all axes, infinitely variable with fast rapid feeds;
7. Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors;
8. Pneumatic tool clamping is optional;
Applications
VHM32 VHM32C VHM32CL Horizontal and Vertical Knee type Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
| Items | VHM32 | VHM32C | VHM32CL | |
| Working area | ||||
| Worktable size (L×W) | 1325x320mm | 1325x320mm | 1600x320mm | |
| T slot (Width x No. x pitch) | 18x3x70mm | |||
| Max. load of table | 500kg | |||
| Table rotation | optional: ±45° | optional: ±45° | optional: ±45° | |
| Distance from horizontal spindle center to worktable surface | 20-470mm | 20-470mm | 20-470mm | |
| Distance from spindle nose to table surface | 200-650mm | 200-650mm | 200-650mm | |
| Travels | ||||
| Worktable travel (X) | 750mm | 1100mm | 1300mm | |
| Worktable travel (Y) | 320mm | 320mm | 320mm | |
| Worktable travel (Z) | 450mm | 450mm | 450mm | |
| Ram travel | 550mm | 550mm | 550mm | |
| Spindle | ||||
| Horizontal spindle speed | 12 steps;60-1800rpm | |||
| Spindle taper(Horizontal) | 7:24, ISO50 | |||
| Motor power(Horizontal) | Horizontal: 5.5kW; | |||
| Vertical spindle speed | 16 steps; 65-4660rpm | |||
| Spindle taper(Vertical) | 7:24, ISO40 | |||
| Quill travel | 127mm (5”) | |||
| Automatic feed of quill | 0.038/0.076/0.152mm/rev | |||
| Motor power (Vertical) | Vertical: 5HP | |||
| Feed | ||||
| Rapid feed (X/Y/Z) | 1200/800/600mm/min | |||
| Feed range (X) | 30-750mm/min | |||
| Feed range (Y) | 20-500mm/min | |||
| Feed range (Z) | 15-375mm/min | |||
| Others | ||||
| Machine size (L×W×H) | 1800x2100x2500mm | 2245x2100x2500mm | 2500x2100x2500mm | |
| Net weight | 2685kg | 2750kg | 2800kg | |
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assembly; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Central lubrication | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Operator manual |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Spindle cover | |
| 02.03 | Worktable cover | |
| 02.04 | Hang up panel(Aluminum) | |
| 02.05 | Dividing head | |
| 02.06 | Rotary table | |
| 02.07 | Machine vise 160mm | |
| 02.08 | Milling chuck (ISO40) | |
| 02.09 | Clamping kits | |
| 02.10 | Variable milling head (5HP) | |
| 02.11 | Work table rotary±45° | |
| 02.12 | Pneumatic tool clamping |
1. Rigid frame design with wide guideways and travels;
2. Hardened guideways ensure wear-resistance and long-term accuracy in all machine operations;
3. All gears are hardened and ground for quiet operation and long life;
4. Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free;
5. Automatic quill stroke features 3 steps and micrometer depth stop, plus automatic shut off;
6. Servo-conventional drives on all axes, infinitely variable with fast rapid feeds;
7. Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors;
8. Pneumatic tool clamping is optional;
Applications
VHM32 VHM32C VHM32CL Horizontal and Vertical Knee type Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
Features
1. Rigid frame design with wide guideways and travels;
2. Hardened guideways ensure wear-resistance and long-term accuracy in all machine operations;
3. All gears are hardened and ground for quiet operation and long life;
4. Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free;
5. Automatic quill stroke features 3 steps and micrometer depth stop, plus automatic shut off;
6. Servo-conventional drives on all axes, infinitely variable with fast rapid feeds;
7. Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors;
8. Pneumatic tool clamping is optional;
1. Rigid frame design with wide guideways and travels;
2. Hardened guideways ensure wear-resistance and long-term accuracy in all machine operations;
3. All gears are hardened and ground for quiet operation and long life;
4. Swivelling vertical cutter head with low-maintenance belt drive, quiet and vibration-free;
5. Automatic quill stroke features 3 steps and micrometer depth stop, plus automatic shut off;
6. Servo-conventional drives on all axes, infinitely variable with fast rapid feeds;
7. Rigid boom and outer arbor support for secure and vibration-free guidance of milling arbors;
8. Pneumatic tool clamping is optional;
Discover the VHM32 Universal Milling Machine, your ultimate metalworking solution for high-precision machining. This versatile knee mill excels as both a horizontal mill and vertical mill, featuring a robust cast iron construction for superior rigidity and vibration damping. Its powerful spindle motor delivers consistent torque for efficient metal cutting operations like facing, slotting, drilling, and gear cutting on steel, aluminum, and alloys. Key components include the precision-ground worktable, adjustable knee, durable column, and versatile overarm support. Widely used in toolrooms, job shops, prototyping, and maintenance facilities, the VHM32 offers exceptional accuracy, repeatability, and long-term reliability. Experience enhanced productivity with its user-friendly controls and smooth operation. Explore this top-rated industrial milling machine for sale now. Универсальный фрезерный станок VHM32 — идеальное решение для высокоточной обработки металла. Этот консольно-фрезерный станок (горизонтально фрезерный и вертикально фрезерный) отличается массивной чугунной станиной, обеспечивающей исключительную жесткость и гашение вибраций. Мощный шпиндель гарантирует стабильный крутящий момент для эффективных операций: фрезерование плоскостей, пазов, сверление, нарезание зубьев по стали, алюминию и сплавам. Основные узлы: высокоточный стол, регулируемый консоль, прочная стойка, универсальная траверса. Широко применяется в инструментальных цехах, ремонте, прототипировании и мелкосерийном производстве. VHM32 обеспечивает превосходную точность обработки, повторяемость и долговечность. Повысьте производительность благодаря интуитивному управлению и плавной работе. Надежный промышленный станок для металла ждет вас. Descubra la Fresadora Universal VHM32, su solución definitiva para el mecanizado de precisión en metal. Este versátil fresadora de torreta funciona excepcionalmente como fresadora horizontal y fresadora vertical, con construcción robusta de hierro fundido para máxima rigidez y amortiguación de vibraciones. Su potente motor del husillo ofrece par constante para operaciones eficientes de corte de metal: planeado, fresado de ranuras, taladrado y tallado de engranajes en acero, aluminio y aleaciones. Componentes clave: mesa rectificada de precisión, ménsula ajustable, columna duradera y puente versátil. Ideal para talleres de herramientas, mantenimiento, prototipado y producción de piezas, la VHM32 brinda precisión excepcional, repetibilidad y confiabilidad a largo plazo. Aumente su productividad con controles intuitivos y operación suave. Máquina fresadora industrial de alta calidad disponible. Conheça a Fresadora Universal VHM32, a solução definitiva para usinagem de alta precisão em metal. Esta versátil fresadora de mesa móvel (fresadora horizontal e fresadora vertical) possui construção robusta em ferro fundido para máxima rigidez e amortecimento de vibrações. Seu potente motor do eixo árvore oferece torque consistente para operações eficientes de corte: plaina, ranhura, furação e engrenagens em aço, alumínio e ligas. Componentes principais: mesa retificada de precisão, coluna ajustável, estrutura durável e ponte versátil. Amplamente utilizada em ferramentarias, manutenção, prototipagem e oficinas mecânicas, a VHM32 oferece precisão excepcional, repetibilidade e confiabilidade. Máquina de fresar industrial de alta performance com operação suave e controles fáceis. Fresadora para metalurgia de qualidade superior. Temukan Mesin Frais Universal VHM32, solusi unggulan untuk pengerjaan logam presisi tinggi. Mesin frais lutut serbaguna ini beroperasi sebagai mesin frais horizontal dan mesin frais vertikal, dengan konstruksi besi cor kokoh untuk kekakuan maksimal dan peredam getaran. Motor spindle bertenaga memberikan torsi konsisten untuk operasi pemotongan logam efisien: facing, alur, pengeboran, roda gigi pada baja, aluminium & paduan. Komponen utama: meja kerja presisi, lutut bisa disetel, kolom kuat, overarm serbaguna. Digunakan luas di bengkel perkakas, perawatan mesin, pembuatan prototipe, dan bengkel permesinan, VHM32 menawarkan akurasi luar biasa, kemampuan pengulangan, dan keandalan jangka panjang. Mesin milling industri berkualitas tinggi untuk pengerjaan logam, operasi lancar dan kontrol mudah. Mesin frais universal terbaik untuk kebutuhan bengkel Anda. دستگاه فرز جهانی VHM32 را کشف کنید، راه حل نهایی شما برای ماشینکاری دقیق فلزات. این دستگاه فرز زانوئی همه کاره هم به عنوان فرز افقی و هم فرز عمودی عالی عمل می کند و دارای ساختاری مستحکم از چدن برای صلبیت فوق العاده و میرایی ارتعاشات است. موتور اسپیندل قدرتمند آن گشتاوری پایدار برای عملیات برش فلزات مانند تراشکاری سطح، شیارزنی، سوراخکاری و دنده زنی روی فولاد، آلومینیوم و آلیاژها ارائه می دهد. اجزای اصلی شامل میز کار دقیق سنگ خورده، زانوی قابل تنظیم، ستون بادوام و بازوی متحرک همه کاره می شود. کاربرد گسترده در ابزارسازی، تعمیرگاه ها، نمونه سازی و کارگاه های تولید قطعات، VHM32 دقت استثنایی، قابلیت تکرار و قابلیت اطمینان بلندمدت ارائه می دهد. بهره وری را با کنترل های کاربرپسند و عملکرد روان افزایش دهید. دستگاه فرز صنعتی با کیفیت بالا و قیمت مناسب برای فروش. Khám phá Máy Phay Vạn Năng VHM32, giải pháp gia công kim loại chính xác cao tối ưu. Máy phay đầu gối đa năng này hoạt động xuất sắc cả như máy phay ngang và máy phay đứng, kết cấu gang đúc chắc chắn cho độ cứng vững vượt trội và giảm rung động. Động cơ trục chính mạnh mẽ mang lại mô-men xoắn ổn định cho các thao tác cắt kim loại hiệu quả: phay mặt, phay rãnh, khoan, gia công bánh răng trên thép, nhôm & hợp kim. Thành phần chính: bàn làm việc mài chính xác, ụ gối điều chỉnh được, thân máy bền, thanh trượt đa dụng. Ứng dụng rộng rãi trong chế tạo khuôn mẫu, sửa chữa, tạo mẫu và phân xưởng cơ khí, VHM32 đảm bảo độ chính xác, khả năng lặp lại và độ tin cậy lâu dài vượt trội. Máy phay công nghiệp chất lượng cao cho gia công kim loại, vận hành êm ái, điều khiển dễ dàng. Máy phay vạn năng đáng tin cậy cho xưởng máy. ค้นพบเครื่องกัดอเนกประสงค์ VHM32 โซลูชันการตัดเฉือนโลหะความละเอียดสูงขั้นสุด เครื่องกัดแบบหัวเข่า (เครื่องกัดแนวตั้ง และ เครื่องกัดแนวนอน) ทรงประสิทธิภาพนี้มีโครงสร้างเหล็กหล่อหนา แข็งแรง เพิ่มความมั่นคงและลดการสั่นสะเทือน มอเตอร์สปินเดิลทรงพลังให้แรงบิดสม่ำเสมอสำหรับงานตัดโลหะ: กัดหน้าปาด, ร่อง, เจาะ, เฟือง เหล็ก อลูมิเนียม & โลหะผสม องค์ประกอบหลัก: โต๊ะงานความแม่นยำสูง, หัวเข่าปรับได้, เสาเครื่องทนทาน, คานยึดอเนกประสงค์ ใช้งานแพร่หลายในโรงงานเครื่องมือ, ซ่อมบำรุง, สร้างต้นแบบ และ โรงกลึง VHM32 ให้ความแม่นยำ, ความสม่ำเสมอ และ ความน่าเชื่อถือระยะยาว เครื่องมิลลิ่งอุตสาหกรรมคุณภาพสูงสำหรับงานโลหะ การทำงานลื่นไหล ควบคุมง่าย เครื่องกัดโรงงานราคาดี พร้อมส่ง. Temui Mesin Pengisar Universal VHM32, penyelesaian terbaik untuk kerja logam ketepatan tinggi. Mesin pengisar lutut serba guna ini berfungsi cemerlang sebagai mesin pengisar mengufuk dan mesin pengisar menegak, dengan binaan besi tuang teguh untuk ketegaran unggul dan redaman getaran. Motor spindle berkuasa memberikan tork konsisten untuk operasi pemotongan logam cekap: menggerudi, mengilir, melubang, memotong gear pada keluli, aluminium & aloi. Komponen utama: meja kerja ketepatan tinggi, lutut boleh laras, tiang tahan lasak, overarm serbaguna. Diguna meluas dalam pembuatan acuan, penyelenggaraan, prototaip dan bengkel kejuruteraan, VHM32 menawarkan ketepatan luar biasa, kebolehulangan dan kebolehpercayaan jangka panjang. Mesin pengilangan industri berkualiti tinggi untuk kerja logam, operasi lancar dan kawalan mudah. Mesin pengisar universal terbaik untuk keperluan bengkel anda. Tuklasin ang Universal Milling Machine na VHM32, ang pangunahing solusyon para sa de-kalidad na metal machining. Ang bersatil na knee mill na ito ay mahusay bilang horizontal mill at vertical mill, na may matibay na konstruksyon ng cast iron para sa superior na rigidity at vibration damping. Ang malakas nitong spindle motor ay nagbibigay ng matatag na torque para sa episyenteng operasyon gaya ng facing, slotting, drilling, at gear cutting sa bakal, aluminyo, at mga haluang metal. Pangunahing bahagi: precision-ground worktable, adjustable knee, matibay na column, at bersatil na overarm support. Malawak na ginagamit sa toolrooms, job shops, prototyping, at maintenance facilities, ang VHM32 ay nag-aalok ng pambihirang accuracy, repeatability, at long-term reliability. Makinis na operasyon at madaling kontrol. Mataas na kalidad na industrial milling machine para sa metal machining. VHM32 Evrensel Freze Tezgahını keşfedin, yüksek hassasiyetli metal işleme için nihai çözümünüz. Bu çok yönlü konsollu freze makinesi, üstün sertlik ve titreşim sönümleme için sağlam dökme demir yapısıyla hem yatay freze hem de dikey freze olarak mükemmel performans sunar. Güçlü spindle motoru, çelik, alüminyum ve alaşımlar üzerinde yüzey frezeleme, oluk açma, delme ve dişli açma gibi verimli metal kesme işlemleri için tutarlı tork sağlar. Temel bileşenler: hassas taşlanmış iş tablası, ayarlanabilir konsol, dayanıklı gövde, çok amaçlı üst kiriş. Kalıphane, bakım atölyesi, prototipleme ve imalat atölyelerinde yaygın olarak kullanılan VHM32, olağanüstü doğruluk, tekrarlanabilirlik ve uzun vadeli güvenilirlik sunar. Kullanıcı dostu kontroller ve pürüzsüz çalışma ile verimliliğinizi artırın. Metal işleme için yüksek kaliteli endüstriyel freze makinesi. Güvenilir üniversal freze tezgahı. اكتشف آلة التفريز العالمية VHM32، الحل الأمثل لتصنيع المعادن بدقة عالية. تعمل هذه الآلة متعددة الاستخدامات (مخرطة أفقية ومخرطة عمودية) بكفاءة مع هيكل حديد زهر قوي لصلابة فائقة وتخميد الاهتزازات. يقدم محرك المغزل القوي عزم دوران ثابت لعمليات قطع المعادن بكفاءة: التفريز السطحي، التفريز الجانبي، الحفر، قطع التروس على الفولاذ والألمنيوم والسبائك. المكونات الرئيسية: طاولة عمل دقيقة، ركبة قابلة للتعديل، عمود متين، ذراع علوي متعدد الأغراض. تستخدم على نطاق واسع في ورش الأدوات، ورش الصيانة، النماذج الأولية والمصانع الصغيرة، تقدم VHM32 دقة استثنائية، تكرارية وموثوقية طويلة الأمد. زد إنتاجيتك مع ضوابط سهلة الاستخدام وتشغيل سلس. آلة تفريز صناعية عالية الجودة لتصنيع المعادن بسعر ممتاز. ماكينة فرايز عامة موثوقة لورشة العمل.
Equipments
Optionals
| Item 01 | Descriptions | |
| 01.01 | Draw bar | |
| 01.02 | Lifting crank | |
| 01.03 | Horizontal arbor assembly; | |
| 01.04 | Working lamp | |
| 01.05 | Coolant system | |
| 01.06 | Central lubrication | |
| 01.07 | Double-ended wrench | |
| 01.08 | Inner hexagon spanner | |
| 01.09 | Operator manual |
| Item 02 | Descriptions | |
| 02.01 | 3-aixs Digital Read Out | |
| 02.02 | Spindle cover | |
| 02.03 | Worktable cover | |
| 02.04 | Hang up panel(Aluminum) | |
| 02.05 | Dividing head | |
| 02.06 | Rotary table | |
| 02.07 | Machine vise 160mm | |
| 02.08 | Milling chuck (ISO40) | |
| 02.09 | Clamping kits | |
| 02.10 | Variable milling head (5HP) | |
| 02.11 | Work table rotary±45° | |
| 02.12 | Pneumatic tool clamping |
