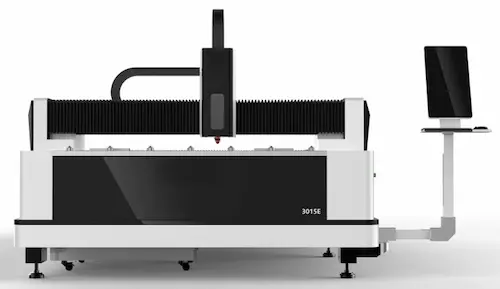

FL3015E Fiber Laser Cutting Machine
- FL3015E Fiber Laser Cutting MachineDownload
| Model | Unit | FL3015E |
|---|---|---|
| Laser power | W | 500W, 700W, 750W, 1000W, 1500W |
| Working area | mm | 3000x1500 |
| Repeated positioning accuracy | mm | ±0.02 |
| Max. running speed | m/min | 60 |
| Specified voltage and frequency | 380V/50Hz/60Hz | |
| Dimension | mm | 4600x2450x1700 |
| Weight | kg | 1800 |
Main configuration of FL3015E Fiber Laser Cutting Machine
| Model | FL3015E Fiber Laser Cutting Machine |
|---|---|
| Fiber laser | RAYCUS 500W-1500W |
| Cutting Head | Au3lech |
| Servo motor | Delta: X:750W;Y:750W,Z:400W |
| Pneumatics make | Air TAC |
| Solenoid Valve make | Air TAC |
| Electricals make | Schneider |
| Rack and Pinion | APEX double racks |
| Gear box reducer make | SAMPO |
| LM guide | HINWIN |
| Control system | Au3lech |
| Chiller | Tongfei |
Application material of FL3015E Fiber Laser Cutting Machine
FL3015E fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, and environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries. Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
| Model | FL3015E Fiber Laser Cutting Machine |
|---|---|
| Fiber laser | RAYCUS 500W-1500W |
| Cutting Head | Au3lech |
| Servo motor | Delta: X:750W;Y:750W,Z:400W |
| Pneumatics make | Air TAC |
| Solenoid Valve make | Air TAC |
| Electricals make | Schneider |
| Rack and Pinion | APEX double racks |
| Gear box reducer make | SAMPO |
| LM guide | HINWIN |
| Control system | Au3lech |
| Chiller | Tongfei |
| Model | Unit | FL3015E |
|---|---|---|
| Laser power | W | 500W, 700W, 750W, 1000W, 1500W |
| Working area | mm | 3000x1500 |
| Repeated positioning accuracy | mm | ±0.02 |
| Max. running speed | m/min | 60 |
| Specified voltage and frequency | 380V/50Hz/60Hz | |
| Dimension | mm | 4600x2450x1700 |
| Weight | kg | 1800 |
FL3015E fiber laser cutting machine is good at processing on common metal items in daily life such as advertising metal letter, kitchenware, and environmental protection equipment. Laser cutting machines are widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries. Stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, etc.
Knee Type Milling Machine: Precision Versatility for Industrial Manufacturing
What is a Knee Type Milling Machine?
A knee type milling machine is a fundamental machine tool distinguished by its vertically adjustable worktable mounted on a "knee" casting. This knee moves precisely up and down a fixed column via a screw mechanism, enabling accurate Z-axis positioning crucial for diverse milling operations.
Working Principle
The core principle involves a rotating milling cutter removing material from a workpiece secured to the table. The adjustable knee mechanism allows controlled vertical movement (Z-axis), while the table provides longitudinal (X-axis) and transverse (Y-axis) travel. This 3-axis control facilitates complex machining of flat, angular, and contoured surfaces.
Key Applications
- Tool & Die Making: Precision molds, jigs, fixtures
- Prototyping: Rapid part development
- Maintenance Shops: Equipment repair & part fabrication
- General Machining: Slotting, drilling, facing, keyway cutting
- Aerospace & Automotive: Component manufacturing
Distinctive Features & Advantages
- Vertical Adjustability: Knee movement enables quick workpiece height changes
- Rigid Construction: Robust cast iron frame ensures stability
- Manual & CNC Options: Traditional control or computer numerical precision
- Turret Design (Common): Swiveling milling head for multi-angle machining
- Wide Workpiece Compatibility: Handles various sizes and shapes
Primary Classifications
- Vertical Knee Mill: Spindle axis perpendicular to table (most common)
- Horizontal Knee Mill: Spindle axis parallel to table (for heavy stock removal)
- Universal Knee Mill: Table swivels for complex angular cuts
- Turret Mill: Head rotates on turret for flexible positioning
Main Components
- Base & Column: Primary support structure
- Knee: Vertically moving saddle supporting the table
- Saddle & Table: Hold and position the workpiece (X/Y axes)
- Milling Head: Houses spindle, motor, and quill (Z-axis)
- Arbor/Spindle: Rotating shaft holding cutting tools
- Controls: Manual handwheels or CNC interface
Evolution & Industry Significance
Since their development in the late 19th century, knee-and-column mills revolutionized machining. The iconic Bridgeport design (1938) popularized the turret style. While CNC machining centers dominate high-volume production, knee mills remain indispensable for flexibility, ease of use, and cost-effectiveness in job shops, schools, and repair facilities worldwide.
Fortune Pacific: Your Knee Mill Solution
At Fortune Pacific, we engineer durable, high-precision knee type milling machines for demanding applications. Explore our range of vertical mills, horizontal mills, and CNC-ready models designed to enhance your workshop's capabilities. Discover the ideal machine for your metalworking, prototyping, or toolmaking needs.
