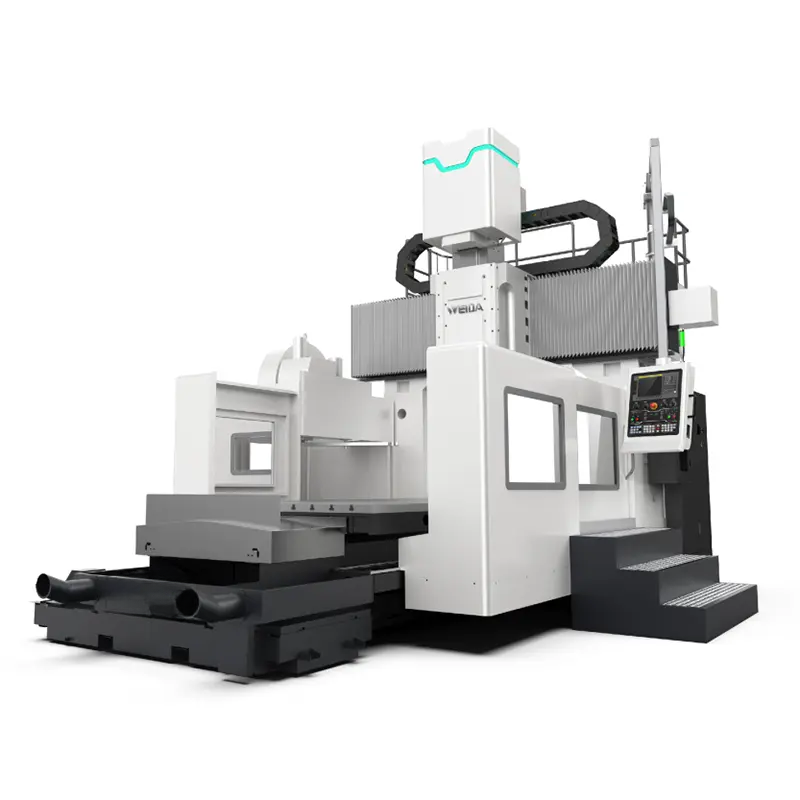

Gantry machining center GMC1830/ GMC1520/ GMC1530 · GMC1830GMC1520GMC1530TW | CNC machine tools | Fortune Pacific
GMC1830GMC1520GMC1530TW
GMC1830GMC1520GMC1530TW (CNC machine tools) — live partner page.
Model GMC1830GMC1520GMC1530TW SKU GMC1830GMC1520GMC1530TW
Specifications
Swing, length, spindle and live-tool numbers for this turning center.
X-Axis Travelmm 2200 3200
Y-Axis Travelmm 2000 2600
Z-Axis Travelmm 800 1000
Machine Weightkg 23000 25000 32000
Spindle TorqueN.m 730/900 730/900 730/900
Worktable Sizemm 2000X1500 3000X1500 3000X1800
Main Motor PowerkW 15/18.5 15/18.5 15/18.5
Max.Spindle Speedrpm 3000
Ram Cross Sectionmm 400X400 410×410
Overall Dimensionsmm 7400X4900X4850 8400X4900X4850 8400X5800X5650
Total Power CapacityKVA 30
Max.Load Of Worktablekg 6000 8000
Rapid Feed Speed(X/Y/Z)mm/min 12000/15000/8000 12000/15000/8000 12000/10000/8000
Cutting Feed Speed(X/Y/Z)mm/min 1-10000/1-10000/1-6000 1-10000/1-10000/1-6000 1-10000/1-8000/1-6000
T-Slot (Width-No.-Distance)mm 28-9-160 28-9-160 28-11-160
Distance Between Two Columnsmm 1900 2200
Distance From Spindle Nose To Table Surfacemm 165-965 165-965 250-1250
Engineering that holds tolerance
The design decisions behind the numbers.
Verified specifications
Live HTML refetch (W73).
- 2200: 2000
- 3200: 2600
- X-axis travel: Y-axis travel
- mm: mm
Warranty & after-sales
- 2-year warranty for manufacturing defects; first technical reply within 24 business hours.
