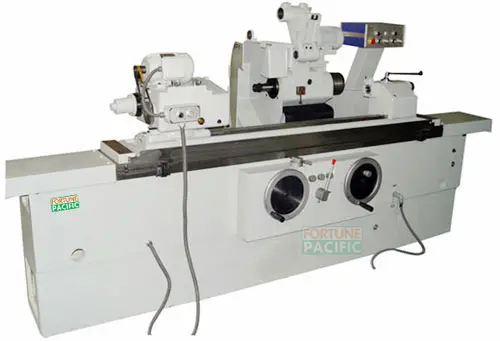

CG320C UCG320C Cylindrical Grinding Machine
Fortune Pacific CG320C/UCG320C Cylindrical Grinding Machine: 320mm swing, 1000mm centers. Precision OD/ID grinding, rigid cast-iron bed, auto infeed. For automotive/aerospace parts. High-accuracy surface finish.
- CG320C UCG320C Cylindrical Grinding MachineDownload
Technical parameters of CG320C UCG320C Cylindrical Grinding Machine
Working accuracy of CG320C UCG320C Cylindrical Grinding Machine
Features
1. CG320C Cylindrical Grinding Machine and UCG320C Universal Grinder is used for grinding internal and external surface of cylinder and taper and is suitable for processing of single and small batches of parts in machining work shop, tool work shops, and repairing shops.
2. Wheel head spindle uses proprietary technology, with the characteristics of high rotary precision, good rigidity, and high grinding quality. Being made of materials of nitrogen treated 30CrMOALA, the spindle is of hardness up to HV900 and good precision maintaining.
3. The work head main shaft has characteristics of high precision, good rigidity. And grinded surface roundness of internal & external cylindrical parts fixed on the chuck is high.
4. The wheel head feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
5. The hydraulic driving system uses screw pump which is of smooth running and low noise.
6. The operation system is of integrated operation by a single handle of an operation box and the electric controlling buttons are centralized so that the operations are easy and reliable.
7. The function of grinding with worktable shuttling (60 times/min) can be used to meet special order.
Standard accessories of CG320C Cylindrical Grinding Machine
1. Grinding wheel dresser;
2. Plane grinding wheel;
3. Balancing arbor;
4. Carbide tipped centers;
5. Single-head spanner;
6. Coolant tank;
Standard accessories of UCG320C Universal Cylindrical Grinder
1. Grinding wheel dresser;
2. Plane grinding wheel;
3. Balancing arbor;
4. Carbide tipped centers;
5. Single-head spanner;
6. Coolant tank;
7. Three-jaw chuck;
8. Wedges;
9. Internal grinding attachment;
10. Internal wheel;
Optional accessories of CG320C Cylindrical Grinding Machine
1. Close center rest;
2. Open center rest;
3. Four-jaw chunk;
4. Grinding wheel balancing stand;
5. Diamond pen;
6. Grinding wheel: Ø600mm;
7. Live work head;
Optional accessories of UCG320C Universal Cylindrical Grinding Machine
1. Close center rest;
2. Open center rest;
3. Four-jaw chunk;
4. Grinding wheel balancing stand;
5. Diamond pen;
6. Grinding wheel: Ø600mm;
Cylindrical grinder/Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
A cylindrical grinder
Cylindrical grinder/Cylindrical Grinding Machine is defined as having four essential actions:
The work (object) must be constantly rotating;
The grinding wheel must be constantly rotating;
The grinding wheel is fed towards and away from the work;
Either the work or the grinding wheel is traversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.
History of cylindrical grinder
The origins of the cylindrical grinder, as with all other modern machine tools, stem from the experimentation and invention of John Wilkinson and later Henry Maudslay who built the first horizontal boring machine and the first engine lathe, respectively. The cylindrical grinder owes much of its development from the onset of the Industrial Revolution, particularly to the advent of reliable, inexpensive steel production and later the improvement of the grinding wheel. The basis for the modern day cylindrical grinder was first built in the 1830s by two men working independently, Jonathan Bridges and James Wheaton . It is unclear as to which man had first produced the machine but both are closely tied to the first historical appearance of the modern day tool. It took another 40 years before further improvement and refinement of the tool occurred.
Types of cylindrical grinder/Cylindrical Grinding Machine
There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Outside diameter grinding
OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.
Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the object. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.
Centerless cylindrical grinder
A schematic of the centerless grinding process.
Centerless grinding is a form of grinding where there is no collet or pair of centers holding the object in place. Instead, there is a regulating wheel positioned on the opposite side of the object to the grinding wheel. A work rest keeps the object at the appropriate height but has no bearing on its rotary speed. The workblade is angled slightly towards the regulating wheel, with the workpiece centerline above the centerlines of the regulating and grinding wheel; this means that high spots do not tend to generate corresponding opposite low spots, and hence the roundness of parts can be improved. Centerless grinding is much easier to combine with automatic loading procedures than centered grinding; throughfeed grinding, where the regulating wheel is held at a slight angle to the part so that there is a force feeding the part through the grinder, is particularly efficient.
Control methods
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.
Applications
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
| Model | CG320 | UCG320 | |
|---|---|---|---|
| Type | C | C | |
| Center height | 165 mm (6″) | 165 mm (6″) | |
| Max. Swiveling diameter | Φ320 mm (13″) | Φ320 mm (13″) | |
| Max. Grinding length | 1000/1500 mm (39/59″) | 1000/1500 mm (39/59″) | |
| External grinding range | Φ10~Φ320 mm (0.4″-13″) | Φ10~Φ320 mm (0.4″-13″) | |
| Internal grinding range | Φ16~Φ125 mm (0.6″-5″) | ||
| Max. workpiece weight between centers | 100-150 kg | 100-150 kg | |
| Grinding wheel | (OD × W × ID) | Φ500x(50-75)x203 mm (20x(2-3)x8”) |
Φ500x(50-75)x203 mm (20x(2-3)x8”) |
| Max. Linear velocity | 35 m/s | 35 m/s | |
| Swiveling angle of table | Clockwise | 3° | 3° |
| Counter-clockwise | 6° | 6° | |
| Taper hole of spindle | Workhead | MT-4 | MT-4 |
| Tailstock | MT-4 | MT-4 | |
| Total power | 6.36 kW | 6.36 kW | |
| Net weight | 3500/4000 kg | 3500/4000 kg | |
| Overall dimensions (L × W × H) | 3800/4780x2000x2000 mm | 3800/4780x2000x2000 mm | |
Working accuracy of CG320C UCG320C Cylindrical Grinding Machine
| NO | Inspection character | Inspection Items | CG320C | UCG320C |
|---|---|---|---|---|
| P1 | Grinding accuracy of test piece between centers | Roundness mm |
0.0025 | 0.0025 |
| Consistency of Dia. in longitudinal section mm |
0.008 | 0.008 | ||
| Roughness μm |
Ra≤0.32 | Ra≤0.32 | ||
| P2 | Grinding accuracy of short test piece on chuck | Roundness mm | 0.0025 | |
| Roughness μm |
Ra≤0.32 | |||
| P3 | Grinding accuracy of test internal grinding on chuck | Roundness mm |
0.0025 | |
| Consistency of Dia. in longitudinal section mm |
0.010 | |||
| Roughness μm |
Ra≤0.63 |
Features
1. CG320C Cylindrical Grinding Machine and UCG320C Universal Grinder is used for grinding internal and external surface of cylinder and taper and is suitable for processing of single and small batches of parts in machining work shop, tool work shops, and repairing shops.
2. Wheel head spindle uses proprietary technology, with the characteristics of high rotary precision, good rigidity, and high grinding quality. Being made of materials of nitrogen treated 30CrMOALA, the spindle is of hardness up to HV900 and good precision maintaining.
3. The work head main shaft has characteristics of high precision, good rigidity. And grinded surface roundness of internal & external cylindrical parts fixed on the chuck is high.
4. The wheel head feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
5. The hydraulic driving system uses screw pump which is of smooth running and low noise.
6. The operation system is of integrated operation by a single handle of an operation box and the electric controlling buttons are centralized so that the operations are easy and reliable.
7. The function of grinding with worktable shuttling (60 times/min) can be used to meet special order.
Standard accessories of CG320C Cylindrical Grinding Machine
1. Grinding wheel dresser;
2. Plane grinding wheel;
3. Balancing arbor;
4. Carbide tipped centers;
5. Single-head spanner;
6. Coolant tank;
Standard accessories of UCG320C Universal Cylindrical Grinder
1. Grinding wheel dresser;
2. Plane grinding wheel;
3. Balancing arbor;
4. Carbide tipped centers;
5. Single-head spanner;
6. Coolant tank;
7. Three-jaw chuck;
8. Wedges;
9. Internal grinding attachment;
10. Internal wheel;
Optional accessories of CG320C Cylindrical Grinding Machine
1. Close center rest;
2. Open center rest;
3. Four-jaw chunk;
4. Grinding wheel balancing stand;
5. Diamond pen;
6. Grinding wheel: Ø600mm;
7. Live work head;
Optional accessories of UCG320C Universal Cylindrical Grinding Machine
1. Close center rest;
2. Open center rest;
3. Four-jaw chunk;
4. Grinding wheel balancing stand;
5. Diamond pen;
6. Grinding wheel: Ø600mm;
Cylindrical grinder/Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
A cylindrical grinder
Cylindrical grinder/Cylindrical Grinding Machine is defined as having four essential actions:
The work (object) must be constantly rotating;
The grinding wheel must be constantly rotating;
The grinding wheel is fed towards and away from the work;
Either the work or the grinding wheel is traversed with respect to the other.
While the majority of cylindrical grinders employ all four movements, there are grinders that only employ three of the four actions.
History of cylindrical grinder
The origins of the cylindrical grinder, as with all other modern machine tools, stem from the experimentation and invention of John Wilkinson and later Henry Maudslay who built the first horizontal boring machine and the first engine lathe, respectively. The cylindrical grinder owes much of its development from the onset of the Industrial Revolution, particularly to the advent of reliable, inexpensive steel production and later the improvement of the grinding wheel. The basis for the modern day cylindrical grinder was first built in the 1830s by two men working independently, Jonathan Bridges and James Wheaton . It is unclear as to which man had first produced the machine but both are closely tied to the first historical appearance of the modern day tool. It took another 40 years before further improvement and refinement of the tool occurred.
Types of cylindrical grinder/Cylindrical Grinding Machine
There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Outside diameter grinding
OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object. This effectively means the two surfaces will be moving opposite directions when contact is made which allows for a smoother operation and less chance of a jam up.
Inside diameter grinding
ID grinding is grinding occurring on the inside of an object. The grinding wheel is always smaller than the width of the object. The object is held in place by a collet, which also rotates the object in place. Just as with OD grinding, the grinding wheel and the object rotated in opposite directions giving reversed direction contact of the two surfaces where the grinding occurs.
Plunge grinding
A form of OD grinding, however the major difference is that the grinding wheel makes continuous contact with a single point of the object instead of traversing the object.
Creep feed grinding
Creep Feed is a form of grinding where a full depth of cut is removed in a single pass of the wheel. Successful operation of this technique can reduce manufacturing time by 50%, but often the grinding machine being used must be designed specifically for this purpose. This form occurs in both cylindrical and surface grinding.
Centerless cylindrical grinder
A schematic of the centerless grinding process.
Centerless grinding is a form of grinding where there is no collet or pair of centers holding the object in place. Instead, there is a regulating wheel positioned on the opposite side of the object to the grinding wheel. A work rest keeps the object at the appropriate height but has no bearing on its rotary speed. The workblade is angled slightly towards the regulating wheel, with the workpiece centerline above the centerlines of the regulating and grinding wheel; this means that high spots do not tend to generate corresponding opposite low spots, and hence the roundness of parts can be improved. Centerless grinding is much easier to combine with automatic loading procedures than centered grinding; throughfeed grinding, where the regulating wheel is held at a slight angle to the part so that there is a force feeding the part through the grinder, is particularly efficient.
Control methods
There are three basics ways in which an operator can interact with a cylindrical grinder. Either manual manipulation of the machine, Numerical Control with a punched card system or using Computer Numerical Control using a pre existing interface designed for that machine or by using a PC as an interface to communicate with the grinder. The first two options are rarely if ever used today. CNC operated cylindrical grinders are the most technologically advanced, efficient, reliable systems in the manufacturing industry.
Applications
The cylindrical grinder is responsible for a plethora of innovations and inventions in the progression of science and technology. Any situation in which extremely precise metalworking is required, the cylindrical grinder is able to provide a high level of precision.[citation needed] From the automotive industry to military applications, the benefits of the cylindrical grinder are numerous.
Features
1. CG320C Cylindrical Grinding Machine and UCG320C Universal Grinder is used for grinding internal and external surface of cylinder and taper and is suitable for processing of single and small batches of parts in machining work shop, tool work shops, and repairing shops.
2. Wheel head spindle uses proprietary technology, with the characteristics of high rotary precision, good rigidity, and high grinding quality. Being made of materials of nitrogen treated 30CrMOALA, the spindle is of hardness up to HV900 and good precision maintaining.
3. The work head main shaft has characteristics of high precision, good rigidity. And grinded surface roundness of internal & external cylindrical parts fixed on the chuck is high.
4. The wheel head feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
5. The hydraulic driving system uses screw pump which is of smooth running and low noise.
6. The operation system is of integrated operation by a single handle of an operation box and the electric controlling buttons are centralized so that the operations are easy and reliable.
7. The function of grinding with worktable shuttling (60 times/min) can be used to meet special order.
1. CG320C Cylindrical Grinding Machine and UCG320C Universal Grinder is used for grinding internal and external surface of cylinder and taper and is suitable for processing of single and small batches of parts in machining work shop, tool work shops, and repairing shops.
2. Wheel head spindle uses proprietary technology, with the characteristics of high rotary precision, good rigidity, and high grinding quality. Being made of materials of nitrogen treated 30CrMOALA, the spindle is of hardness up to HV900 and good precision maintaining.
3. The work head main shaft has characteristics of high precision, good rigidity. And grinded surface roundness of internal & external cylindrical parts fixed on the chuck is high.
4. The wheel head feeding guideway uses antifriction & plastic-filming guideway, thus promoting the smoothness and vibration resistance of low-speed operations.
5. The hydraulic driving system uses screw pump which is of smooth running and low noise.
6. The operation system is of integrated operation by a single handle of an operation box and the electric controlling buttons are centralized so that the operations are easy and reliable.
7. The function of grinding with worktable shuttling (60 times/min) can be used to meet special order.
Technical parameters of CG320C UCG320C Cylindrical Grinding Machine
| Model | CG320 | UCG320 | |
|---|---|---|---|
| Type | C | C | |
| Center height | 165 mm (6″) | 165 mm (6″) | |
| Max. Swiveling diameter | Φ320 mm (13″) | Φ320 mm (13″) | |
| Max. Grinding length | 1000/1500 mm (39/59″) | 1000/1500 mm (39/59″) | |
| External grinding range | Φ10~Φ320 mm (0.4″-13″) | Φ10~Φ320 mm (0.4″-13″) | |
| Internal grinding range | Φ16~Φ125 mm (0.6″-5″) | ||
| Max. workpiece weight between centers | 100-150 kg | 100-150 kg | |
| Grinding wheel | (OD × W × ID) | Φ500x(50-75)x203 mm (20x(2-3)x8”) |
Φ500x(50-75)x203 mm (20x(2-3)x8”) |
| Max. Linear velocity | 35 m/s | 35 m/s | |
| Swiveling angle of table | Clockwise | 3° | 3° |
| Counter-clockwise | 6° | 6° | |
| Taper hole of spindle | Workhead | MT-4 | MT-4 |
| Tailstock | MT-4 | MT-4 | |
| Total power | 6.36 kW | 6.36 kW | |
| Net weight | 3500/4000 kg | 3500/4000 kg | |
| Overall dimensions (L × W × H) | 3800/4780x2000x2000 mm | 3800/4780x2000x2000 mm | |
