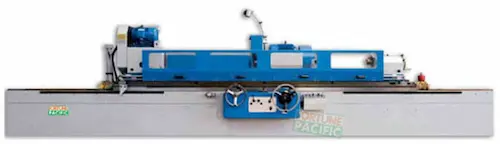

CG200 Cylindrical Grinding Machine
2.The working table longitudinal travel is driven by hydraulic cylinder.
| Model | Unit | CG200 |
|---|---|---|
| Distance between centers | mm | 500; 750 (20”; 30”) |
| Center height | mm | 135 (5.3”) |
| Dia. Ground(O.D) | mm | Φ5~200 (2-7.9”) |
| Max length ground(O.D) | mm | 500; 750 (20”; 30”) |
| Max weight of workpiece | kg | 100 |
| Workhead center taper | MT-4 | |
| Workhead spindle speed | r/min | 50HZ: 25~380 stepless |
| Wheel spindle speed | r/min | 1335 |
| Wheelhead rapid travel | mm | 50 (2”) |
| Wheelhead max travel | mm | 205 (8”) |
| Wheelhead hand feed per. rev | mm | Rough:2; Fine: 0.5 |
| Wheelhead hand feed per. gra | mm | Rough:0.01; Fine: 0.0025 |
| Wheel size( OD x W x ID) | mm | Φ500x50x203 (20x2x8”) |
| Peripheral velocity | m/s | 35 |
| Table hand feed per. rev | mm | 6 |
| Max swiveling angle of table: Clockwise | ° | 3° |
| Max swiveling angle of table: Anticlockwise | ° | 9°(500); 8°(750) |
| Longitudinal speed range of table | m/min | 0.1~4 |
| Tailstock center tape | MT-4 | |
| Tailstock quill travel | mm | 30 (1.2”) |
| Wheelhead motor power | kW | 5.5 |
| Workhead motor power | kW | 1.1 |
| Gross weight | kg | 4000(500); 4200(750) |
| Packing size(L x W x H) | mm | 2350x2030x2050(500); 2750x2030x2050(750) |
CG200 Cylindrical Grinding Machine is a type of grinding machine used to shape the outside of an object. The cylindrical grinder can work on a variety of shapes, however the object must have a central axis of rotation. This includes but is not limited to such shapes as a cylinder, an ellipse, a cam, or a crankshaft.
Features
Standard accessories
1. Flange;
2. Three-jaw chuck;
3. Balance arbor;
4. Dog pole and arm;
5. Table swiveling wrench;
6. Alloy center;
7. Coolant tank;
8. Wheel;
9. Wheel extractor;
10. Wedge;
Optional accessories
1. Steady rest;
2. Radial dresser;
3. End dresser;
4. Balance stand;
1. Flange;
2. Three-jaw chuck;
3. Balance arbor;
4. Dog pole and arm;
5. Table swiveling wrench;
6. Alloy center;
7. Coolant tank;
8. Wheel;
9. Wheel extractor;
10. Wedge;
Optional accessories
1. Steady rest;
2. Radial dresser;
3. End dresser;
4. Balance stand;
| Model | Unit | CG200 |
|---|---|---|
| Distance between centers | mm | 500; 750 (20”; 30”) |
| Center height | mm | 135 (5.3”) |
| Dia. Ground(O.D) | mm | Φ5~200 (2-7.9”) |
| Max length ground(O.D) | mm | 500; 750 (20”; 30”) |
| Max weight of workpiece | kg | 100 |
| Workhead center taper | MT-4 | |
| Workhead spindle speed | r/min | 50HZ: 25~380 stepless |
| Wheel spindle speed | r/min | 1335 |
| Wheelhead rapid travel | mm | 50 (2”) |
| Wheelhead max travel | mm | 205 (8”) |
| Wheelhead hand feed per. rev | mm | Rough:2; Fine: 0.5 |
| Wheelhead hand feed per. gra | mm | Rough:0.01; Fine: 0.0025 |
| Wheel size( OD x W x ID) | mm | Φ500x50x203 (20x2x8”) |
| Peripheral velocity | m/s | 35 |
| Table hand feed per. rev | mm | 6 |
| Max swiveling angle of table: Clockwise | ° | 3° |
| Max swiveling angle of table: Anticlockwise | ° | 9°(500); 8°(750) |
| Longitudinal speed range of table | m/min | 0.1~4 |
| Tailstock center tape | MT-4 | |
| Tailstock quill travel | mm | 30 (1.2”) |
| Wheelhead motor power | kW | 5.5 |
| Workhead motor power | kW | 1.1 |
| Gross weight | kg | 4000(500); 4200(750) |
| Packing size(L x W x H) | mm | 2350x2030x2050(500); 2750x2030x2050(750) |
