5VMC700 5-axis Simultaneous Vertical Machining Center
- 5VMC700 5-axis Simultaneous Vertical Machining CenterDownload
Machine specifications of 5VMC700 5-axis Simultaneous Vertical Machining Center
| Item | 5VMC700 |
| CNC system | Siemens 840D |
| Capacity | |
| X axis travel | 700mm |
| Y axis travel | 520mm |
| Z axis travel | 475mm |
| Spindle nose to table surface | 150-625mm |
| Table | |
| Table size | 720x540mm |
| T slot (width×distance×quantity) | 5mmx14mmx100 |
| Max table load | 300kg |
| Table tilting angle | ±120˚ |
| Spindle | |
| Spindle speed | 40-12000rpm |
| Spindle motor power | 7.5kW |
| Spindle taper | BBT 40 |
| Spindle input torque (Max） | 90Nm |
| Automatic tool magazine | |
| Tool magazine capacity | 24 |
| Max tool dia. (Full/Empty) | 80/150mm |
| Max tool length | 300mm |
| Max tool weight | 8kg |
| Exchanging time (tool-tool/tip-tip) | 1.75/5s |
| Feeding system | |
| Cutting feed speed | 1-10000mm/min |
| Rapid feed of X, Y, Z axis | 42m/min |
| Rapid feed of B/C axis | 60/100r/min |
| Accuracy | |
| Positioning accuracy of X, Y, Z axis | 0.008mm |
| Positioning accuracy of B, C axis | ±5 Angular second |
| Repear positioning accuracy of X, Y, Z axis | 0.005mm |
| Repear positioning accuracy of B, C axis | 4 Angular second |
| Controller | |
| CNC system | Siemens 840D |
| Axis controlled | 5 axes |
| Axis lingkage | 3linear axis, 2 rotary axis |
| Others | |
| Air request | 0.5-0.7Mpa |
| Machine size (LxWxH) | 3970x3250x2870mm |
| Machine weight | About 7500kg |
5VMC700 5-axis Simultaneous Vertical Machining Center Equipment
| Item 01 | Descriptions |
| 01.01 | Taiwan drive type electric spindle unit |

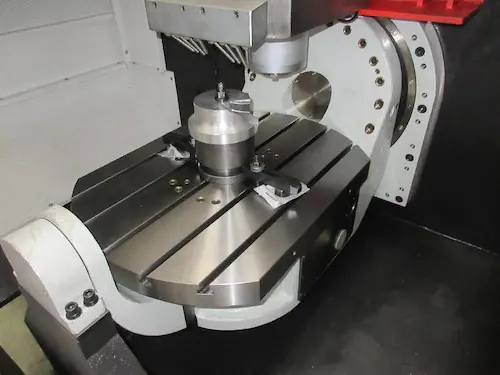

| 01.02 | Taiwan direct drive motor double-axis single-arm rotary table |
| 01.03 | Spindle center blowing |
| 01.04 | Spindle seal front |
| 01.05 | Japanese bearings |
| 01.06 | Japanese or Korea coupling |
| 01.07 | Taiwan or Germany high accuracy roller linear guideway |
| 01.08 | Taiwan high accuracy ballscrew |
| 01.09 | Taiwan Stair coolant pump |
| 01.10 | Automatic lubrication |
| 01.11 | Full cover metalsheet |
| 01.12 | Rigid tapping |
| 01.13 | Water coolant cutting |
| 01.14 | Standard controller: SIEMENS 840D CNC |
| 01.15 | MPG |
| 01.16 | LED working light |
| 01.17 | DNC online processing |
| 01.18 | Sizing block,operation manual of machine |
| 01.19 | Schneider electric components |
| 01.20 | Air gun and water gun for cleaning |
| 01.21 | Chain type chip conveyor |
| 01.22 | Taiwan Point oil cooler |
| 01.23 | X, Y, Z 3 axis Fagor full-closed linear scale |
Brief introduction
1. Truss frame layout,integrated structure of column and bed.
2. There are reforcement and angular support plate inside of machine bed, column, slide, table and spindle box.
3. X, Y, Z axis are Taiwan/Germany roller linear gudieway.
4. The three-axis motor and the lead screw are directly connected by a gapless elastic coupling.
5. Electric spindle unit structure.
1. Truss frame layout,integrated structure of column and bed.
2. There are reforcement and angular support plate inside of machine bed, column, slide, table and spindle box.
3. X, Y, Z axis are Taiwan/Germany roller linear gudieway.
4. The three-axis motor and the lead screw are directly connected by a gapless elastic coupling.
5. Electric spindle unit structure.
Machine specifications of 5VMC700 5-axis Simultaneous Vertical Machining Center
| Item | 5VMC700 |
| CNC system | Siemens 840D |
| Capacity | |
| X axis travel | 700mm |
| Y axis travel | 520mm |
| Z axis travel | 475mm |
| Spindle nose to table surface | 150-625mm |
| Table | |
| Table size | 720x540mm |
| T slot (width×distance×quantity) | 5mmx14mmx100 |
| Max table load | 300kg |
| Table tilting angle | ±120˚ |
| Spindle | |
| Spindle speed | 40-12000rpm |
| Spindle motor power | 7.5kW |
| Spindle taper | BBT 40 |
| Spindle input torque (Max） | 90Nm |
| Automatic tool magazine | |
| Tool magazine capacity | 24 |
| Max tool dia. (Full/Empty) | 80/150mm |
| Max tool length | 300mm |
| Max tool weight | 8kg |
| Exchanging time (tool-tool/tip-tip) | 1.75/5s |
| Feeding system | |
| Cutting feed speed | 1-10000mm/min |
| Rapid feed of X, Y, Z axis | 42m/min |
| Rapid feed of B/C axis | 60/100r/min |
| Accuracy | |
| Positioning accuracy of X, Y, Z axis | 0.008mm |
| Positioning accuracy of B, C axis | ±5 Angular second |
| Repear positioning accuracy of X, Y, Z axis | 0.005mm |
| Repear positioning accuracy of B, C axis | 4 Angular second |
| Controller | |
| CNC system | Siemens 840D |
| Axis controlled | 5 axes |
| Axis lingkage | 3linear axis, 2 rotary axis |
| Others | |
| Air request | 0.5-0.7Mpa |
| Machine size (LxWxH) | 3970x3250x2870mm |
| Machine weight | About 7500kg |
5VMC700 5-axis Simultaneous Vertical Machining Center Equipment
| Item 01 | Descriptions |
| 01.01 | Taiwan drive type electric spindle unit |
| 01.02 | Taiwan direct drive motor double-axis single-arm rotary table |
| 01.03 | Spindle center blowing |
| 01.04 | Spindle seal front |
| 01.05 | Japanese bearings |
| 01.06 | Japanese or Korea coupling |
| 01.07 | Taiwan or Germany high accuracy roller linear guideway |
| 01.08 | Taiwan high accuracy ballscrew |
| 01.09 | Taiwan Stair coolant pump |
| 01.10 | Automatic lubrication |
| 01.11 | Full cover metalsheet |
| 01.12 | Rigid tapping |
| 01.13 | Water coolant cutting |
| 01.14 | Standard controller: SIEMENS 840D CNC |
| 01.15 | MPG |
| 01.16 | LED working light |
| 01.17 | DNC online processing |
| 01.18 | Sizing block,operation manual of machine |
| 01.19 | Schneider electric components |
| 01.20 | Air gun and water gun for cleaning |
| 01.21 | Chain type chip conveyor |
| 01.22 | Taiwan Point oil cooler |
| 01.23 | X, Y, Z 3 axis Fagor full-closed linear scale |
