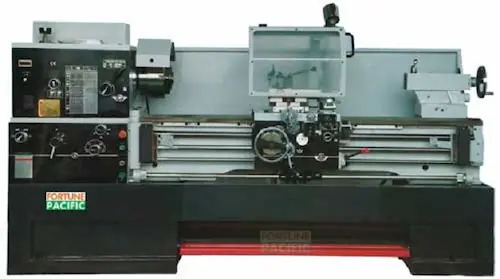

VST400 Infinitely Variable Speed Metal Turning Lathe

Infinitely Variable Speed Metal Turning Centre Lathe Machine is ideal for machining internal, external and cylindrical surfaces as well as other rotary surfaces;

VST400 Infinitely Variable Speed Metal Turning Centre Lathe MachineDownload

INQUIRY

PDF Format

Description

Standards

Parameters

Optional

Technical parameters of VST400 Infinitely Variable Speed Metal Turning Centre Lathe Machine

Model	Unit	VST400
Swing over bed	mm	400
Swing over carriage	mm	250
Swing over gap	mm	660
Effective gap length	mm	200
Center height	mm	200
Center distance	mm	1000 / 1500
Bed width	mm	336
Spindle nose		D8
Spindle bore	mm	Φ80
Spindle taper		MT-7
Spindle speed	rpm	40-400; 200-2000
Spindle speed step	mm	2 (infinitely variable speed)
Diameter of tailstock sleeve	mm	Φ75
Taper of tailstock sleeve	mm	MT-4
Travel of tailstock sleeve	mm	130
Longitudinal feed	mm/r	0.04~2.46
Cross feed	mm/r	0.02~1.23
Metric threads	mm	0.5~20; 24 kinds
Imperial threads	TPI	72~1-5/8; 61 kinds
D.P. range / No.	DP	96~3-1/4 ; 45 kinds
Module range / No.	MP	0.25~10 ;20 kinds
Compound rest travel	mm	100
Cross slide travel	mm	280
Tool shank size	mm	25x25
Main motor power	kW	5.5
Net weight	kg	2300 / 2600

Equipments
1. 3-Jaw Chuck;
2. 4-Jaw Chuck;
3. Steady Rest;
4. Follow Rest;
5. Face Plate;
6. Coolant System;
7. Work Light;
8. Tool box;

Optionals
1. Chuck cover;
2. Leadscrew cover;
3. Toolpost cover;
4. Quick change tool post;
5. 2-Axis or 3-Axis DRO;
6. Taper turning attachment;

Applications
Infinitely Variable Speed Metal Turning Centre Lathe Machine is ideal for machining internal, external and cylindrical surfaces as well as other rotary surfaces; VST400 Infinitely Variable Speed Metal Turning Centre Lathe Machine tool is suitable for cutting various metric, whitworth threads, conventional turning, facing, drilling, reaming and broaching are also available.

Equipments
1. 3-Jaw Chuck;
2. 4-Jaw Chuck;
3. Steady Rest;
4. Follow Rest;
5. Face Plate;
6. Coolant System;
7. Work Light;
8. Tool box;

Technical parameters of VST400 Infinitely Variable Speed Metal Turning Centre Lathe Machine

Model	Unit	VST400
Swing over bed	mm	400
Swing over carriage	mm	250
Swing over gap	mm	660
Effective gap length	mm	200
Center height	mm	200
Center distance	mm	1000 / 1500
Bed width	mm	336
Spindle nose		D8
Spindle bore	mm	Φ80
Spindle taper		MT-7
Spindle speed	rpm	40-400; 200-2000
Spindle speed step	mm	2 (infinitely variable speed)
Diameter of tailstock sleeve	mm	Φ75
Taper of tailstock sleeve	mm	MT-4
Travel of tailstock sleeve	mm	130
Longitudinal feed	mm/r	0.04~2.46
Cross feed	mm/r	0.02~1.23
Metric threads	mm	0.5~20; 24 kinds
Imperial threads	TPI	72~1-5/8; 61 kinds
D.P. range / No.	DP	96~3-1/4 ; 45 kinds
Module range / No.	MP	0.25~10 ;20 kinds
Compound rest travel	mm	100
Cross slide travel	mm	280
Tool shank size	mm	25x25
Main motor power	kW	5.5
Net weight	kg	2300 / 2600

Optionals
1. Chuck cover;
2. Leadscrew cover;
3. Toolpost cover;
4. Quick change tool post;
5. 2-Axis or 3-Axis DRO;
6. Taper turning attachment;
