VKM32Q Vertical Knee type Elevator Milling Machine
VKM32QA VKM32QC Vertical Knee type Elevator Milling Machine former horizontal milling head can be moved along the column guide rail, and the table can be fed longitudinally;
VKM32QA VKM32QC Vertical Knee type Elevator Milling Machine
Download
INQUIRY
PDF Format
Description
Accessories
Optionals
Features
Machine specifications
Items
VKM32QA
VKM32QC
Working area
Worktable size (L×W)
1370x320mm
1370x320mm
T slot (Width x No. x pitch)
14mmx3x80mm
14mmx3x80mm
Max workpiece weight
300kg
300kg
Max swivel angle of vertical milling head
±30°
±30°
Distance from spindle nose to worktable surface
35-435mm
35-435mm
Distance from spindle axis to column guideway
285mm
285mm
Travels
Longitudinal travel (X axis)
820mm
1000mm
Cross travel (Y axis)
300mm
380mm
Vertical travel (Z axis)
400mm
400mm
Spindle
Spindle taper
7:24; ISO40
7:24; ISO40
Spindle speed range
35-1500rpm
35-1500rpm
Spindle speed steps
12 steps
12 steps
Main motor power
3kW
3kW
Spindle travel
70mm
70mm
Spindle bore
17.5mm
17.5mm
Feed
Longitudinal feed speed (X axis)
30-830mm/min
30-830mm/min
Cross feed speed(Y axis)
30-830mm/min
30-830mm/min
Vertical feed speed (Z axis)
23-625mm/min
23-625mm/min
Rapid feed (X/Y/Z)
1335/1335/1000mm/min
1335/1335/1000mm/min
Others
Machine size (L×W×H)
1820x1680x1810mm
1820x1680x1810mm
Net weight
1600kg
1650kg
Equipments
Item 01
Descriptions
01.01
Draw bar M16x430
01.02
Lifting crank
01.03
Milling chuck
(
8pcs 4,5,6,8,10,12,14,16)
01.04
Reducing sleeve ISO40/MT4
01.05
Working lamp
01.06
Coolant system
01.07
Central lubrication
01.08
Double-ended wrench
01.09
Inner hexagon spanner
01.10
Operator manual
Optionals
Item 02
Descriptions
02.01
3-aixs Digital Read Out
02.02
Spindle cover
02.03
Worktable cover
02.04
Hang up panel
02.05
Dividing head
02.06
Rotary table
02.07
Machine vise
02.08
Milling chuck (ISO40) 15pcs
02.09
Clamping kit
02.10
Widen the work table to 320mm
Features
Massive machine frame with very rigid knee slide;
Powerful gear-driven head for heavy cutting;
Head tilts
±30° from left to right;
Automatic table feed and rapid feed on X/Y/Z axis;
Compulsory lubrication of head for precision cutting;
Work table and guides are hardened and ground for long service life;
Applications
FORTUNE PACIFIC Single Column Vertical Knee type Elevator Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments.
Milling Machine precision parameters
General tolerances include: +/-.005" for local tolerances across most geometries, +/-.010" for plastics with variation depending on the size of the part, 0.030" minimum wall thickness for metals, and 0.060" minimum wall thickness for plastics.[32]
Vertical Milling Machine
The milling machine in which the spindle axis is perpendicular to the table is called vertical milling machine.
Knee-Type Milling Machine
The milling machine which has a knee like projection at the middle is called knee-type milling machine. It is characterised by a vertical adjustable work table resting on a saddle supported by a knee.
Knee mill or knee-and-column mill
refers to any milling machine whose x-y table rides up and down the column on a vertically adjustable knee. This includes Bridgeports.
Elevator milling machine
There are universal, horizontal and vertical, etc., mainly used for processing small and medium-sized parts, the most widely used.
Single-column milling machine
The former horizontal milling head can be moved along the column guide rail, and the table can be fed longitudinally;
1. Draw bar;
2. Milling chuck;
3. Cutter arbor;
4. Double-ended wrench;
5. Inner hexagon spanner;
1. Dividing head;
2. Rotary table;
3. Machine vice;
4. Digital Readout (DRO);

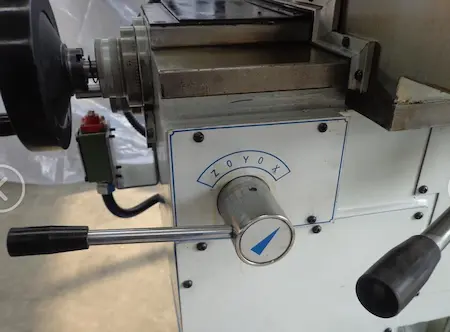

Features
Massive machine frame with very rigid knee slide;
Powerful gear-driven head for heavy cutting;
Head tilts
±30° from left to right;
Automatic table feed and rapid feed on X/Y/Z axis;
Compulsory lubrication of head for precision cutting;
Work table and guides are hardened and ground for long service life;
