UHM36 Over Arm Universal Knee Milling Machine
  • UHM36 Over Arm Universal Knee Milling Machine
  • UHM36 Over Arm Universal Knee Milling Machine
  • UHM36 Over Arm Universal Knee Milling Machine
  • UHM36 Over Arm Universal Knee Milling Machine
  • UHM36 Over Arm Universal Knee Milling Machine

UHM36 Over Arm Universal Knee Milling Machine

UHM36 Over Arm Universal Knee Milling Machine mainly used for processing small and medium-sized parts, the most widely used. FORTUNE PACIFIC Single-column milling machine and single-arm milling machine.
  • UHM36 UHM36C UHM36CL Over Arm Universal Knee Milling MachineDownload
INQUIRY
Description
Standards
Optionals
Features
Machine specifications
Items UHM36 UHM36C UHM36CL
Working area
Worktable size (L×W) 1325x360mm 1325x360mm 1600x360mm
T slot (Width x No. x pitch) 18x3x70mm 18x3x70mm 18x3x70mm
Max. load of table 500kg 500kg 500kg
Table rotation optional: ±45° optional: ±45° no
Distance from horizontal spindle center to worktable surface 20-470mm 20-470mm   20-470mm
Travels
Worktable travel (X) 750mm 1100mm 1300mm
Worktable travel (Y) 320mm
（with DRO:290mm）		 320mm
（with DRO:290mm）		 320mm
（with DRO:290mm）
Worktable travel (Z) 450mm 450mm 450mm
Spindle
Horizontal spindle speed 12 steps;
60-1800rpm		 12 steps;
60-1800rpm		 12 steps;
60-1800rpm
Spindle taper 7:24, ISO50 7:24, ISO50 7:24, ISO50
Motor power 5.5kW 5.5kW 5.5kW
Feed
Rapid feed (X/Y/Z) 1200/800/600mm/min 1200/800/600mm/min 1200/800/600mm/min
Feed range (X) 30-750mm/min 30-830mm/min 30-830mm/min
Feed range (Y) 20-500mm/min 20-500mm/min 20-500mm/min
Feed range (Z) 15-375mm/min 15-375mm/min 15-375mm/min
Others
Machine size (L×W×H) 2245x2100x1870mm 2245x2100x1870mm 2520x2100x1870mm
Net weight 2450kg 2500kg 2550kg

Equipments
Item 01 Descriptions
01.01 Draw bar
01.02 Lifting crank
01.03 Horizontal arbor assembly;
01.04 Working lamp
01.05 Coolant system
01.06 Central lubrication
01.07 Double-ended wrench
01.08 Inner hexagon spanner
01.09 Vertical milling head(ISO40)
01.10 Operator manual

Optionals
Item 02 Descriptions

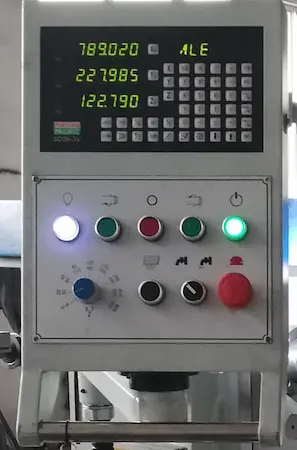

02.01 3-aixs Digital Read Out Y axis travel will be 20-30mm short after installed DRO
02.02 Work table rotary±45°(not equipped on UHM36CL)
02.03 Hang up panel(Aluminum)
02.04 Dividing head
02.05 Rotary table
02.06 Machine vise
02.07 Milling chuck (ISO40)
02.08 Clamping kits

Features
  • Massive machine frame with very rigid knee slide;
  • Powerful gear-driven head for heavy cutting;
  • Driven by AC servo motor to achieve automatic table feed and rapid feed on X, Y and Z axes;
  • Hardened and ground table for precision clamping and heavy load;
  • Worktable swivels ±45° on the horizontal plane is optional;
Introduction of Milling (machining)
Milling is the machining process of using rotary cutters to remove material from a workpiece by advancing (or feeding) the cutter into the workpiece at a certain direction. The cutter may also be held at an angle relative to the axis of the tool. Milling covers a wide variety of different operations and machines, on scales from small individual parts to large, heavy-duty gang milling operations. It is one of the most commonly used processes for machining custom parts to precise tolerances.
Types of Milling Machines
Knee-Type milling machinesemploy a vertical workspace supported by a knee, which is an adjustable vertical casting. The knee supports a saddle and can be adjusted to allow for a customizable workspace.
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine
Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine is a horizontal beam present at the top face of the column. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may be a single casting which slides on the dovetail ways present on the top face of the column.
The overarm is used to fastened arbor support. Over Arm / Overhanging Arm of Heavy-duty Horizontal Milling Machine may consist of one or two cylindrical bars which slide through the holes in the column.
Equipments
Item 01 Descriptions
01.01 Draw bar
01.02 Lifting crank
01.03 Horizontal arbor assembly;
01.04 Working lamp
01.05 Coolant system
01.06 Central lubrication
01.07 Double-ended wrench
01.08 Inner hexagon spanner
01.09 Vertical milling head(ISO40)
01.10 Operator manual
Optionals
Item 02 Descriptions
02.01 3-aixs Digital Read Out Y axis travel will be 20-30mm short after installed DRO
02.02 Work table rotary±45°(not equipped on UHM36CL)
02.03 Hang up panel(Aluminum)
02.04 Dividing head
02.05 Rotary table
02.06 Machine vise
02.07 Milling chuck (ISO40)
02.08 Clamping kits

Features
  • Massive machine frame with very rigid knee slide;
  • Powerful gear-driven head for heavy cutting;
  • Driven by AC servo motor to achieve automatic table feed and rapid feed on X, Y and Z axes;
  • Hardened and ground table for precision clamping and heavy load;
  • Worktable swivels ±45° on the horizontal plane is optional;
