Brief Parameters
Spindle diameter: Φ110mm
Worktable size: 1250X1400mm
Worktable travel (X): 1800mm
Headstock vertical travel (Y): 1600mm
Worktable longitudinal travel (Z): 1400mm
Spindle axial travel (W): 500mm
Main specification
| Model |
TK110B-4P |
Units |
| Spindle head |
Boring spindle diameter |
110 |
mm |
| Spindle taper |
7:24 ISO 50 |
- |
| Tool shak |
BT50 |
- |
| Pull stud |
P50T-I |
- |
| Spindle speed |
10-1500 |
r/min |
| Main motor power |
15 |
kW |
| Spindle max torque |
1029 |
Nm |
| Min distance from spindle center to table surface |
0 |
mm |
| Spindle max drilling hole diameter |
65 |
mm |
| Spindle max boring hole diameter |
300 |
mm |
| Table |
Table dimension |
1250×1400 |
mm |
| Max loading capacity |
5000 |
kg |
| Machine travel |
Table cross travel X |
1800 |
mm |
| Spindle head vertical travel Y |
1600 |
mm |
| Table longitude travel Z |
1400 |
mm |
| Spindle axial travel W |
500 |
mm |
| Feed speed range |
X/Y/Z |
2.5-5000 |
mm/min |
| W |
2.5-3000 |
|
| B |
0.003-1 |
r/min |
| Rapid |
X/Y/Z |
5000 |
mm/min |
| W |
3000 |
mm/min |
| B |
2 |
r/min |
| Positioning accuracy |
X/Y/Z |
0.018 |
mm |
| W |
0.025 |
mm |
| B |
8 |
″ |
| Repeatability |
X/Y/Z |
0.012 |
mm |
| W |
0.020 |
mm |
| B |
6 |
″ |
| Overall power |
-- |
65 |
kVA |
| Machine dimension |
L×W×H (About) |
6530x4800x4400 |
mm |
| Machine weight |
Net weight about |
20000 |
kg |

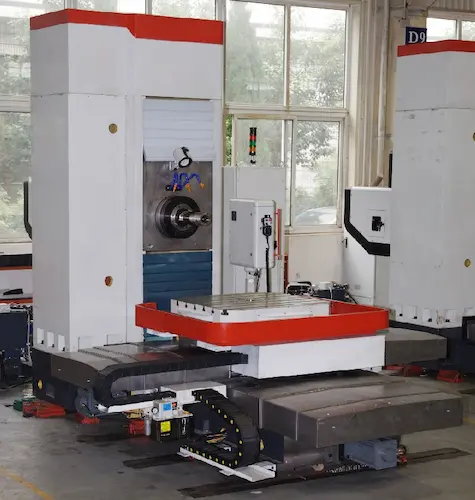

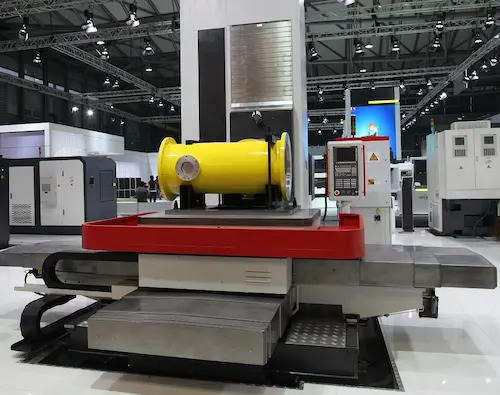

TK110B-4P CNC Horizontal Boring and Milling Machine
1. CNC horizontal boring and milling machine TK110B-4P adopts the current advanced optical, mechanical, electrical, pneumatic, hydraulic and other new technologies to design and manufacture. Use FANUC 0i CNC system to realize four-axis simultaneous control, with excellent performance, wide processing range and high production efficiency.
2. TK110B-4P is overall bed table layout with very good rigidity, the zero position of the spindle extends into the worktable, which significantly improves the rigidity and machining accuracy of the spindle; the fixed column has no column movement error and column overturning, which is beneficial to improve workpiece processing accuracy.
3. Drilling, reaming, boring, groove cutting and plane milling can be completed by one time clamping; bevel, frame plane, large hole end face, two-dimensional, three-dimensional curved surface and internal and external threads can be milled by contour control method.
4. The machine t has the advantages of good rigidity, high precision, convenient operation, safety, reliability and beautiful appearance, is engineering machinery, rolling stock, mining equipment, large motors, water turbines, steam turbines, ships, iron and steel, military, nuclear power, environmental protection and other machinery processing equipment preferred processing areas.
Main structure features

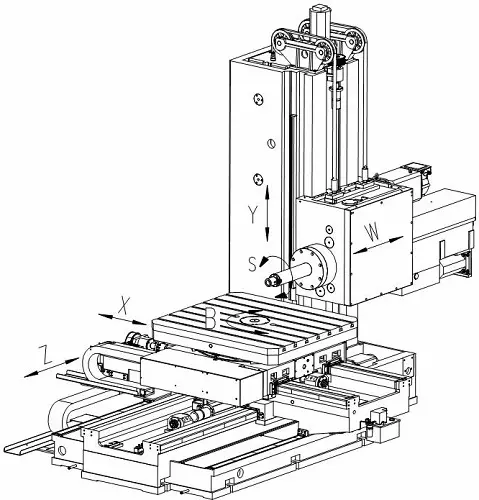

Machine is whole bed with fixed column, hanging side spindle head and cross sliding table structure. Spindle rotation is main movement. Layout as follows
X-- Table cross movement;
Y--Vertical travel of spindle head;
Z--Table longitude movement;
W--Boring spindle axial movement;
B--Table rotation;
Protection method
| No |
Function |
| 1 |
Protection of lubricating oil shortage |
| 2 |
Spindle drive failure |
| 3 |
Spindle system overload |
| 4 |
Interlock protection between spindle automatic tool unloader and spindle starting |
| 5 |
Limit protection |
| 6 |
Feed drive failure |
| 7 |
Feed overload |
Main purchase parts
| Name |
Manufacturer |
Remarks |
| Spindle bearing |
NSK |
|
| Ball screw rod |
Chinese famous brand |
|
| Ball screw rod bearing |
NSK |
|
| Roller bearing |
SCHNEEBERGER |
|
| Main hydraulic units |
Chinese famous brand |
|
| Central lubrication station |
Chinese famous brand |
|
| Pneumatic system |
SMC |
|
| Hydraulic station |
Chinese famous brand |
|
| Chip conveyor |
Chinese famous brand |
|
| Liner grating scales |
Heidenhain |
|
| Circular grating scales |
Heidenhain |
|
| CNC system and servo motor |
FANUC 0i |
|
Option function and accessories
Option accessories
| Optional items |
User selection result
(Tick √ in the option bar) |
| 1. Table increased to 1400×1600mm (Z=1300) |
|
| 2. Semi-protection for table |
|
| 3. ATC 40tools |
|
| 4. CTS 2MPa |
|
| 5. Spindle support sleeve (L=300) |
|
| 6.External coolant and chip conveyor |
|
| 7.FANUC 0i system αi series (spindle 2000rpm) |
|
| 8.SIEMENS 828D system (spindle 2000rpm) |
|
ATC (Optional)
| Name |
Specification |
| ATC capacity |
40 |
| Tool choose method |
Accotding to ATC sequence No. |
| Tool max diameter/vicninty empty mm |
125/250 |
| Max length mm |
400 |
| Max weight of tool kg |
25 |
| Tool change time (point to point)s |
20 |
