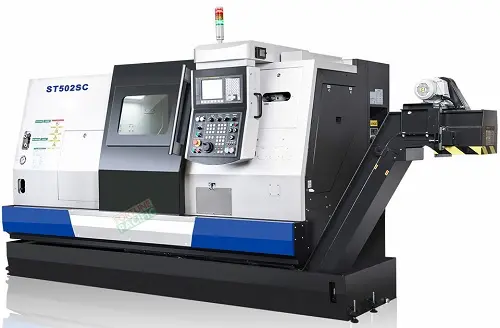

ST502SC Slant Inclined Bed CNC Lathe
  • ST502SC Slant Inclined Bed CNC Lathe
  • ST502SC Slant Inclined Bed CNC Lathe
  • ST502SC Slant Inclined Bed CNC Lathe
  • ST502SC Slant Inclined Bed CNC Lathe
  • ST502SC Slant Inclined Bed CNC Lathe

ST502SC Slant Inclined Bed CNC Lathe

ST502SC Slant Inclined Bed lathe can be processed inside and outside the cylindrical surface, conical surface, stepped surface, groove, spherical and other various rotary surface, you can process a variety of male and female thread inside and outside.
  • ST502SC Slant Inclined Bed CNC LatheDownload
INQUIRY
Machine specifications
Item ST502SC
Capability
Max. swing over bed Φ600mm(23.6’’)
Max. swing over saddle Φ450mm(17.7’’)
Max. turning diameter Φ500mm(19.7’’)
Max. machining length 500mm(19.7’’)
Bar capacity Φ51mm(2.0’’
(when equipped with 10’’ hydraulic hollow chuck)
Spindle
Spindle motor output power 11/15Kw(inverter)
Spindle nose A2-6
Max. spindle speed 3000rpm
Spindle bore diameter Φ65mm(2.56’’)
Chuck size 10” inch (Hydraulic solid)
X/Z axis travel
X-axis travel 295mm(11.6’’)
Z-axis travel 600mm(23.6’’)
Rapid traverse of X-axis 12m/min(472 IPM)
Rapid traverse of Z-axis 16m/min(630 IPM)
Turret
Number of  tool 8
Turing tool size 25x25mm
Max. boring tool diameter Φ40mm
Tailstock
Hydraulic tailstock center MT5(live center)
Quill diameter 100mm
Quill travel 100mm
Accuracy
Positioning accuracy (X/Z-axis)      0.010/0.012mm
Repeatability (X/Z-axis) 0.005/0.007mm
Others 
Power capacity 25 kVA
Machine dimension (L x W x H) 4250x1880x1950mm
Net weight 4300kg

Equipments
Item 01 Descriptions
01.01 FANUC Oi TF
01.02 3000rpm belt drive spindle (Frequency conversion motor)
01.03 8 position hydraulic turret (refer to follow turret information)
01.04 10’’ solid hydraulic chuck with 1 set soft jaw
01.05 Solid hydraulic cylinder
01.06 Hydraulic tailstock
01.07 Hydraulic system
01.08 Air conditioner of electrical cabinet
01.09 Auto chip conveyer & chip chart
01.10 Auto oil lubrication system
01.11 Tri-color light
01.12 Air gun
01.13 Door lock switch
01.14 Lighting lamp
01.15 Full enclosure splash guard
01.16 Telescopic covers

Optionals
Item 02 Descriptions Note
02.01 SIEMENS 828D 240
02.02 Shop turn
02.03 15/18.5KW spindle motor
02.04 FANUCβservo spindle motor
02.05 FANUCβ15/18.5kw servo spindle motor
02.06 FANUC 0I TF 1 with β servo spindle motor
02.07 FANUC 0I TF 1 with α servo spindle motor
02.08 Manual guide 0I
02.09 Manual guide I for FANUC TF1
02.10 DATA SERVE 2GB for FANUC TF1
02.11 Tool setter RENISHAW Manual plug type
02.12 Tool setter RENISHAW Auto swing type
02.13 Auto parts catcher Swing type
02.14 M30 auto power off
02.15 Scraping chip conveyor for aluminums cutting
02.16 Magnetic chip conveyor
02.17 THK ball screw
02.18 Oil mister collector
02.19 Auto-door (pneumatic control)
02.20 2 year FANUC warranty
02.21 2 year Siemens warranty
02.22 CE standard
02.23 380V 50HZ/415V 50 HZ /220V 60 HZ
02.24 Transformer
02.25 Voltage stabilizer
02.26 Bar feeder interface
02.27 Auto bar feeder 26mm diameter, 3000mm length
02.28 Auto bar feeder 65mm diameter, 1500mm length, DH65L
02.29 Auto bar feeder 65mm diameter, 1250mm length, DH65
02.30 Hydraulic spring clamping tail stock Tail stock body clamp by hydraulic spring
02.31 Linear scale X/Z axis
02.32 8 position servo turret, 25X25, 80mm center height LioShing,
02.33 12 position servo turret, 25X25, 100mm center height LioShing,
02.34 12 position servo turret, 20X20, 80mm center height LioShing,
02.35 12 position hydraulic turret, 20X20, 80mm center height LioShing, working range change
02.36 12 position hydraulic turret, 25X25, 100mm center height LioShing, working range change
02.37
02.38 Hydraulic steady rest (20—120mm)
02.39 Hydraulic steady rest (20—165mm)
02.40 Hydraulic steady rest (50—200mm)
02.41 Manual open type steady rest (50—200mm)
02.42 10” hollow chuck
02.43 10” hollow cylinder
02.44 12” solid chuck
02.45 12” solid cylinder
02.46 12” hollow chuck
02.47 12” hollow cylinder
02.48 Soft jaw of 10” chuck
02.49 Hard jaw of 10” chuck
02.50 Soft jaw of 12” chuck
02.51 Hard jaw of 12” chuck
02.52 Manual 10” chuck Change hydraulic chuck to manual chuck
02.53 Manual 12” chuck Change hydraulic chuck to manual chuck
02.54 Spindle bearing FAG instead of NSK, 4000rpm, 65/51mm
02.55 A2-8 spindle bore 92mm, bar capacity 74mm, 2800rpm Need apply 10” chuck & cylinder, not include chuck & cylinder
02.56 A2-8 spindle bore 106mm, bar capacity 90mm, 2500rpm Need apply 12” chuck & cylinder, not include chuck & cylinder
02.57 A2-8 spindle bore 106mm, bar capacity 92mm, 2500rpm Including bigger 12” chuck & cylinder
02.58 ZF gear box Need the bigger spindle bore
02.59 ZF gear box & 15/18.5KW FANNUC servo βspindle motor, A2-8 spindle, spindle bore 106mm, bar capacity 90mm, 2000rpm Including 12” chuck & cylinder, P2091
02.60 ZF gear box & 15/18.5KW FANNUC servo βspindle motor, A2-8 spindle, spindle bore 106mm, bar capacity 92mm, 2000rpm Including bigger 12” chuck & cylinder
02.61 Air conditioner of electrical cabinet
02.62 Proximity switch
02.63 Electric switch for door
02.64 Coolant tank coolant level sensor
02.65 Remove chip conveyer
02.66 CNC controller book manuals
02.67 Left side chip conveyer
02.68 Water gun Change backside to right side
02.69 MPG
02.70 High pressure coolant 5MPa through turret Not include the U drilling tool holder
02.71 High pressure coolant 1MPa Not include the U drilling tool holder
02.72 High pressure coolant 2MPa
02.73 Two stage hydraulic pressure valve

Futures
ST502SC CNC horizontal Slant Inclined Bed lathe is for the bushing parts of the turning of the development of small size CNC lathes. Can be processed inside and outside the cylindrical surface, conical surface, stepped surface, groove, spherical and other various rotary surface, you can process a variety of male and female thread inside and outside. To adapt to the small batch and single production,  can also be used for complex parts of mass production, which is widely used in bearings manufacture.

Construction
Integral
Machine tool for the machine, electricity, liquid integrated layout, 45 ° overall inclined bed, with a compact structure, high rigidity, smooth chip, easy to operate, etc.; rail type for the rolling guide, drive parts using high-speed silent ball screw, With fast speed, less heat, high positioning accuracy of the advantages of machine tools for the whole closed protection, automatic chip removal, automatic lubrication, automatic cooling.
Bed
The whole resin sand and gray cast iron bed, the casting structure by the finite element analysis and optimization, casting by the second aging treatment, with high rigidity and high stability; finishing high precision gantry machining center processing, high geometric accuracy ; Inclined bed layout, with high rigidity, compact structure, smooth chip, easy to operate the advantages of bed guide rail for the rolling guide, the friction coefficient is small, moving fast, high positioning accuracy.
FANUC 0i TF controller specification
● Standard○ Optional X N/A
Specification 0I-TF Plus
Type 1 Type 5
1 Controlled axis Controlled axes   4 4
2 Axis control by PMC
3 Torque control
4 Inch/metric conversion
5 Stored limit check before move
6 Unexpected disturbance torque detection function
7 Position switch
8 Operation DNC operation with memory card
9 Handle interruption
10 Manual handle retrace
11 Interpolation functions Nano interpolation
12 Linear interpolation
13 Circular interpolation
14 Helical interpolation   X
15 Thread cutting, synchronous cutting
16 Thread cutting retract
17 Continuous threading
18 High-speed skip Input signal is 8 points.
19 2nd reference position return G30
20 Feed function AI contour control I
21 AI contour control II   X
22 Rapid traverse block overlap
23 Program input Optional block skip 9 pieces
24 Absolute/incremental programming Combined use in the same block
25 Diameter/Radius programming
26 Automatic coordinate system setting
27 Workpiece coordinate system G52 - G59
28 Chamfering/Corner R
29 Custom macro
30 Addition of custom macro common variables #100 - #199, #500 - #999
31 Interruption type custom macro
32 Canned cycle
33 Multiple repetitive cycles
34 Multiple repetitive cycles II Pocket profile
35 Canned cycle for drilling
36 Coordinate system shift
37 Direct input of coordinate system shift
38 Pattern data input
39 Operation
Guidance Function
Manual Guide i   X
40 Manual Guide 0i
41 Auxiliary/ Spindle speed function Constant surface speed control
42 Rigid tap
43 Arbitrary speed threading
44   Tool offset pairs 128-pairs
45 Tool offset pairs 200-pairs X
46 Tool radius/Tool nose radius compensation
47 Tool geometry/wear compensation
48 Automatic tool offset
49 Direct input of offset value measured B
50 Tool life management
51 Accuracy compensation function Backlash compensation for each rapid traverse and cutting feed
52 Stored pitch error compensation total value input
53 Editing operation (Specify total of part program storage size of each path.)
Number of registerable programs
2Mbyte
expansion 1 : Max. 1000 programs
54 Playback
55 Data input/ output Fast data server   X
56 External data input
57 Memory card input/output
58 USB memory input/output
59 Automatic data backup
60 Interface function Embedded Ethernet
61 Fast Ethernet
62 Others Display unit 10.4" color LCD

63 Robot interface Robot interface with PMC I/O module
64 Robot interface with PROFIBUS-DP/PROFINET-DP
Siemens controller specification
● Standard  ○ Optional  X N/A
No. Item Spec. S828D
SW24x SW26x SW28x
1 Controlled axis Controlled axes 2 axes X,Z X,Z X,Z
2 Additional controlled axes   5 6+2 10+2
3 Least command increment 0.001mm (0.0001 inch)
4 Least input increment 0.001mm (0.0001 inch)
5 Travel to fixed stop with Force Control
6 Interpolation & Feed Function Reference point return G75 FP=1
7 2nd reference point return G75 FP=2
8 Inverse time feedrate G93
9 Helical interpolation
10 Polynomial interpolation   X X X
11 Spline interpolation (A, B and C splines)
12 Separate path feedrate for roundings and chamfers
13 Acceleration with Jerk limitation
14 Compressor for 3-axis machining COMPCAD   X X X
15 Temperature compensation
16 Look Ahead, recorded part program blocks: Turning 1 1 1
17
18 Look Ahead, IPO blocks, buffered: Turning 1 1 1
19
20 Cartesian point-to-point (PTP) travel
21 TRANSMIT/cylinder surface transformation
22 Spindle Function Tapping with compensating chuck/rigid tapping
23 Tool Function Tool radius compensations in plane
24 Number of tools/cutting edges in tool list   128/256 256/512 768/1536
25 Tool length compensation
26 Operation with tool management
27 Tool list
28 Replacement tools for tool management
29 Monitoring of tool life and workpiece count
30 Manual measurement of tool offset
31 Magazine list
32 Programming & Editing Function Number of levels for skip blocks 2
33 Number of levels for skip blocks 10
34 Program/workpiece management On additional plug-in CF card
35 On USB storage medium (e.g. disk drive, USB stick)
36 On network drive
37 Program editor Programming support for cycles program(Program Guide)
38 CNC editor with editing functions: select, copy, delete
39 Programming graphics/free contour input (contour calculator)
40 ShopTurn Machining step programming
41 Technology cycles for drilling/milling
42 Pocket milling free contour and islands stock removal cycle
43 Residual material detection
44 Access protection for cycles
45 Programming support can be extended, e.g. customer cycles
46 2D simulation
47 3D simulation, finished part
48 OTHERS FUNCTIONS
(Operation, setting & Display, etc)
Switchover: inch/metric
49 Manual measurement of zero/work offset
50 Automatic tool/workpiece measurement
51 Reference point approach, automatic/via CNC program
52 Execution from USB or CF card interface on operator panel front
53 Execution from network drive
54 10.4" color display
55 15.0" color display
56 Alarms and messages
57 Automatic measuring cycles
Ball screws
βiSc series AC servo motor, high-speed silent ball screw, flexible coupling directly connected, moving fast, positioning accuracy and repeat positioning accuracy; built-in absolute encoder, no cumulative error, no memory, no need to find a reference point, The location information is not lost after power is removed. Double nut and C3 level high accuracy ball screws.
Screw diameter x pitch: 32x8/40x10

C3 level 0.008mm/300mm
The ball screw adopts the pre-load process, which effectively reduces the back lash in the ball screw and helps reduce the heat transfer and friction. This improves the accuracy and strengthens the rigidity and heat deformation resistance.
