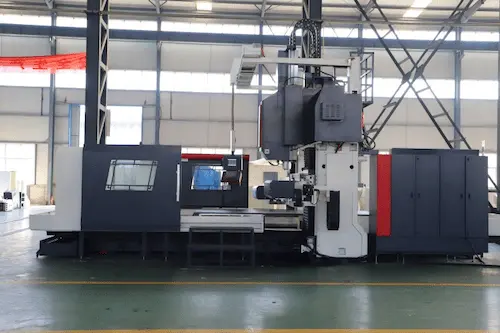

Features of PM1900 Plano Type Milling Machine
1. Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
2. The gantry construction is fully integrated into the machine frame for maximum rigidity.
3. The traverse height is adjustable, ensuring high rigidity even with flat workpiece.
4. Rigid guides with ground surfaces support the table across the entire travel to ensure constant high accuracy.
Machine specifications
| Item |
PM1900 CNC |
| Table size |
2500x1500mm |
3000x1500mm |
| Max table load |
10000kg |
12000kg |
| Table travel X |
2600mm |
3100mm |
| Table travel Y |
1900mm |
| Table travel Z |
900mm |
| Spindle nose to table surface |
150-1050mm |
| Distance between two column |
1900mm |
| Spindle speed range and driving method |
6000rpm
belt driving |
| Spindle taper |
BT50 |
| Spindle diameter |
155mm |
| Rapid traverse speed – X axis |
12000mm/min |
| Rapid traverse speed – Y axis |
12000mm/min |
| Rapid traverse speed – Z axis |
10000mm/min |
| Feed rate ( X / Y / Z axes) |
8000mm/min |
| Number of tool magazine--opt. |
24/opt.-32 |
| Tool magazine type |
Disc type |
| Controller |
Siemens 828D |
| Spindle motor power (straight/15 minutes) |
15/18.5kW |
| Positioning accuracy (JIS standard) |
±0.005/300mm |
| Repeatability Positioning accuracy (JIS standard) |
±0.003/1000mm |
| Net weight |
20000kg |
22000kg |
| Overall size |
6500x3440x4500mm |
7500x3440x4500mm |
