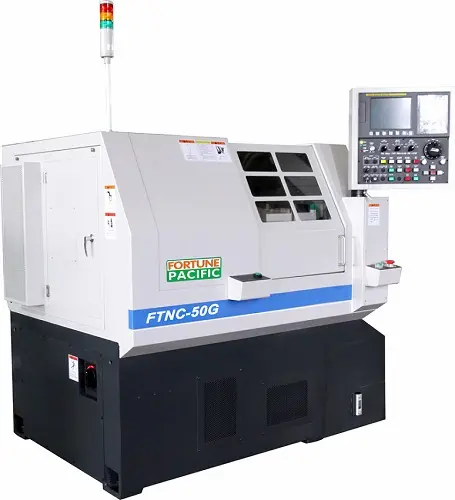

FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe
  • FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe
  • FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe
  • FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe
  • FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe
  • FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe

FTNC-50G FTNC-50GY Precision CNC Gang Tool Lathe

FTNC-50G(Y) Small Type Precision CNC Gang Tool Lathe is characterized by Φ30mm of spindle through hole diameter, optionally installed power chuck, cast iron lathe bed and Z axis double-V design.
  • FTNC-50G FTNC-50GY Small Type Precision CNC Gang Tool LatheDownload
INQUIRY
Description
Features
Specifications
Equipments
Machine specifications
Items FTNC-50G FTNC-50GY
Capacity
Max swing over bed Ø270 mm Ø270 mm
Max swing over cross slide Ø160 mm Ø160 mm
Max machining diameter Ø100 mm Ø100 mm
Max machining length 100 mm 100 mm
Spindle through hole diameter Ø30 mm Ø30 mm
Spindle
Spindle speed (Stepless) Max 6000 rpm Max 6000 rpm
Spindle motor power 3.7/5.5 kW 3.7/5.5 kW
Travel and rapid traverse
X axis travel 250 mm 250 mm
Z axis travel 250 mm 250 mm
X axis rapid traverse speed 15 m/min 15 m/min
Z axis rapid traverse speed 15 m/min 15 m/min
Turret
Tool type Gang tool Gang tool
Y axis
Max. speed - 6000
Motor power - 0.75
Y axis rapid traverse - 15
Y axis travel - 95
Others
Power source 8 kVA 8 kVA
Overall dimensions (L×W×H) 1670x1470x1650 mm 1670x1470x1650mm
Net weight 1500 kg 1540 kg

Equipment
Item 01 Descriptions
01.01 FANUC Oi TF
01.02 FANUC feed servo motor and spindle servo motor
01.03 Coolant system.
01.04 Centralized lubricant device
01.05 Working light
01.06 The shift fork type clamping device
01.07 Spindle spring chuck adapter
01.08 Spindle spring chuck
01.08 Gang tools holder
01.09 Tools and tool box;
01.10 Machine base plate

Optional
Item 02 Descriptions
02.01 Cs contouring control
02.02 Power chuck 5 inch
02.03 Hydraulic clamping device
02.04 Various tools and drilling holders
02.05 Spring chuck
02.06 Y axis drive power tool for FTNC-50GY
02.07 Spindle blowing device
02.08 High pressure internal cool device
02.09 High pressure blowing oil device
02.10 Tool post-blowing oil device
02.11 Clamping  testing device
02.12 Door switch testing device
02.13 Transformer

FTNC-50G(Y) Small Type Precision CNC Gang Tool Lathe is characterized by Φ30mm of spindle through hole diameter, optionally installed power chuck, cast iron lathe bed and Z axis double-V design. FTNC-50G is more suitable for applications in industries, such as optics, automobile, micromotor, bearing, etc. if equipped with precision pneumatic chuck and other special fixtures, it may have part deformation under control; better in high precision processing of part with thin-wall, like precision casting and cold pressing part.

Features
  • Dovetail sliding guide rail:
X axis guide rail adopts high quality cast iron with quenching, grinding and scraping treatment, which prolongs the precision retaining period of guide rail surface and keep stable precision for a long time.
  • Double–V shape sliding guide rail:
 Z-axis adopts double-V shape sliding guide rail which can meet rigid requirement and automatic machining with large working range.
  • Proper gang tool structure: The machine is equipped with proper gang tool structure and sufficient tool installation space. Precise machine tools for drilling, tapping, boring, milling and thread cutting can be installed in the tool post.
Selection of diverse automatic fixture unclamping & clamping device: Shift fork type clamping mechanism,  collet chuck clamping mode,Pneumatic rotary cylinder and precision pneumatic chuck are optional.

Y axis Drive Power Tool( for FTNC-50GY): In order to enhance machine processing, Y-axis drive power tool developed by our company enhances milling operation of machine tool. X and Y directions power tool can install two or three tools while common gang type lathe can only install one tool. Radial power tool feeds along Y-axis, which fulfills radial processing and hole machining, grooving, milling and special shape contour machining of workpiece face and the like three-axis linkage composite processing, also the power tools can rigid tapping, realizes tum-milling machining of gang tool type lathe.
  • Polygon power milling device: Polygon power milling device can realize radial polygon cutting, increase the production efficiency vastly.
  • High precision: The unique high-precision spindle, high acceleration servo motor and latest high-speed CNC system to reduce the cycle time. Exquisite scraping and grinding craftsmanship ensures most stable precision for many years. An NC order 0.1μM comes standard, smoother taper/R processing is possible.
Features
  • Dovetail sliding guide rail:
X axis guide rail adopts high quality cast iron with quenching, grinding and scraping treatment, which prolongs the precision retaining period of guide rail surface and keep stable precision for a long time.
  • Double–V shape sliding guide rail:
 Z-axis adopts double-V shape sliding guide rail which can meet rigid requirement and automatic machining with large working range.
  • Proper gang tool structure: The machine is equipped with proper gang tool structure and sufficient tool installation space. Precise machine tools for drilling, tapping, boring, milling and thread cutting can be installed in the tool post.
l Selection of diverse automatic fixture unclamping & clamping device: Shift fork type clamping mechanism,  collet chuck clamping mode,Pneumatic rotary cylinder and precision pneumatic chuck are optional.

l Y axis Drive Power Tool( for FTNC-50GY): In order to enhance machine processing, Y-axis drive power tool developed by our company enhances milling operation of machine tool. X and Y directions power tool can install two or three tools while common gang type lathe can only install one tool. Radial power tool feeds along Y-axis, which fulfills radial processing and hole machining, grooving, milling and special shape contour machining of workpiece face and the like three-axis linkage composite processing, also the power tools can rigid tapping, realizes tum-milling machining of gang tool type lathe.
  • Polygon power milling device: Polygon power milling device can realize radial polygon cutting, increase the production efficiency vastly.
  • High precision: The unique high-precision spindle, high acceleration servo motor and latest high-speed CNC system to reduce the cycle time. Exquisite scraping and grinding craftsmanship ensures most stable precision for many years. An NC order 0.1μM comes standard, smoother taper/R processing is possible.
Machine specifications
Items FTNC-50G FTNC-50GY
Capacity
Max swing over bed Ø270 mm Ø270 mm
Max swing over cross slide Ø160 mm Ø160 mm
Max machining diameter Ø100 mm Ø100 mm
Max machining length 100 mm 100 mm
Spindle through hole diameter Ø30 mm Ø30 mm
Spindle
Spindle speed (Stepless) Max 6000 rpm Max 6000 rpm
Spindle motor power 3.7/5.5 kW 3.7/5.5 kW
Travel and rapid traverse
X axis travel 250 mm 250 mm
Z axis travel 250 mm 250 mm
X axis rapid traverse speed 15 m/min 15 m/min
Z axis rapid traverse speed 15 m/min 15 m/min
Turret
Tool type Gang tool Gang tool
Y axis
Max. speed - 6000
Motor power - 0.75
Y axis rapid traverse - 15
Y axis travel - 95
Others
Power source 8 kVA 8 kVA
Overall dimensions (L×W×H) 1670x1470x1650 mm 1670x1470x1650mm
Net weight 1500 kg 1540 kg
Equipment
Item 01 Descriptions
01.01 FANUC Oi TF
01.02 FANUC feed servo motor and spindle servo motor
01.03 Coolant system.
01.04 Centralized lubricant device
01.05 Working light
01.06 The shift fork type clamping device
01.07 Spindle spring chuck adapter
01.08 Spindle spring chuck
01.08 Gang tools holder
01.09 Tools and tool box;
01.10 Machine base plate
