FRD40x7A Fast Radial Arm Drilling Machine

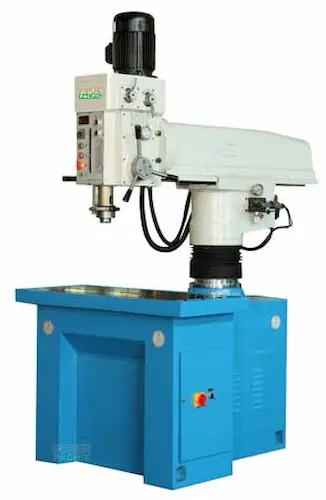

FRD40x7A Fast Radial Arm Drilling Machine Ram base adopts double linear guideway and makes front and back movement flexibly. Spindle box has wide speed range with auto drilling and tapping. Column and ram adopt hydraulic clamping.

FRD40x7A Fast Radial Arm Drilling MachineDownload

INQUIRY

PDF Format

Description

Features

Specifications

Technical Specifications of FRD40x7A Fast Radial Arm Drilling Machine

Model	Unit	FRD40x7A
Max. drilling capacity	mm	40 (1.6”)
Distance from spindle nose to worktable	mm	730 (29”)
Max travel of spindle	mm	200 (7.9”)
Ram travel	mm	500 (20”)
Spindle taper		MT-4
Spindle speeds range	rpm	38-1730; 12 steps
Spindle feed	mm/r	0.1-0.3; 3 steps
Dimension of worktable	mm	1000x380 (39X15”)
T-slot size	mm	3x18
Spindle motor power	kW	2.2/2.8
Elevating motor power	kW	1.5
Ram locking motor power	kW	0.75
Elevating locking motor power	kW	0.75
Net weight	kg	2800
Overall size	mm	2000x1200x2300

Features of FRD40x7A Fast Radial Arm Drilling Machine
1. Three-position operation worktable suitable for machining different workpiece.
2. Main worktable is casted with the base featuring good stability.
3. Subsidiary worktable makes up and down movement; tilting angle suitable for drilling various inclined holes.
4. Ram base adopts double linear guideway and makes front and back movement flexibly.
5. Spindle box has wide speed range with auto drilling and tapping.
6. Column and ram adopt hydraulic clamping, which is stable and reliable.

Features
1. Three-position operation worktable suitable for machining different workpiece.
2. Main worktable is casted with the base featuring good stability.
3. Subsidiary worktable makes up and down movement; tilting angle suitable for drilling various inclined holes.
4. Ram base adopts double linear guideway and makes front and back movement flexibly.
5. Spindle box has wide speed range with auto drilling and tapping.
6. Column and ram adopt hydraulic clamping, which is stable and reliable.

Technical Specifications of FRD40x7A Fast Radial Arm Drilling Machine

Model	Unit	FRD40x7A
Max. drilling capacity	mm	40 (1.6”)
Distance from spindle nose to worktable	mm	730 (29”)
Max travel of spindle	mm	200 (7.9”)
Ram travel	mm	500 (20”)
Spindle taper		MT-4
Spindle speeds range	rpm	38-1730; 12 steps
Spindle feed	mm/r	0.1-0.3; 3 steps
Dimension of worktable	mm	1000x380 (39X15”)
T-slot size	mm	3x18
Spindle motor power	kW	2.2/2.8
Elevating motor power	kW	1.5
Ram locking motor power	kW	0.75
Elevating locking motor power	kW	0.75
Net weight	kg	2800
Overall size	mm	2000x1200x2300
