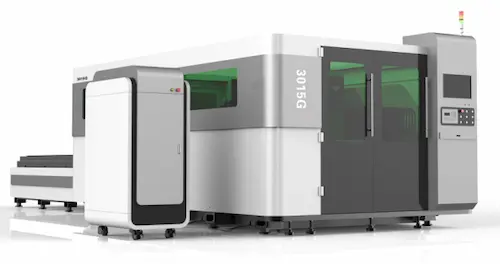

Technical Specifications of FL3015G Whole Cover Fiber Laser Cutting Machine
| Model |
Unit |
FL3015G |
| Laser power |
W |
1000W, 2000W, 3000W, 4000W, 6000W, 8000W (optional) |
| Working size |
mm |
3000x1500 |
| Repeated positioning precision |
mm |
±0.02 |
| Max. running speed |
m/min |
120 |
| Max. acceleration |
G |
1.5 |
| Voltage |
|
380V 50Hz/60Hz |
| Overall dimension |
mm |
8150x2825x2125 |
The Segmented Rectangular Tube Welded Bed
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed. It also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
