Inclined Slant Bed CNC Lathe Home > Turning CNC Lathe > Inclined Slant Bed CNC Lathe

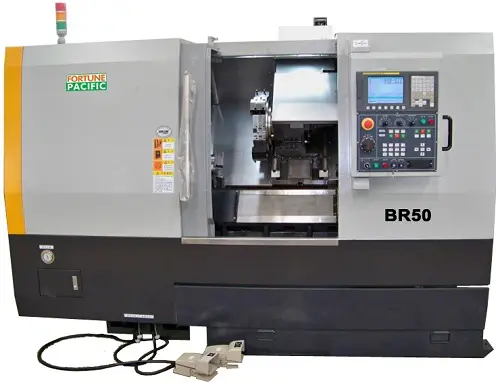

BR50 Slant Bed CNC Lathe
  • BR50 Slant Bed CNC Lathe
  • BR50 Slant Bed CNC Lathe
  • BR50 Slant Bed CNC Lathe

BR50 Slant Bed CNC Lathe

These series machines are high precision CNC machines with good performance-price ratio. The high grade cast iron bed, slant rails and box way guide-way. High precision cartridge type spindle are designed to damp vibration.
INQUIRY
Description
Features
Specifications
Equipments
Machine specifications
Items BR50
Machining capacity
Max. swing over bed Φ500 mm
Max. swing over slide Φ320 mm
Max. turning length 500 mm 1000 mm
Max. turning diameter Φ370 mm
Max. bar diameter Φ51 mm
Spindle
Spindle nose A2-6
Spindle through-hole diameter Φ62 mm
Spindle speed 60-2250 r/min
Main motor power 11/15 kW
Hydraulic chuck diameter 8 inch
Travel and rapid traverse
Travel of X axis 210 mm
Travel of Z axis 550 mm 1010 mm
Rapid traverse of X/Z axis 12 / 16 m/min
Tailstock
Diameter of tailstock quill Φ90 mm
Travel of tailstock quill 100 mm
Taper of tailstock center MT-5
Turret
No. of turret station 8（ or 12）
Turning tool size 25x25 mm
Boring tool size Φ40 mm
Accuracy
Position accuracy of X/Z axis X:0.010mm; Z: 0.010mm
Repeatable position X/Z axis X:0.005mm; Z: 0.005mm
Other
Slant angle 45°
Type guide ways Box way
Overall dimension 2850x1810x1850mm 3350x1810x1850 mm
Net weight 4500 kg 5300 kg

Equipments
Item 01 Descriptions
01.01 FANUC Oi TF
01.02 FANUC X/Z axis servo motor
01.03 CTB AC servo spindle motor
01.04 8’’ 3 jaw hollow hydraulic chuck
01.05 Hydraulic tailstock
01.06 8-station tool post
01.07 Coolant system.
01.08 Working light
01.09 Automatic lubrication system
01.10 Heat exchange for electric cabinet
01.11 Full enclosed splash guard
01.12 Installation damping pads

Optionals
Item 02 Descriptions
02.01 SIEMENS808D/ SIEMENS 828D or GSK980T CNC system
02.02 Chip conveyor
02.03 12-station tool post
02.04 FANUC AC servo spindle motor

Features
  • These series machines are high precision CNC machines with good performance-price ratio.
  • The high grade cast iron bed, slant rails and box way guide-way.
  • High precision cartridge type spindle are designed to damp vibration.
  • The multi-station turret changes tools in the nearest path..
  • This series lathe can be equipped with FANUC0i-TF(5), Siemens 828D or other control systems.
Features
  • These series machines are high precision CNC machines with good performance-price ratio.
  • The high grade cast iron bed, slant rails and box way guide-way.
  • High precision cartridge type spindle are designed to damp vibration.
  • The multi-station turret changes tools in the nearest path..
  • This series lathe can be equipped with FANUC0i-TF(5), Siemens 828D or other control systems.
Machine specifications
Items BR50
Machining capacity
Max. swing over bed Φ500 mm
Max. swing over slide Φ320 mm
Max. turning length 500 mm 1000 mm
Max. turning diameter Φ370 mm
Max. bar diameter Φ51 mm
Spindle
Spindle nose A2-6
Spindle through-hole diameter Φ62 mm
Spindle speed 60-2250 r/min
Main motor power 11/15 kW
Hydraulic chuck diameter 8 inch
Travel and rapid traverse
Travel of X axis 210 mm
Travel of Z axis 550 mm 1010 mm
Rapid traverse of X/Z axis 12 / 16 m/min
Tailstock
Diameter of tailstock quill Φ90 mm
Travel of tailstock quill 100 mm
Taper of tailstock center MT-5
Turret
No. of turret station 8（ or 12）
Turning tool size 25x25 mm
Boring tool size Φ40 mm
Accuracy
Position accuracy of X/Z axis X:0.010mm; Z: 0.010mm
Repeatable position X/Z axis X:0.005mm; Z: 0.005mm
Other
Slant angle 45°
Type guide ways Box way
Overall dimension 2850x1810x1850mm 3350x1810x1850 mm
Net weight 4500 kg 5300 kg
Equipments
Item 01 Descriptions
01.01 FANUC Oi TF
01.02 FANUC X/Z axis servo motor
01.03 CTB AC servo spindle motor
01.04 8’’ 3 jaw hollow hydraulic chuck
01.05 Hydraulic tailstock
01.06 8-station tool post
01.07 Coolant system.
01.08 Working light
01.09 Automatic lubrication system
01.10 Heat exchange for electric cabinet
01.11 Full enclosed splash guard
01.12 Installation damping pads
