Machine specifications
| Items |
BF80B |
| Capacity |
| Max swing over bed |
Ø800 mm |
| Max swing over cross slide |
Ø480 mm |
| Max machining diameter |
Ø740 mm |
| Distance between centers |
1000/1500/3000 mm |
| Max machining length |
760/1260/2760 mm |
| Bed width |
560 mm |
| Spindle |
| Spindle nose |
A1-11 |
| Spindle bore |
Φ105 mm |
| Range of spindle speed |
20-210/37-373/112-1120 r/min |
| Step of spindle speed |
3 steps |
| Spindle motor power |
11kW (Frequency inverter) |
| Travel and rapid traverse |
| X axis travel |
390 mm |
| Z axis travel |
760/1310/2810 mm |
| X axis rapid traverse speed |
6 m/min |
| Z axis rapid traverse speed |
7 m/min |
| Turret |
| Number of tool station |
4 |
| Tool cross section |
32x32 mm |
| Tailstock |
| Tailstock sleeve diameter |
Φ100 mm |
| Tailstock sleeve travel |
250 mm |
| Tailstock sleeve taper (manual) |
MT-5 |
| Others |
| Overall dimensions (L×W×H) |
1000mm:3500 ×1680×2000 mm
1500mm:4000 ×1680×2000 mm
2000mm: 5500 ×1680×2000 mm |
| Net weight |
5000/5300/6400 kg |
Equipment
| Item 01 |
Descriptions |
|
| 01.01 |
FANUC Oi TF |
|
| 01.02 |
FANUC motor of X/Z axis |
|
| 01.03 |
Inverter spindle motor |
|
| 01.04 |
3-Jaw manual chuck Ø 315mm |
|
| 01.05 |
Manual tailstock |
|
| 01.06 |
4-station electric tool post |
|
| 01.07 |
Coolant system. |
|
| 01.08 |
Lubrication system |
|
| 01.09 |
Working light |
|
| 01.10 |
Installation damping pads |
|
Optional
| Item 02 |
Descriptions |
|
| 02.01 |
SIEMENS or GSK CNC system |
|
| 02.02 |
Steady rest |
|
Features

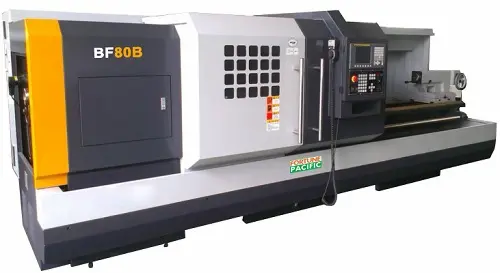

BF80B Series Turn CNC lathes have high grade cast iron bed, and hardened and precision ground ways. It is rigid with wide span of bed ways and long lasting accuracy. Controlled by FANUC or SIEMENS/ GSK. Capable of internal and external turning, taper turning, circular turning, facing, metric and inch threading and etc. Complete with 4-station power turret (standard) to satisfy different machining needs; with sliding doors to ensure safety production; with a centralized operator’s panel for ease of programming and operation. Suitable for small and medium sized batch production of multiple work, especially of complex and high precision work.
